3.36 BCOL4 [28H 71H] : back ground color setting
Function : this command sets background color.
Sequence : Type 2
Command :
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
BCOL4
2 BYTE
28H 71H
R
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
G
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
B
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
Bit Mode
1-2 BYTE
"0", "8"-"16"
In case it is set as “0”, RGB value is set as it
is.
ETX
1 BYTE
03H

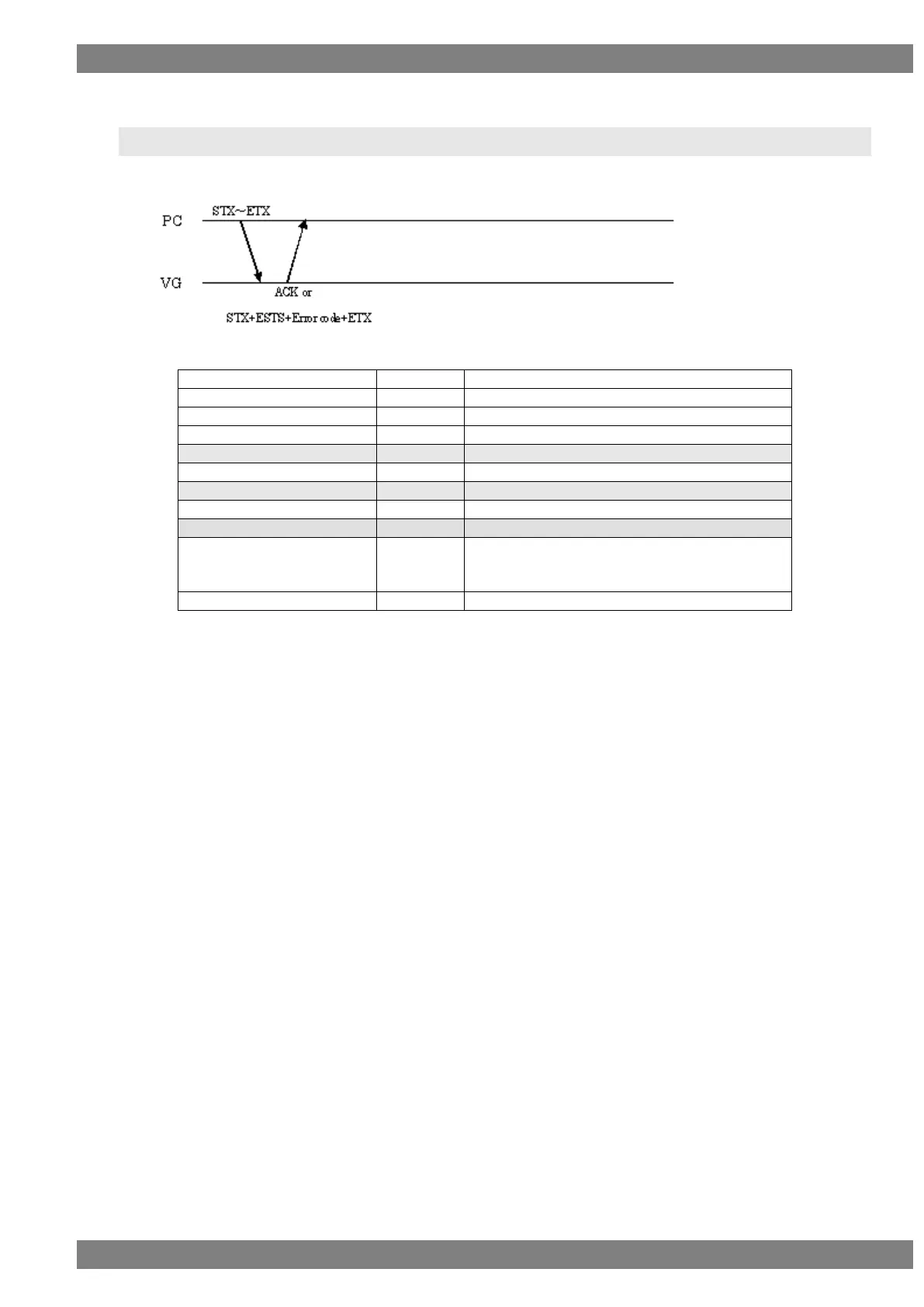

Fig 3-36-1
