5.19 G8PSET [E2H]: Dot drawing (color designation)
Function : This command draws dots on the color bar plane (8-bit plane). The coordinates
and color are designated by the parameters.
Sequence : Type 2
Parameter :
STX
1 byte
02H
G8PSET
1 byte
E2H
Coordinate X
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Coordinate Y
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Color
1 to 3 bytes
“0” to “255”
ETX
1 byte
03H

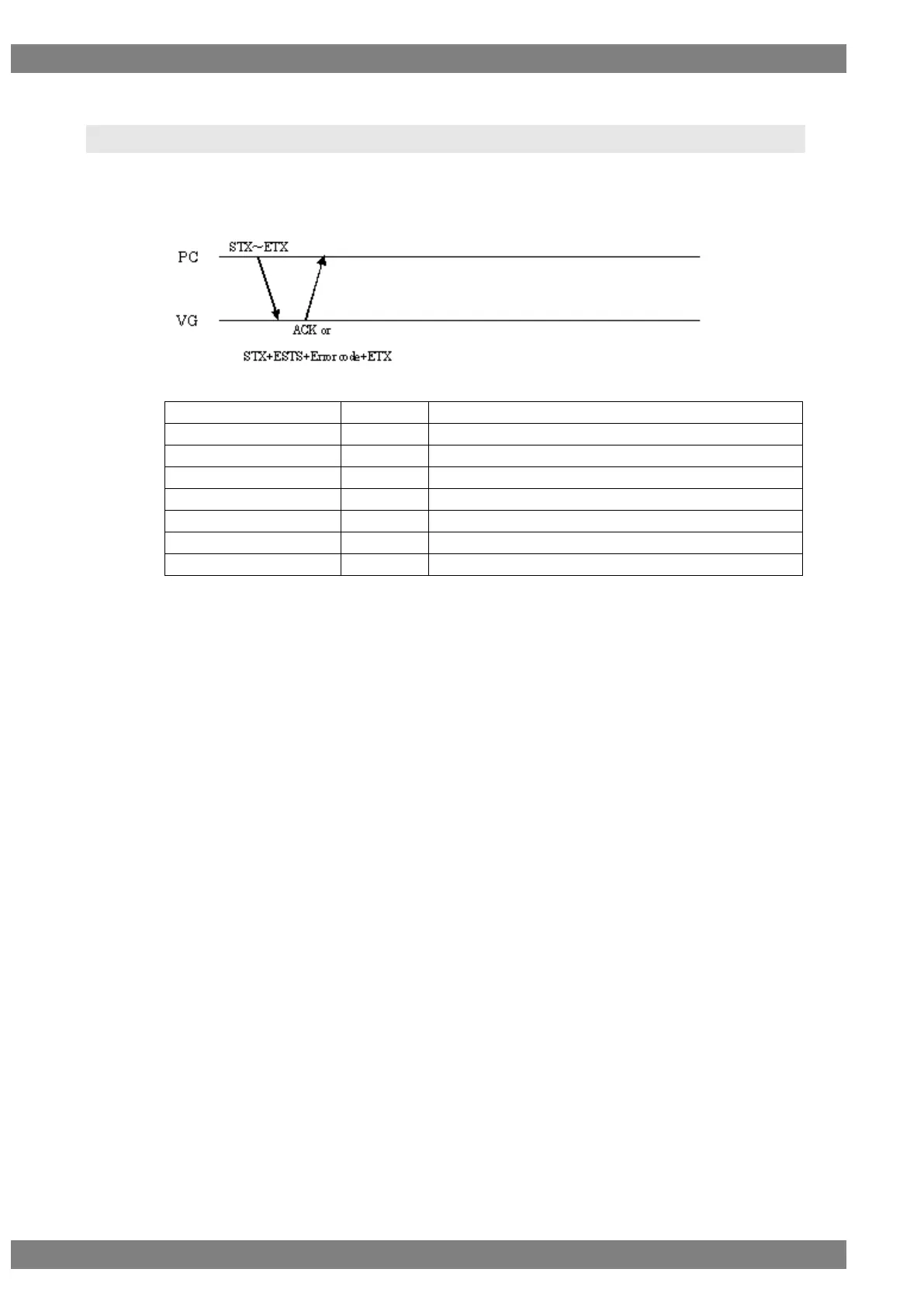

Fig. 5-19-1
