2.17 SWLF4 [20H 30H]: Window level flicker data
registration
Function: This command registers the window level flicker data of the designated
program. When the program number is 0, it writes the data into the buffer
RAM. When it is 9999, it writes the data into the command work RAM.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SWLF4
2 bytes
20H 30H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Window level flicker
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Number of data N
1 to 3 bytes
“1” to “16”
,
1 byte
2CH (Delimiter)
Bit mode
1 or 2 bytes
“8” to “16”
,
1 byte
2CH (Delimiter)
#1
Time
1 to 4 bytes
“1” to “9999” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Level-R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Level-G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Level-B
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
#N
Time
1 to 3 bytes
“1” to “9999” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Level-R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Level-G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Level-B
1 to 5 bytes
“0” to “65535”
ETX
1 byte
03H

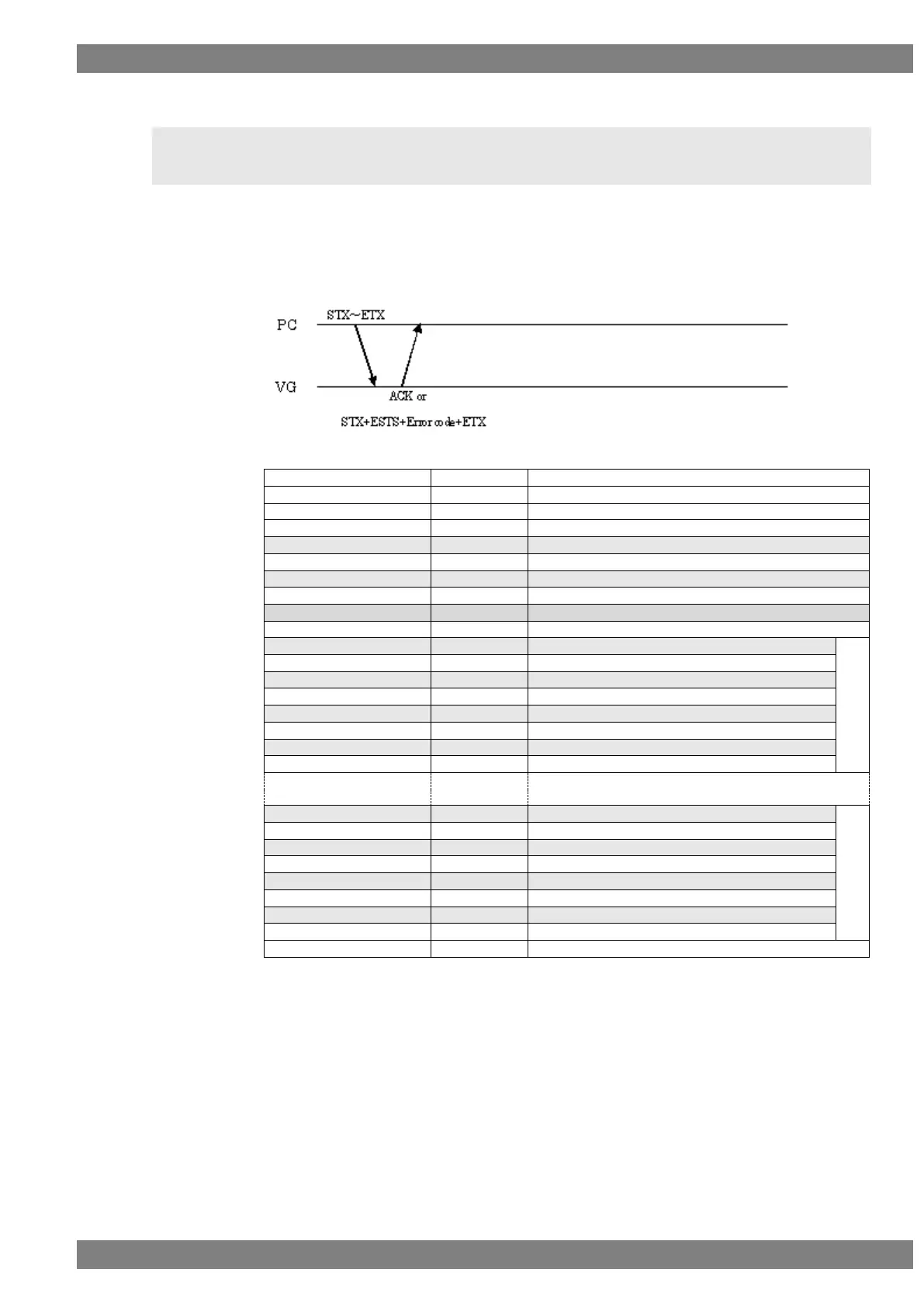

Fig. 2-17-1
