ASTRO VG-877 - EXSYNCP4 [24 H 33 H]: Separate Sync Polarity Switching

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
267
2.155 EXSYNCP4 [24H 33H]: Separate sync polarity
switching
Function: This command switches the polarity of each of the HS, VS and CS separate
sync signals.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
EXSYNCP4
2 bytes
24H 33H
HS
1 byte
“0” = Nega, “1” = Posi
,
1 byte
2CH (Delimiter)
VS
1 byte
“0” = Nega, “1” = Posi
,
1 byte
2CH (Delimiter)
CS
1 byte
“0” = Nega, “1” = Posi
ETX
1 byte
03H

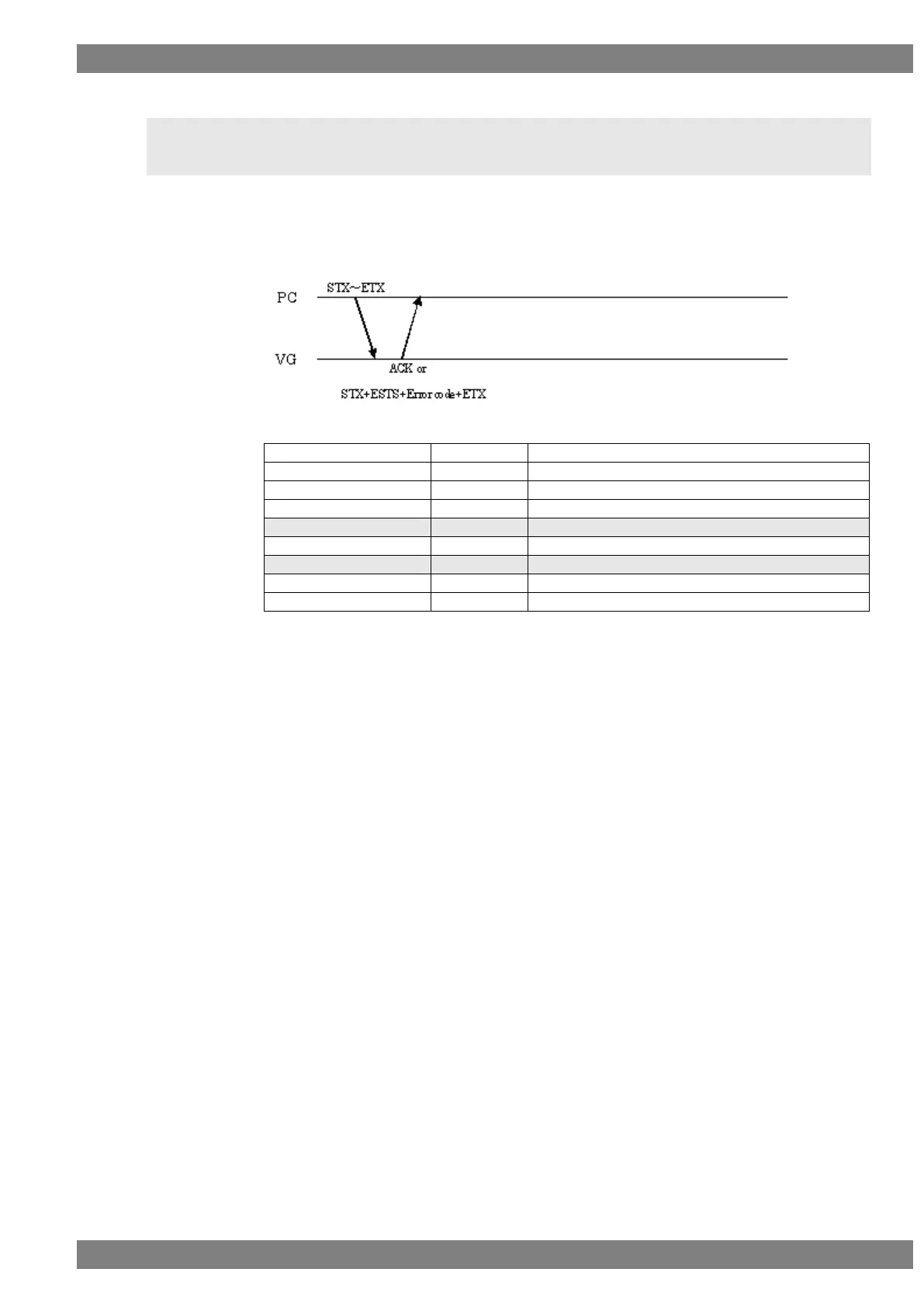

Fig. 2-155-1
