ASTRO VG-877 - SPT3 [A2 H]: Pattern Data Registration (Type 3)

372
4.29 SPT3 [A2H]: Pattern data registration (Type 3)
Function: This command registers the pattern data of the designated program number.
It selects the pattern block to be set in a parameter and sends the
corresponding data. If the program number is 0, it writes the data into the
buffer RAM.

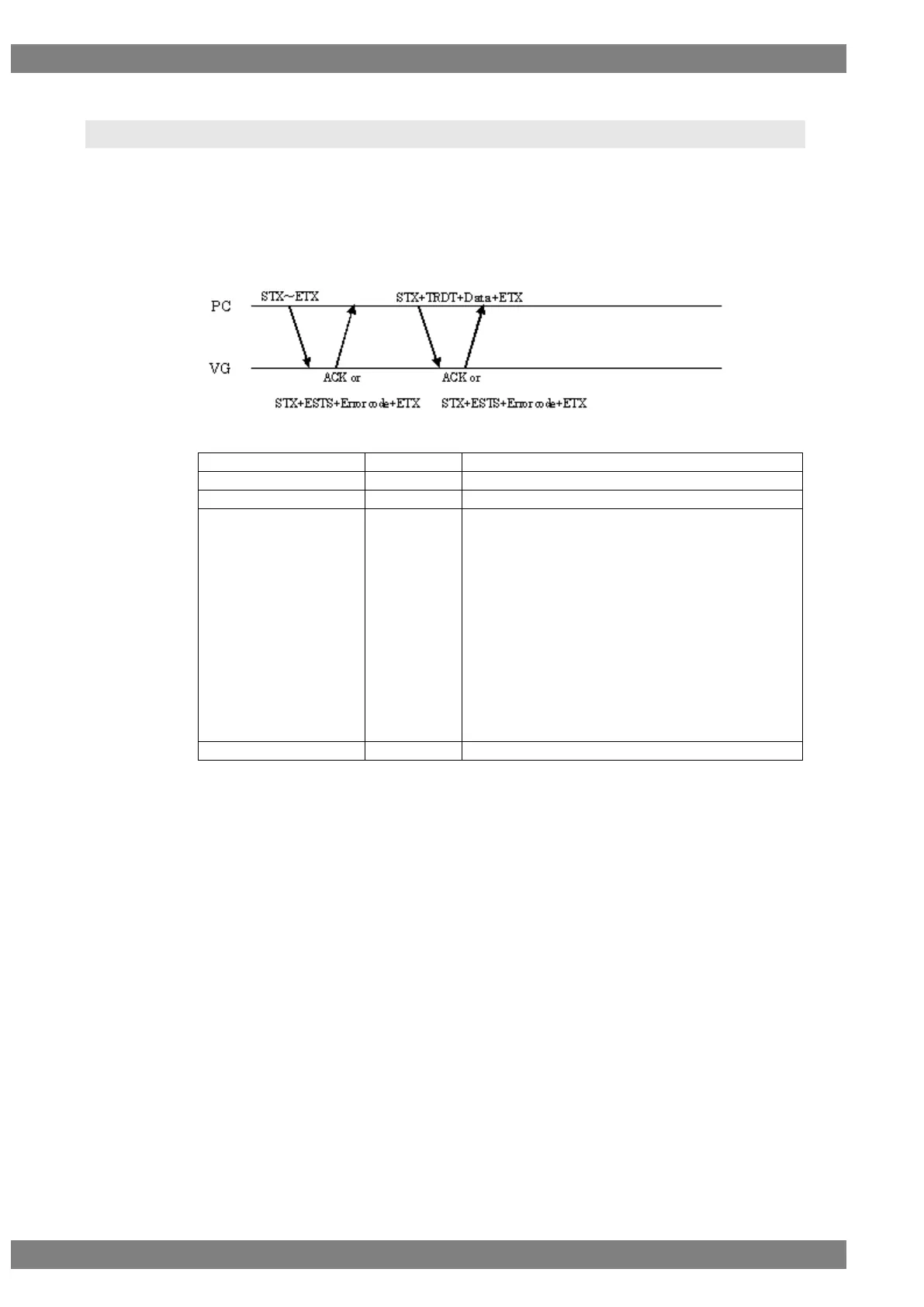

Sequence: Type 4
Command:
STX
1 byte
02H
SPT3
1 byte
A2H
Program number
1 to 3 bytes
“0” to “849”
Pattern block No.
2 bytes
“01” = Graphic color
“02” = Character
“03” = Crosshatch
“04” = Dot
“05” = Circle
“06” = Burst
“07” = Window
“08” = Optional pattern 1
“09” = Optional pattern 2
“10” = Color bar
“11” = Gray scale
“13” = Cursor
“14” = Action
ETX
1 byte
03H
Fig. 4-29-1
* Pattern block No.12 (half tone) is not available.
