ASTRO VG-877 - LLGED5 [20 H A1 H]: Large Group Enable Readout

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
207

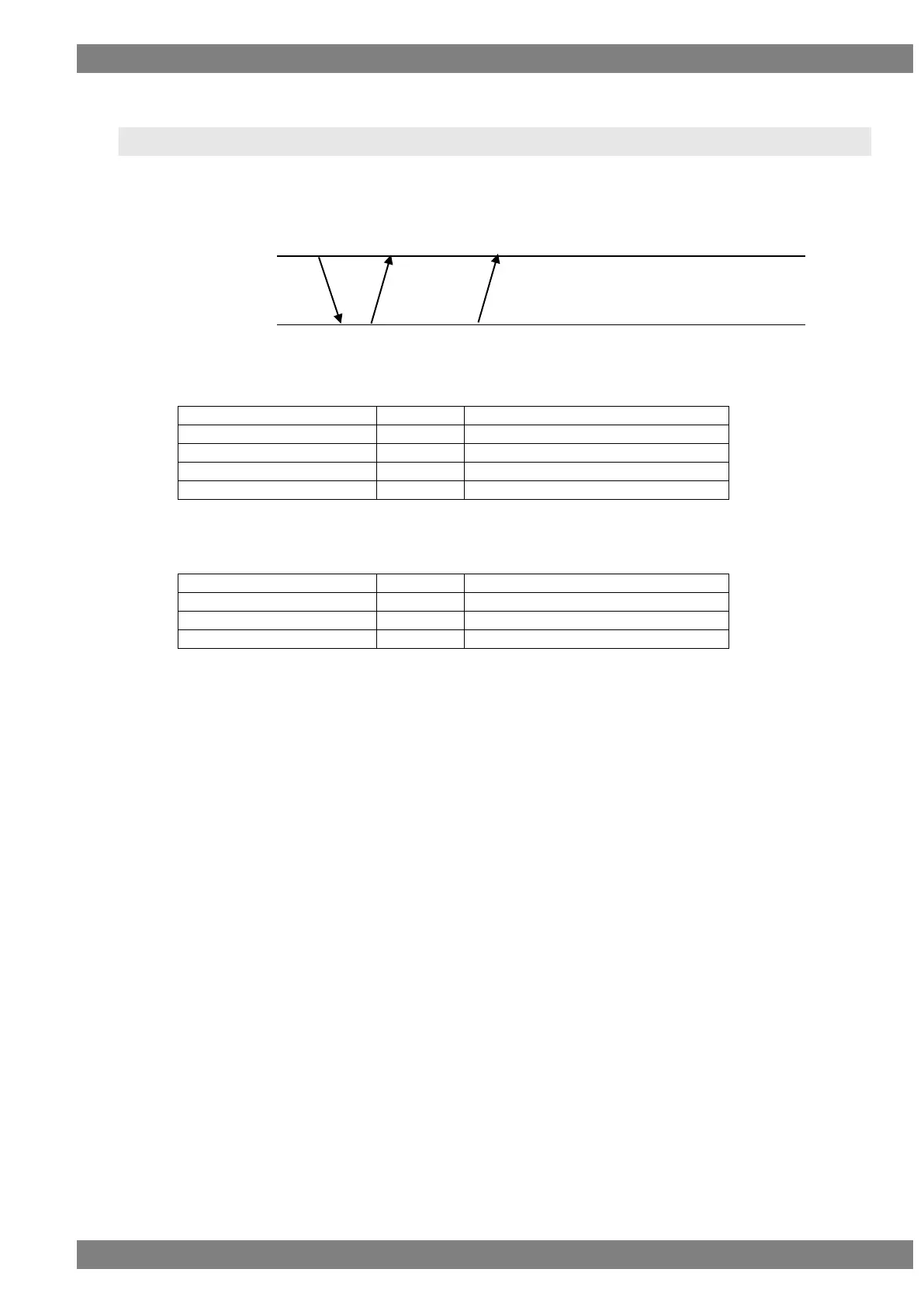

2.112 LLGED5 [20H A1H] : Large group enable readout
Function : This command reads out enable or disable setting of the indicated large group
No. data.
Sequence : TYPE3
Command :
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
LLGED5
2 BYTE
20H A0H
Large group NO
1-2 BYTE
"1"-"99"
ETX
1 BYTE
03H
Fig. 2-112-1
Data :
STX
1 BYTE
02H
TRDT
1 BYTE
10H
Enable / Disable
1 BYTE
"0"=Enable "1"=Disable
ETX
1 BYTE
03H
Fig. 2-112-2
This command is only for VG-881.
PC
VG
STX～ETX
STX+TRDT+DATA+ETX
ACK or
STX+ESTS+Error code+ETX
