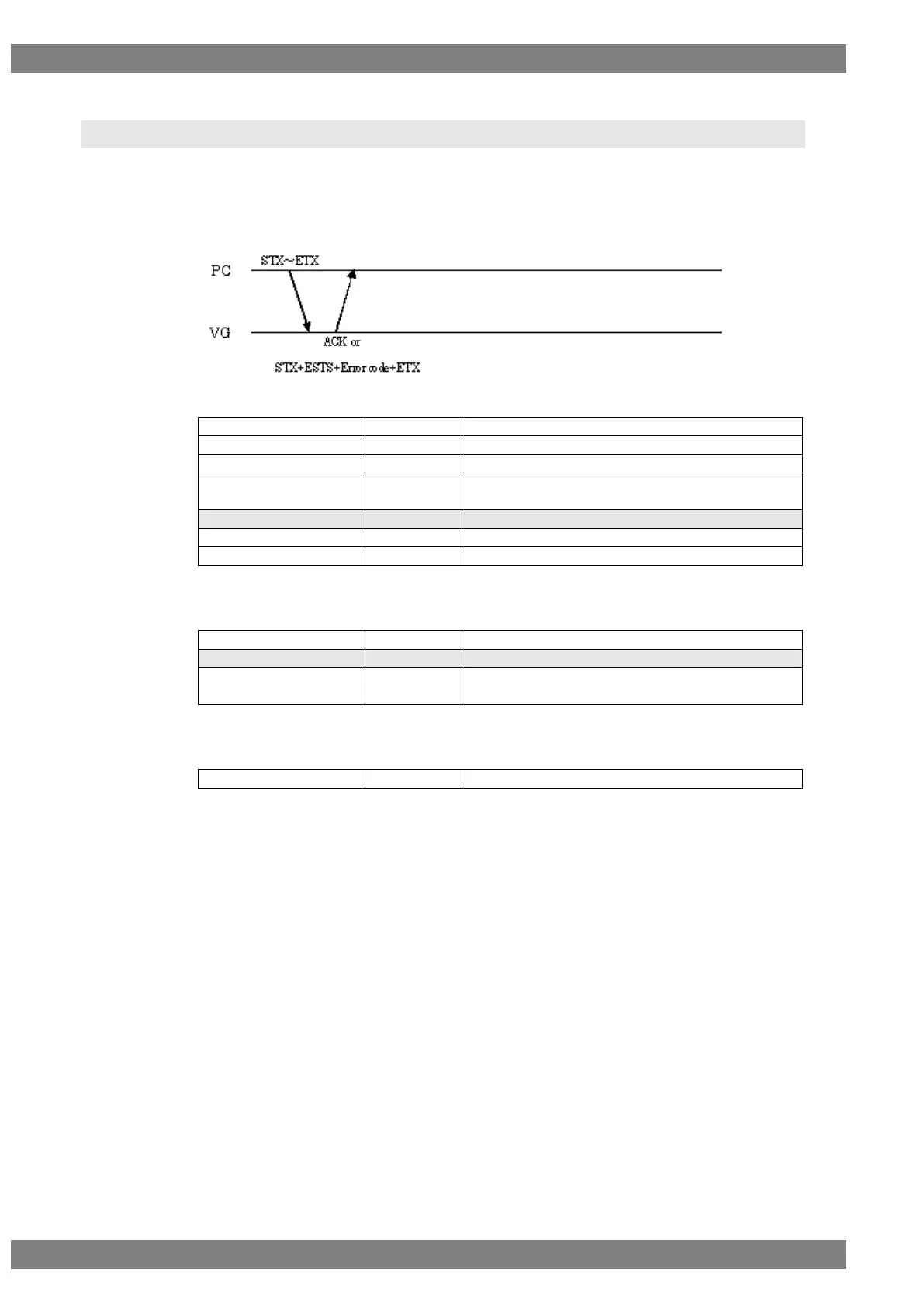

2.143 VLEVEL4 [24H 27H]: Video level change
Function: This command changes the video level. The changes are immediately
reflected in the signals output from the VG generator.
Sequence: Type 2
Command:
“A” = Level value setting
Refer to Fig. 2-115-2 to 3.
Fig. 2-143-1
(1) “A” Level value setting
“0” = Analog, “1” = Digital
With analog signals: “0” to “120” (0.00 to 1.20 V)
With digital signals: “0” to “65535”
Fig. 2-143-2
(2) “B” Level ±
Fig. 2-143-3
