Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
277

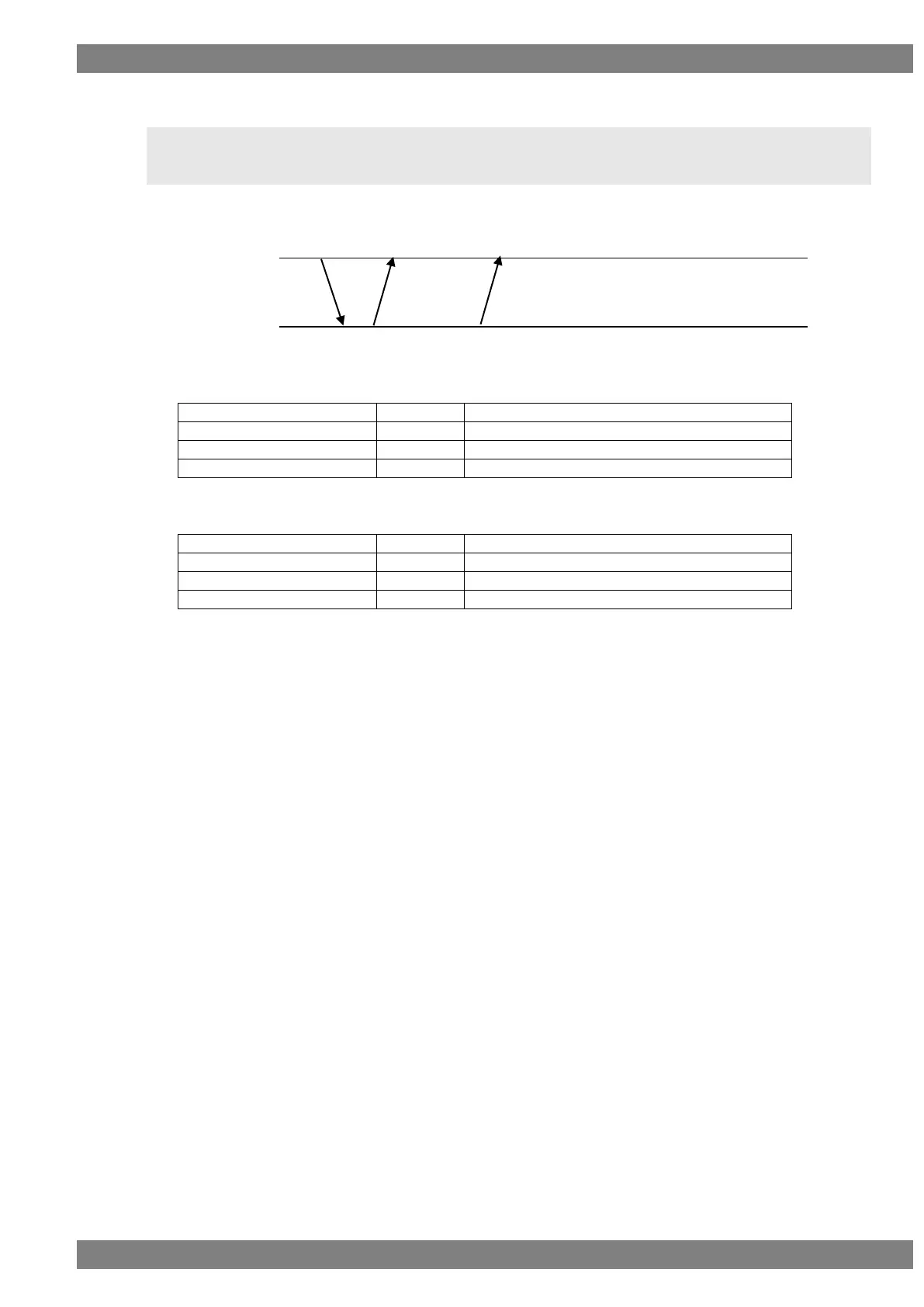

2.163 LMUTE4[24H 3FH]: MUTE operation ON/OFF
acquisition.
Function ： This command sets MUTE status ON/OFF.
Sequence ： TYPE3
Command ：
STX
1 byte
02H
VG4CMD
1 byte
FDH
LMUTE4
2 byte
24H 3FH
ETX
1 byte
03H
Fig 2-163-1
Data ：
STX
1 byte
02H
TRDT
1 byte
10H
MUTE operation
1 byte
"0"=OFF, "1"=ON
ETX
1 byte
03H
Fig 2-163-2
PC
VG
STX～ETX
STX+TRDT+DATA+ETX
ACK or
STX+ESTS+ERROR CODE+ETX
