HOME SERVER TS mini 63
2. Remove the HDD from the home server.
(a) Power off the server and unplug the power cord.

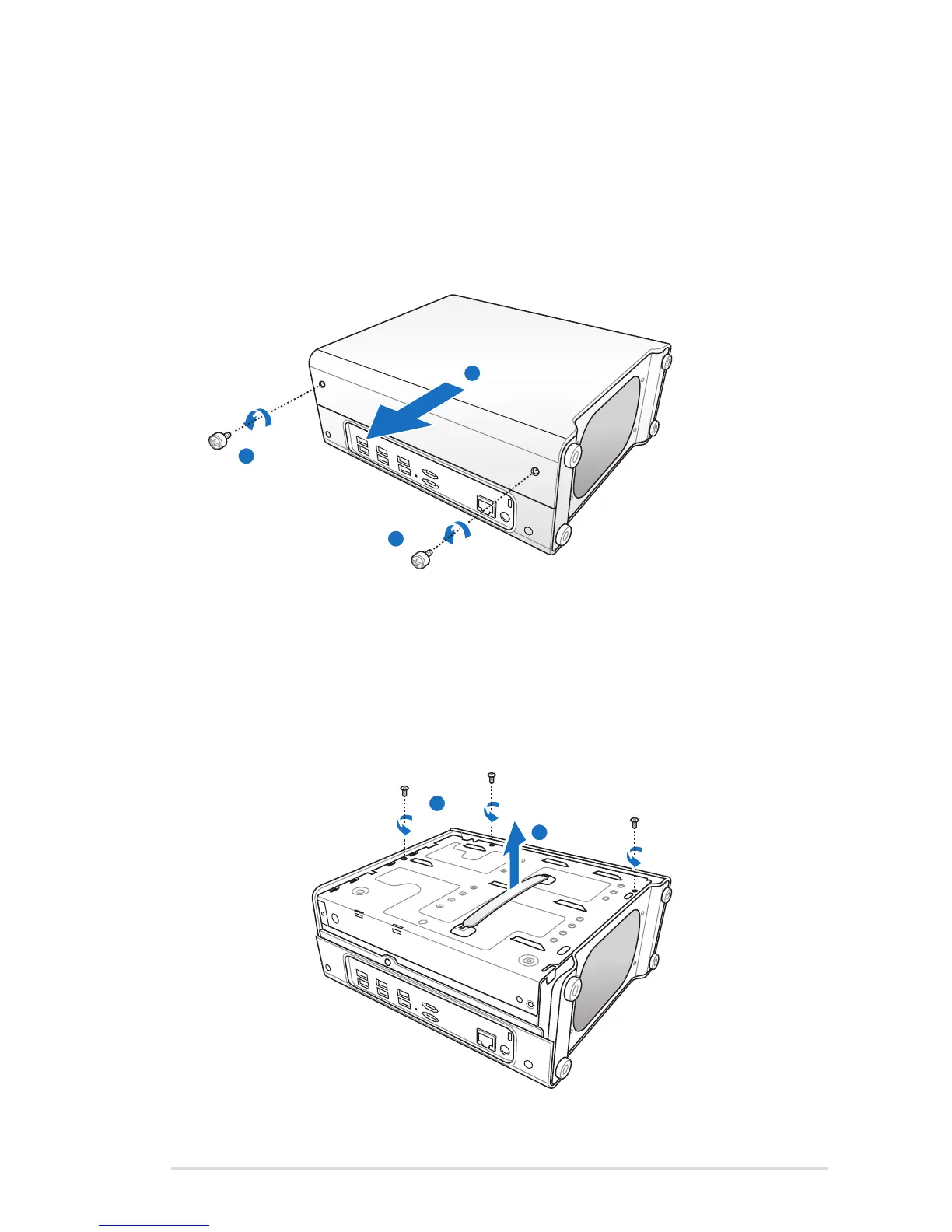

(b) Lay the server horizontally on a stable surface, and then
loosen the two thumbscrews to remove the left side case.
2
1
1
2
1
1
2
2
1
1
1
2
1
1
2
2
1
1
2
1
1
2
2
1
1
1
2
1
1
2
(c) Use a coin to loosen the three screws and put the screws at
a visible place in case they are lost.
(d) Hold the plastic grip, and then lift up the HDD cage
horizontally.
