Atari 2600 Field Service Manual

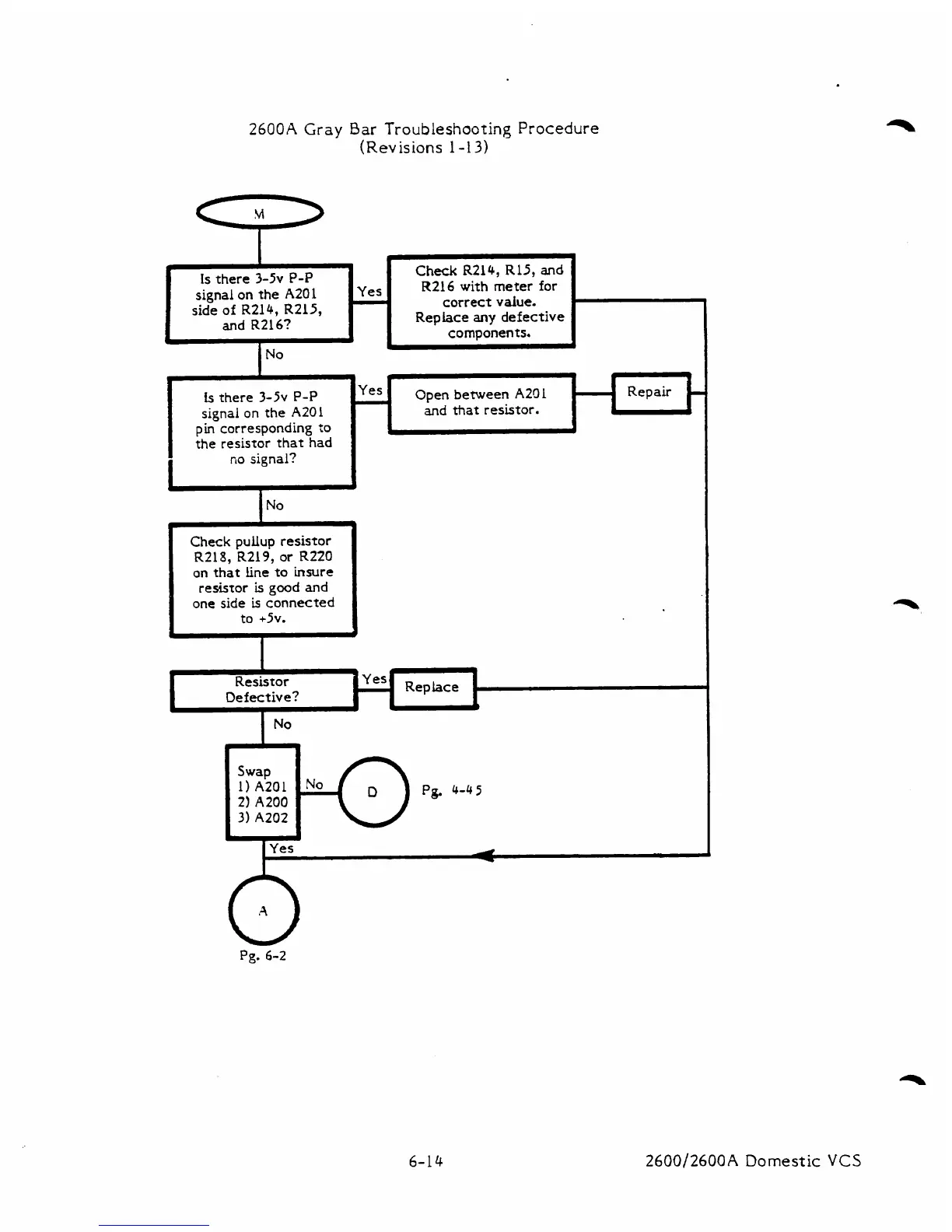

2600A Gray Bar Troubleshooting Procedure
(Rev isions 1 -1 3)
signal on the A20 1
side of R214, R215,
and R216?
I
fs there 3-5v P-P
signal on the A20 1
pin corresponding to
the resistor that had
I
no signal?
Yes
-
Check pullup resistor
R218, R219, or R220
on that line to insure
resistor
is good and
one side is connected
to +5v.
Check R214, R15, and
R216 with meter for
correct
value.
Replace any defective
yes { Open between A2I 1
Repair
and that resistor.
L
I
P
Resistor
Replace
Defective?
Yes
Pg. 6-2
2600/2600A Domestic VCS

Atari 2600 Specifications

General

Manufacturer	Atari, Inc.
Release Date	September 11, 1977
CPU	MOS Technology 6507
CPU Speed	1.19 MHz
RAM	128 bytes
Graphics	Television Interface Adaptor (TIA)
Media	ROM cartridge
Successor	Atari 5200
Colors	128
Sound	2 channels
ROM	4 KB
Controller Input	Joystick
