Atari 2600 Field Service Manual

TRUTH TABLE
I, i A
Equipment Needed
0 T.V. set

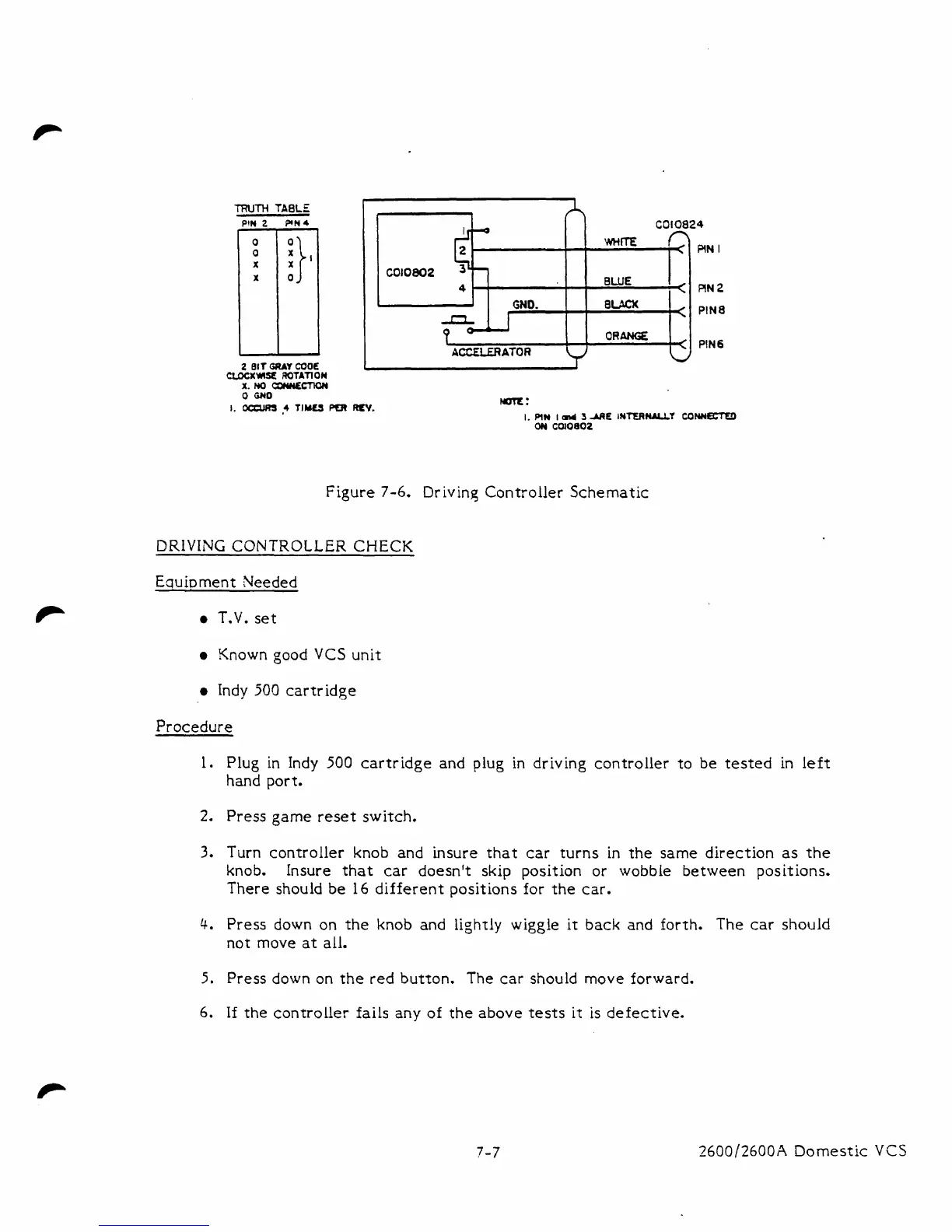

Figure
7-6. Driving Controller Schematic
DRIVING CONTROLLER CHECK
Known good VCS unit
Indy 500 cartridge
Procedure
1. Plug in Indy 500 cartridge and plug in driving controller to be tested in left
hand port.
2. Press game reset switch.
3. Turn controller knob and insure that car turns in the same direction as the
knob. Insure that car doesn't skip position or wobble between positions*
There should be 16 different positions for the car.
4. Press down on the knob and lightly wiggle it back and forth. The car should
not move at all.
5. Press down on the red button.
The car should move forward.
6. If the controller fails any of the above tests it is defective.
2600/2600A Domestic VCS

Atari 2600 Specifications

General

Manufacturer	Atari, Inc.
Release Date	September 11, 1977
CPU	MOS Technology 6507
CPU Speed	1.19 MHz
RAM	128 bytes
Graphics	Television Interface Adaptor (TIA)
Media	ROM cartridge
Successor	Atari 5200
Colors	128
Sound	2 channels
ROM	4 KB
Controller Input	Joystick
