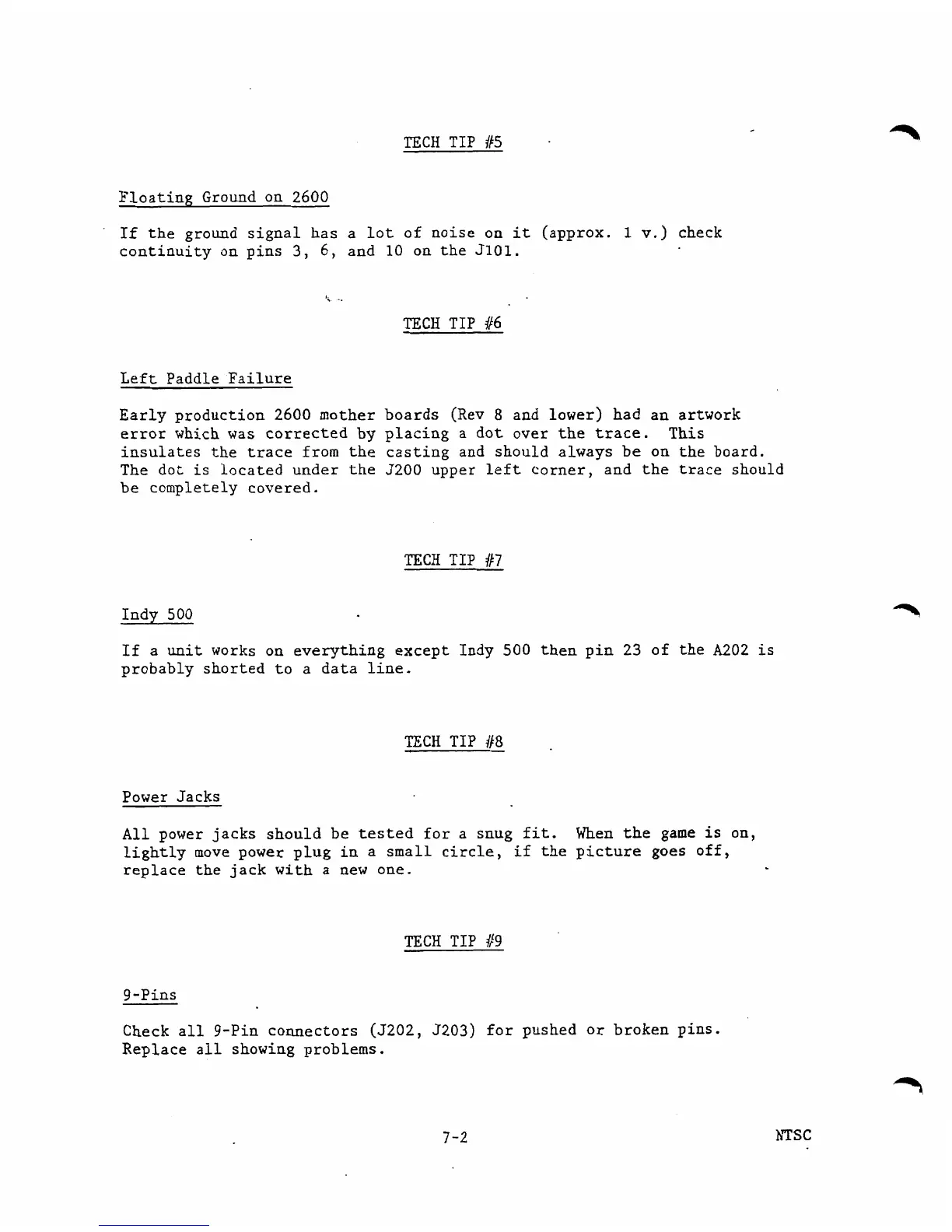

TECH
TIP
jfi5
Floatina
Ground on
2600
If
the
ground signal has
a
lot
of
noise on
it
(approx.
1
v.)
check
continuity on pins
3,
6,
and
10
on
the
5101.
Left Paddle Failure
TECH
TIP
86
Early production
2600
mother boards
(Rev
8
and
lower)
had
an
artwork
error
which
was
corrected
by
placing
a
dot
over
the trace.
This
insulates
the
trace
from
the casting and should
always
be
on
the
board.
The
dot
is
located under the
5200
upper
left corner,
and
the
trace should
be
completely covered.
TECH
TIP
i1/7
Indy
500
If
a
unit works on
everything
except
Indy
500
then
pin
23
of
the
A202
is
probably shorted to
a
data
line.
TECH
TIP
#8
Power
Jacks
All
power
jacks
should be tested for a snug fit.
When
the
game
is
on,
lightly
move
power
plug
in
a small circle, if
the
goes
off,
replace
the
jack
with
a
new
one.
TECH
TIP
#9
Check
all
9-Pin connectors
(5202,
5203)
for
pushed or broken
pins.
Replace all showing problems.
