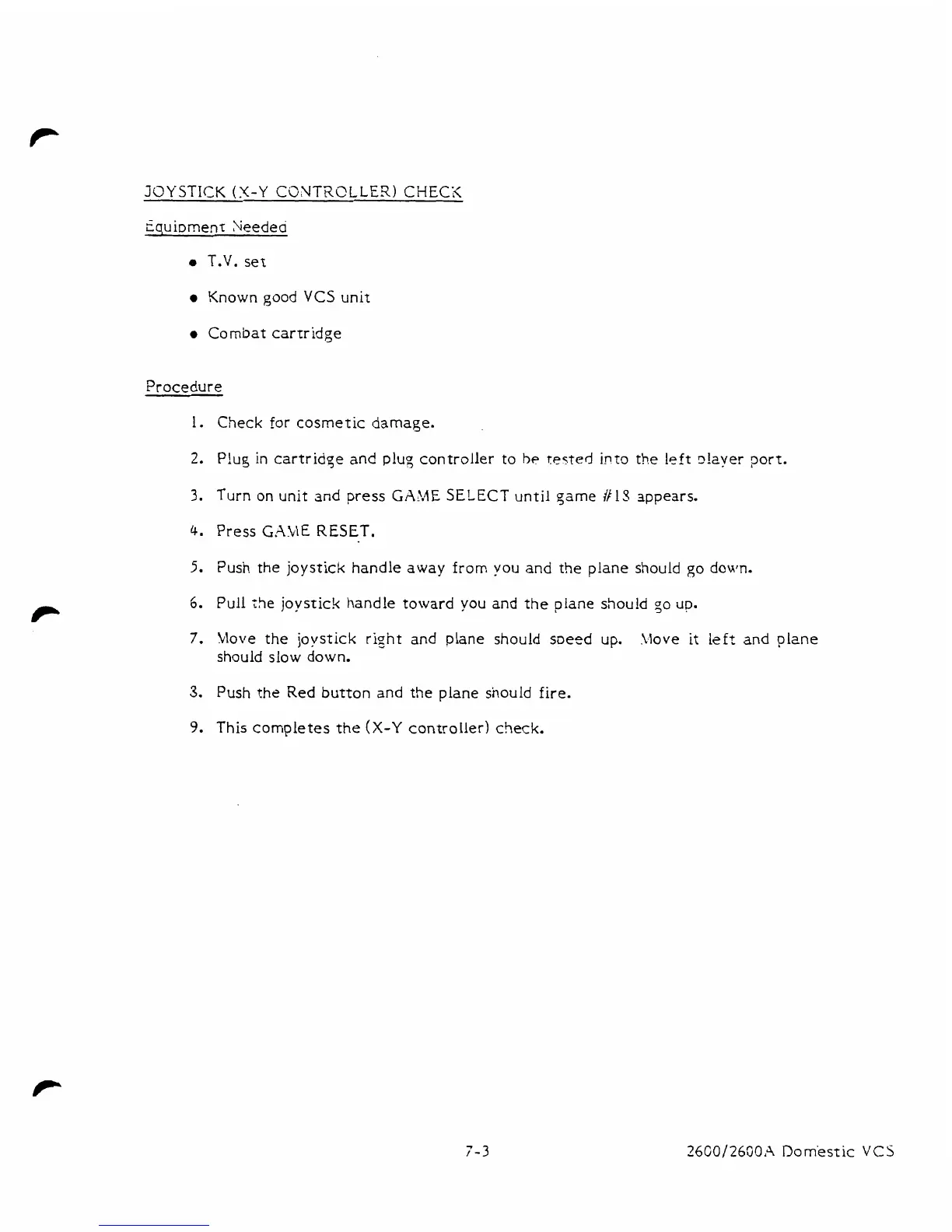

Atari 2600 Field Service Manual

JOYSTICK (X-Y CGNTXCLLEI?) CHEC;<
Zquiornent Needed
e T.V. set
a Known good VCS unit
a Combat cartridge
Procedure
1. Check for cosmetic damage.
2. P!ug in cartridse and plug controller to he tested into the left "!aver port.
3. Turn on unit and press GAME SELECT until game i. lS appears.
4. Press G.A.\IIE RESET.
5.
Push the joystick handle away from you and the plane should go dourn.
6.
Pull ;he joystick handle toward you and the plane should go up.
7. Move the joystick right and plane should meed up.
love it Left and plane
should slow
down.
3. Push the Red button and the plane should fire.
9. This completes the (X-Y controller) check.
