Assv
Paddle
Paddle
Paddle
Paddle
Paddle
Paddle
Paddle
Paddle
Paddle
Paddle
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl

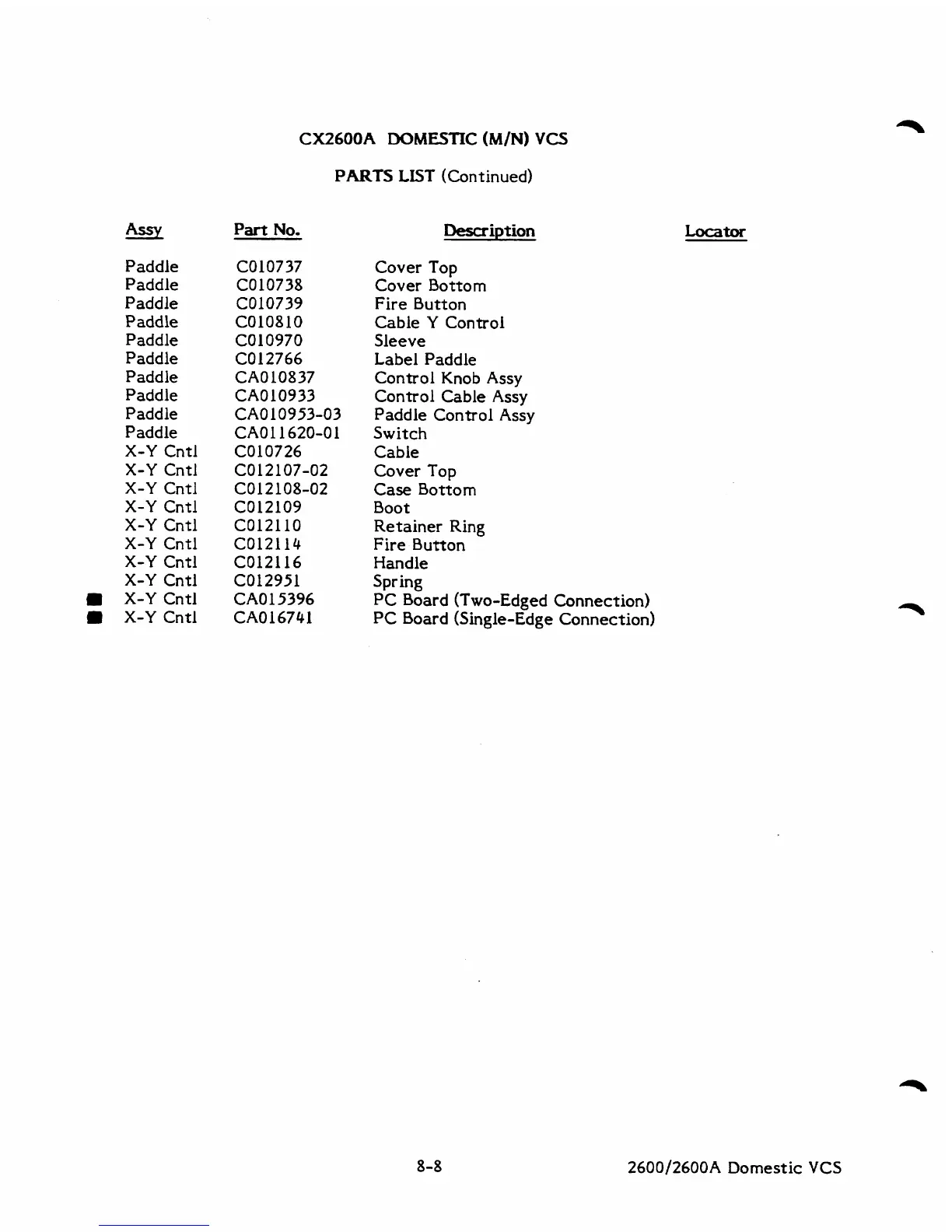

CX2600A
DOMESnC
(MIN)
VCS
PARTS
LIST
(Continued)
Part
No.
C010737
C010738
C010739
COl08lO
C010970
COl2766
CA010837
CA010933
CA0 10953-03
CAO 1 1620-0 1
C010726
C012107-02
C012108-02
C012109
C012110
C012ll4
C012116
C012951
CAOlS396
CAO16741
Description
Cover Top
Cover Bottom
Fire Button
Cable Y Control
Sleeve
Label Paddle
Control Knob
Assy
Control Cable Assy
Paddle Control
Assy
Switch
Cable
Cover Top
Case Bottom
Boot
Retainer Ring
Fire Button
Handle
Spring
PC Board (Two-Edged Connection)
PC Board (Single-Edge Connection)
Locator
2600/2600A Domestic
VCS
