Atari 2600 Field Service Manual

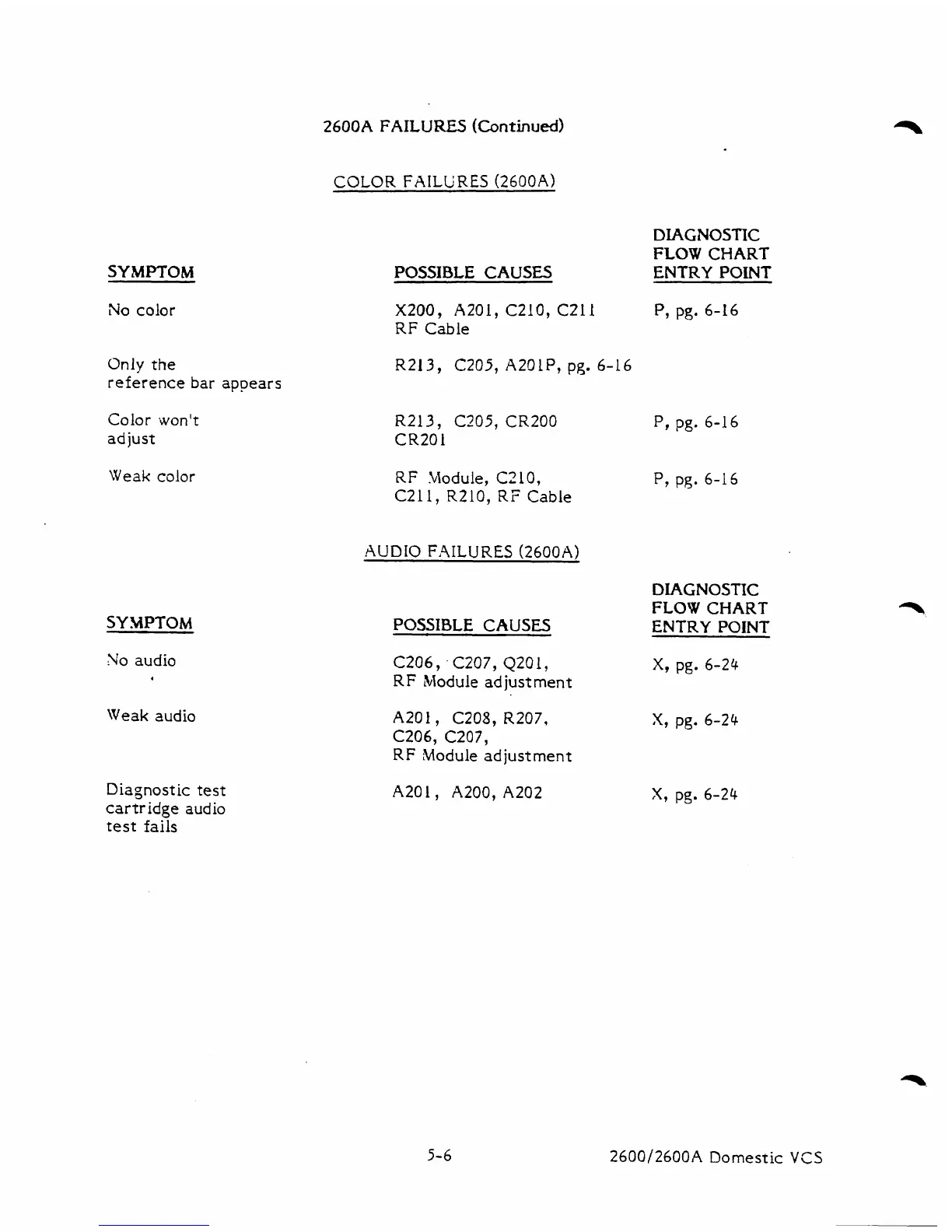

2600A FAILURES (Continued)
COLOR FAILURES (2600A)
DIAGNOSTIC
FLOW CHART
ENTRY POINT
SYMPTOM
No color
POSSIBLE CAUSES
X200, A201, C210, C211
RF Cable
P, pg. 6-16
Only the
reference bar appears
Color won't
ad just
P, pg. 6-16
Weak color
RF Module, C210,
C211, RtlO, RF Cable
AUDIO FAILURES (2600A)
DIAGNOSTIC
FLOW CHART
ENTRY POINT
SYMPTOM
POSSIBLE CAUSES
No audio
4
C206, . C207, 420 1,
R F Module ad just ment
Weak audio
A201, C208, R207,
C2O6, C207,
RF Module adjustment
X, pg. 6-24
Diagnostic
test
cartridge audio
test fails
X, pg. 6-24
2600/2600A Domestic VCS
