Super Sprint
Illustrated Parts Lists

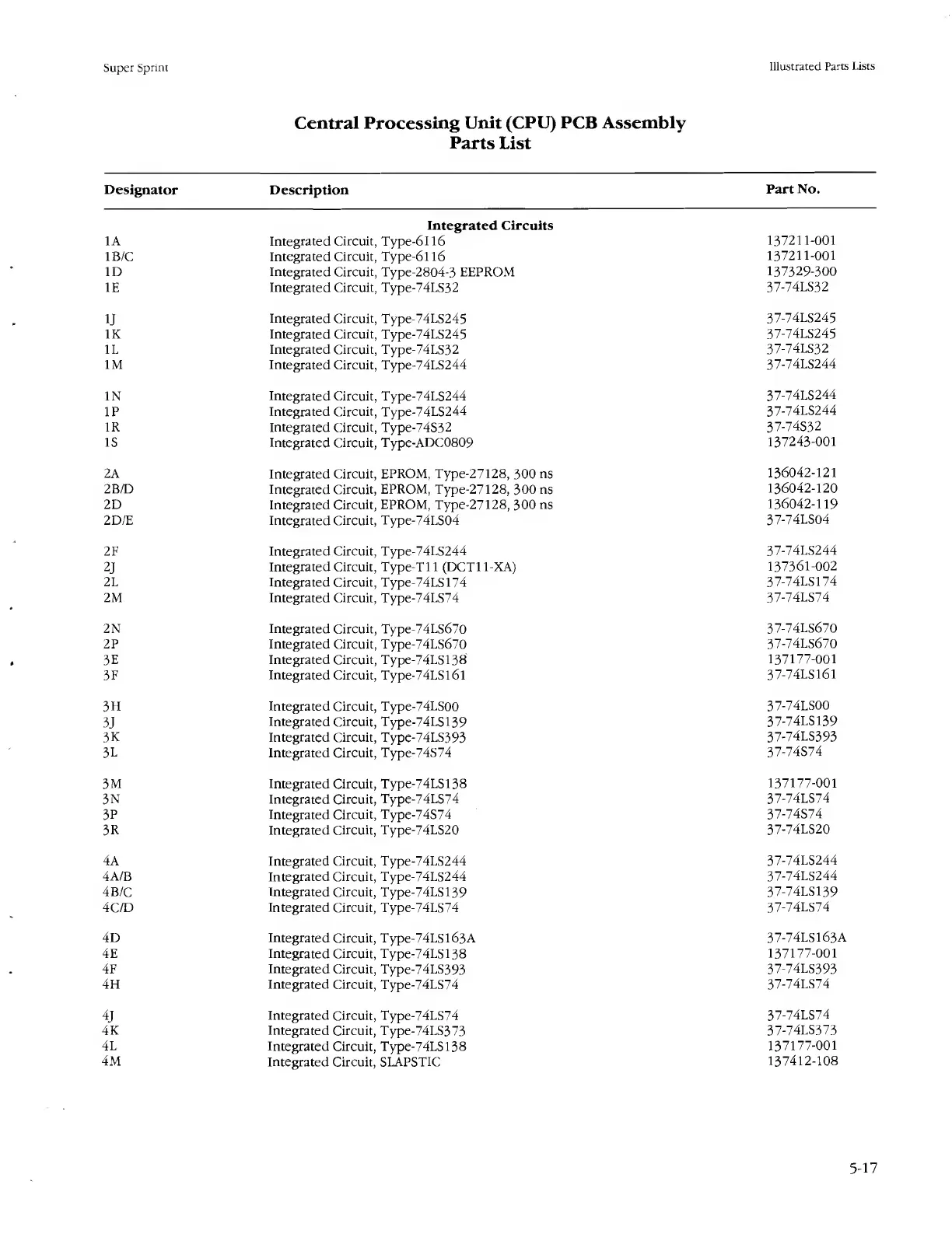

Central Processing Unit (CPU) PCB Assembly
Parts List
Designator
Description
Part No.
Integrated Circuits
1A
Integrated Circuit, Type-6l 16
137211-001
1B/C Integrated Circuit, Type-6116
137211-001
ID
Integrated Circuit, Type-2804-3 EEPROM
137329-300
IE Integrated Circuit, Type-74LS32
37-74LS32
U
Integrated Circuit, Type-74LS245
37-74LS245
IK Integrated Circuit, Type-74LS245 37-74LS245
1L Integrated Circuit, Type-74LS32
37-74LS32
1M
Integrated Circuit, Type-74LS244
37-74LS244
IN Integrated Circuit, Type-74LS244
37-74LS244
IP
Integrated Circuit, Type-74LS244
37-74LS244
1R
Integrated Circuit, Type-74S32
37-74S32
IS
Integrated Circuit, Type-ADC0809
137243-001
2A Integrated Circuit, EPROM, Type-27128, 300 ns
136042-121
2B/D
Integrated Circuit, EPROM, Type-27128, 300 ns
136042-120
2D
Integrated Circuit, EPROM, Type-27128, 300 ns 136042-119
2 D/E Integrated Circuit, Type-74LS04
37-74LS04
2F Integrated Circuit, Type-74LS244
37-74LS244
2J
Integrated Circuit, Type-Tl 1 (DCT11-XA)
137361-002
2L
Integrated Circuit, Type-74LS174
37-74LS174
2M
Integrated Circuit, Type-74LS74
37-74LS74
2N
Integrated Circuit, Type-74LS670
37-74LS670
2P Integrated Circuit, Type-74LS670
37-74LS670
3E Integrated Circuit, Type-74LS138
137177-001
3F Integrated Circuit, Type-74LSl6l
37-74LS161
3H Integrated Circuit, Type-74LS00
37-74LSOO
3J
Integrated Circuit, Type-74LS139
37-74LS139
3K
Integrated Circuit, Type-74LS393
37-74LS393
3L
Integrated Circuit, Type-74S74
37-74S74
3M
Integrated Circuit, Type-74LS138
137177-001
3N
Integrated Circuit, Type-74LS74
37-74LS74
3P
Integrated Circuit, Type-74S74
37-74S74
3R
Integrated Circuit, Type-74LS20
37-74LS20
4A
Integrated Circuit, Type-74LS244
37-74LS244
4A/B Integrated Circuit, Type-74LS244
37-74LS244
4B/C Integrated Circuit, Type-74LS139 37-74LS139
4C/D Integrated Circuit, Type-74LS74
37-74LS74
4D
Integrated Circuit, Type-74LSl63A
37-74LS163A
4E
Integrated Circuit, Type-74LS138
137177-001
4F
Integrated Circuit, Type-74LS393 37-74LS393
4H
Integrated Circuit, Type-74LS74
37-74LS74
4J
Integrated Circuit, Type-74LS74
37-74LS74
4K
Integrated Circuit, Type-74LS373
37-74LS373
4L
Integrated Circuit, Type-74LS138
137177-001
4M
Integrated Circuit, SLAPSTIC
137412-108
