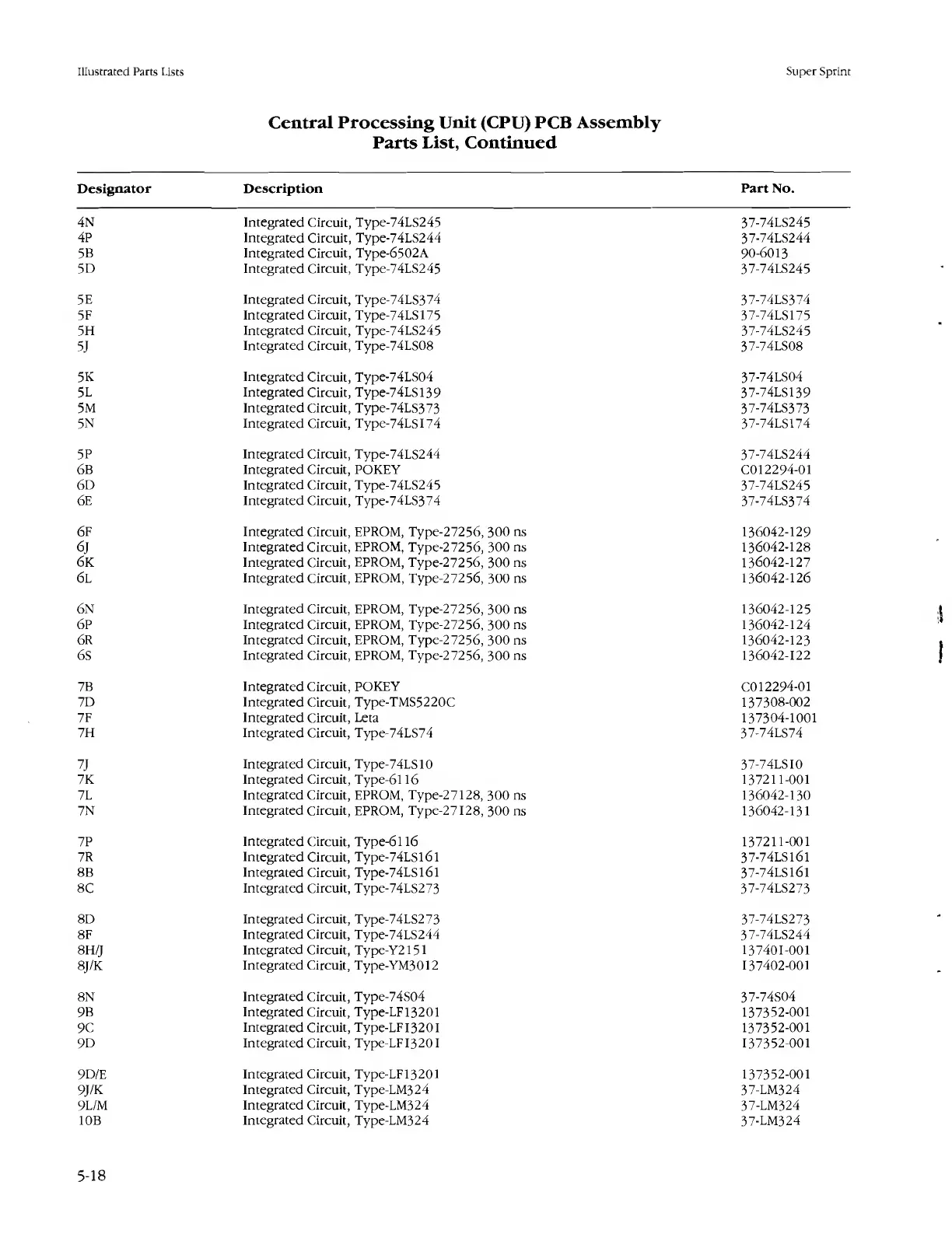

Central Processing Unit (CPU) PCB Assembly
Parts List, Continued
Designator Description Part No.
4N
Integrated Circuit, Type-74LS245
37-74LS245
4P
Integrated Circuit, Type-74LS244 37-74LS244
5B Integrated Circuit, Type-6502A
90-6013
5D
Integrated Circuit, Type-74LS245
37-74LS245
5E
Integrated Circuit, Type-74LS374 37-74LS374
5F
Integrated Circuit, Type-74LS175
37-74LS175
5H Integrated Circuit, Type-74LS245
37-74LS245
5J
Integrated Circuit, Type-74LS08 37-74LS08
5K
Integrated Circuit, Type-74LS04
37-74LS04
5L
Integrated Circuit, Type-74LS139
37-74LS139
5M
Integrated Circuit, Type-74LS373
37-74LS373
5N
Integrated Circuit, Type-74LS174
37-74LS174
5P
Integrated Circuit, Type-74LS244
37-74LS244
6B
Integrated Circuit, POKEY
C012294-01
6D Integrated Circuit, Type-74LS245
37-74LS245
6E
Integrated Circuit, Type-74LS374 37-74LS374
6F
Integrated Circuit, EPROM, Type-27256, 300 ns
136042-129
6J
Integrated Circuit, EPROM, Type-27256, 300 ns 136042-128
6K Integrated Circuit, EPROM, Type-27256, 300 ns
136042-127
6L Integrated Circuit, EPROM, Type-27256, 300 ns
136042-126
6N Integrated Circuit, EPROM, Type-27256, 300 ns
136042-125
6p Integrated Circuit, EPROM, Type-27256, 300 ns
136042-124
6R Integrated Circuit, EPROM, Type-27256, 300 ns
136042-123
6s
Integrated Circuit, EPROM, Type-27256, 300 ns
136042-122
7B
Integrated Circuit, POKEY C012294-01
7D
Integrated Circuit, Type-TMS5220C
137308-002
7F
Integrated Circuit, Leta
137304-1001
7H
Integrated Circuit, Type-74LS74 37-74LS74
7J
Integrated Circuit, Type-74LS10
37-74LS10
7K Integrated Circuit, Type-6l 16
137211-001
7L Integrated Circuit, EPROM, Type-27128, 300 ns
136042-130
7N
Integrated Circuit, EPROM, Type-27128, 300 ns
136042-131
7P
Integrated Circuit, Type-6l 16 137211-001
7R
Integrated Circuit, Type-74LSl6l 37-74LS l6l
8B Integrated Circuit, Type-74LSl6l 37-74LS161
8C
Integrated Circuit, Type-74LS273
37-74LS273
8D Integrated Circuit, Type-74LS273
37-74LS273
8F Integrated Circuit, Type-74LS244 37-74LS244
8H/J Integrated Circuit, Type-Y2151
137401-001
8J/K
Integrated Circuit, Type-YM3012
137402-001
8N Integrated Circuit, Type-74S04 37-74S04
9B Integrated Circuit, Type-LF 13201 137352-001
9C Integrated Circuit, Type-LF13201 137352-001
9D
Integrated Circuit, Type-LF13201 137352-001
9D/E
Integrated Circuit, Type-LF13201
137352-001
9J/K Integrated Circuit, Type-LM324 37-LM324
9L/M
Integrated Circuit, Type-LM324
37-LM324
10B
Integrated Circuit, Type-LM324 37-LM324
