Super Sprint
Illustrated Parts Lists

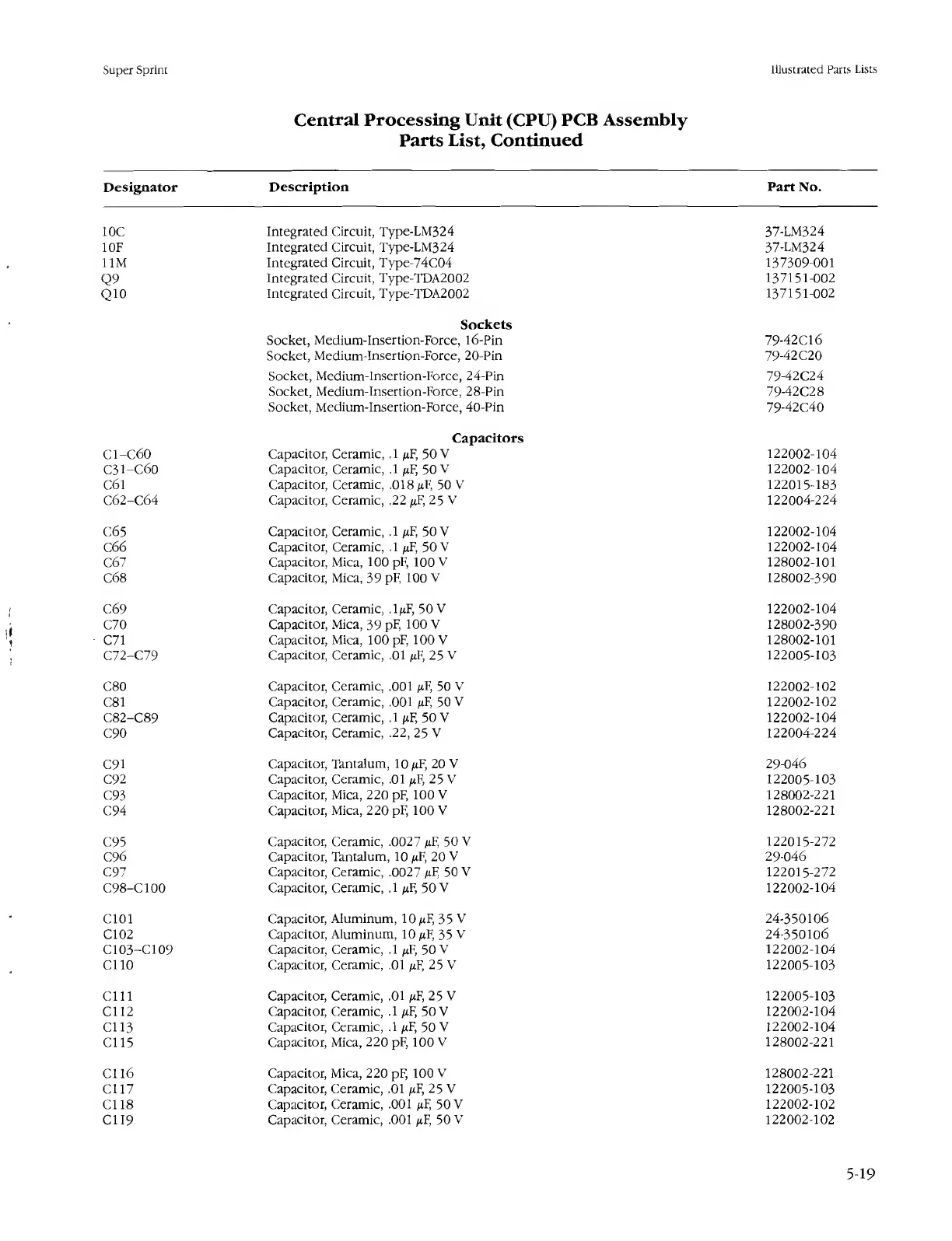

Central Processing Unit (CPU) PCB Assembly
Parts List, Continued
Designator Description Part No.
IOC
Integrated Circuit, Type-LM324
37-LM324
10F
Integrated Circuit, Type-LM324 37-LM324
11M Integrated Circuit, Type-74C04
137309-001
Q9
Integrated Circuit, Type-TDA2002 137151-002
Q10
Integrated Circuit, Type-TDA2002
137151-002
Sockets
Socket, Medium-Insertion-Force, 16-Pin 79-42C16
Socket, Medium-Insertion-Force, 20-Pin
79-42 C20
Socket, Medium-Insertion-Force, 24-Pin 79-42C24
Socket, Medium-Insertion-Force, 28-Pin 79-42C28
Socket, Medium-Insertion-Force, 40-Pin 79-42C40
Capacitors
C1-C60
Capacitor, Ceramic, . 1 yu.F, 50 V 122002-104
C31-C60
Capacitor, Ceramic, .1 /tF, 50 V 122002-104
C61
Capacitor, Ceramic, .018 /u.F, 50 V
122015-183
C62-C64 Capacitor, Ceramic, .22 /tF, 25 V 122004-224
C65
Capacitor, Ceramic, .1 /tF, 50 V 122002-104
C66
Capacitor, Ceramic, .1 /tF, 50 V
122002-104
C67
Capacitor, Mica, 100 pF, 100 V
128002-101
C68 Capacitor, Mica, 39 pF, 100 V 128002-390
C69
Capacitor, Ceramic, ,1/tF, 50 V 122002-104
C70
Capacitor, Mica, 39 pF, 100 V
128002-390
C71
Capacitor, Mica, 100 pF, 100 V
128002-101
C72-C79
Capacitor, Ceramic, .01 /tF, 25 V
122005-103
C80
Capacitor, Ceramic, .001 /tF, 50 V 122002-102
C81 Capacitor, Ceramic, .001 /tF, 50 V
122002-102
C82-C89
Capacitor, Ceramic, . 1 /tF, 50 V 122002-104
C90
Capacitor, Ceramic, .22, 25 V 122004-224
C91
Capacitor, Tantalum, 10/tF, 20 V 29-046
C92 Capacitor, Ceramic, .01 /tF, 25 V
122005-103
C93
Capacitor, Mica, 220 pF, 100 V
128002-221
C94
Capacitor, Mica, 220 pF, 100 V 128002-221
C95
Capacitor, Ceramic, .0027 /tF, 50 V
122015-272
C96 Capacitor, Tantalum, 10 /tF, 20 V
29-046
C97
Capacitor, Ceramic, .0027 /tF, 50 V 122015-272
C98-C100
Capacitor, Ceramic, .1 /tF, 50 V 122002-104
C101
Capacitor, Aluminum, 10 /tF, 35 V 24-350106
C102
Capacitor, Aluminum, 10 /tF, 35 V 24-350106
C103-C109
Capacitor, Ceramic, . 1 /tF, 50 V 122002-104
C110
Capacitor, Ceramic, .01 /tF, 25 V
122005-103
cm
Capacitor, Ceramic, .01 /tF, 25 V
122005-103
Cl 12
Capacitor, Ceramic, . 1 /tF, 50 V
122002-104
C113
Capacitor, Ceramic, .1 /tF, 50 V
122002-104
Cl 15
Capacitor, Mica, 220 pF, 100 V 128002-221
Cl 16 Capacitor, Mica, 220 pF, 100 V 128002-221
C117
Capacitor, Ceramic, .01 /tF, 25 V
122005-103
Cl 18
Capacitor, Ceramic, .001 /tF, 50 V 122002-102
Cl 19
Capacitor, Ceramic, .001 /tF, 50 V
122002-102
5-19
