Super Sprint
Illustrated Parts Lists

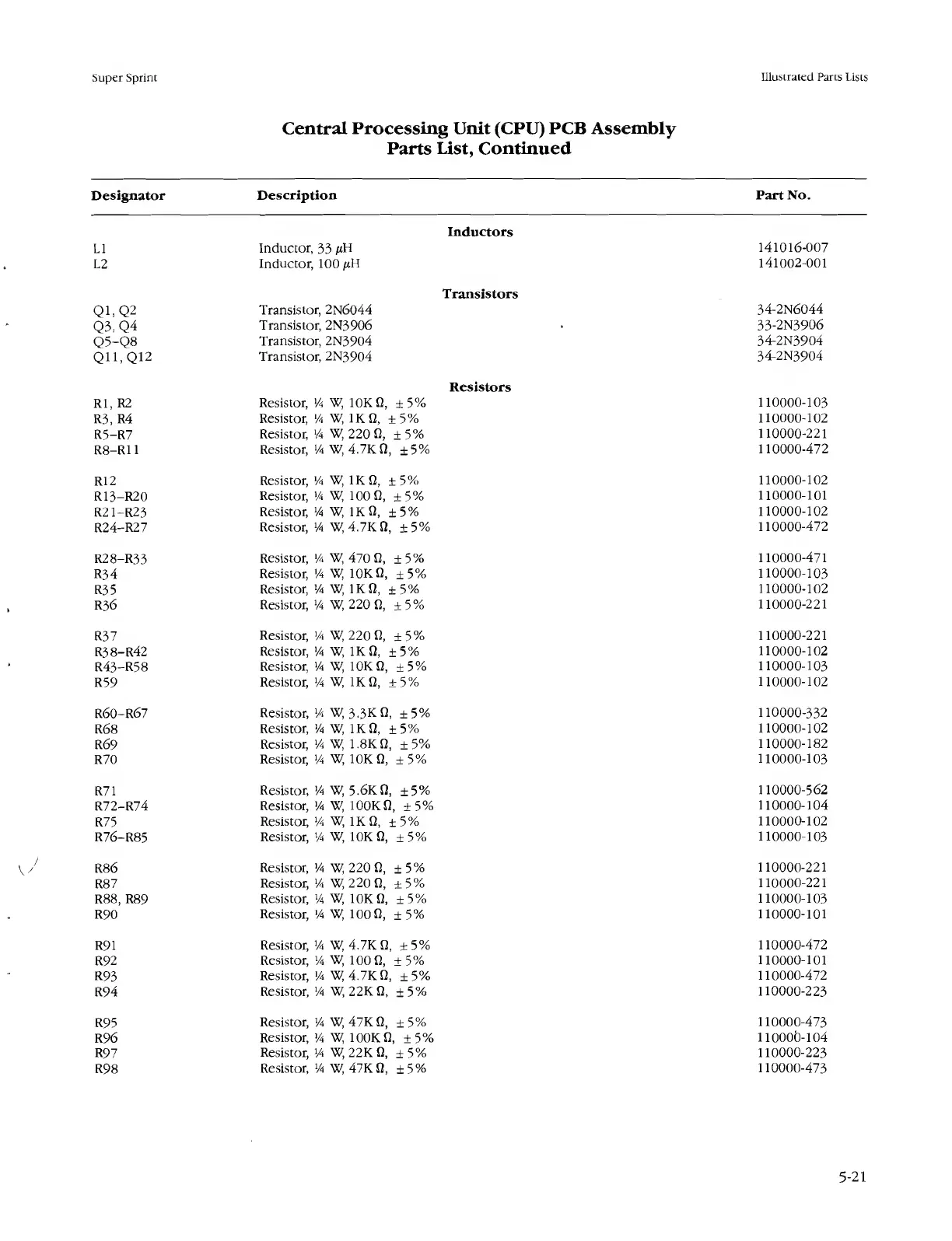

Central Processing Unit (CPU) PCB Assembly
Parts List, Continued
Designator Description Part No.
Inductors
LI
Inductor, 33 /xH
L2
Inductor, 100 /xH
Q1.Q2
Transistor, 2N6044
Q3,Q4
Transistor, 2N3906
Q5-Q8
Transistor, 2N3904
Qll, Q12
Transistor, 2N3904
Rl, R2
Resistor, 14 W, 10K 12, ±5%
R3, R4
Resistor, 14 W,1KQ, +5%
R5-R7
Resistor, '4 W, 220 12, ±5%
R8-R11
Resistor, 14 W, 4.7KS2, +5%
R12
Resistor, 'A W, IK 12. +5%
R13-R20
Resistor, 'A W, 10012, ±5%
R21-R23
Resistor, 14 W, IK 12, ±5%
R24-R27
Resistor, 14 W, 4.7KS2, +5%
R28-R33
Resistor, 14 W, 470 12, ±5%
R34
Resistor, 14 W, 10K12, ±5%
R35
Resistor, 14 W, 1K0, ±5%
R36
Resistor, l A W, 220 12, ±5%
R37
Resistor, 14 W, 220 12, ±5%
R38-R42
Resistor, 14 W, IK 12, ±5%
R43-R58
Resistor, >4 W, 1 OK 12, +5%
R59
Resistor, 14 W, IK 12, +5%
R60-R67 Resistor, 14 W, 3.3KS2, ±5%
R68
Resistor, 'A W, IK 12, ±5%
R69
Resistor, 1 A W, 1,8K 12, ± 5%
R70
Resistor, 14 W, 10K12, ±5%
R71
Resistor, '4 W, 5.6KO, ±5%
R72-R74
Resistor, 'A W, 100K12, ±5%
R75
Resistor, 14 W, IK 12, ±5%
R76-R85
Resistor, 14 W, 10K12, +5%
R86
Resistor, >4 W, 22012, +5%
R87
Resistor, 14 W, 220 12, ±5%
R88, R89
Resistor, 14 W, 10K12, ±5%
R90
Resistor, >4 W, 10012, ±5%
R91
Resistor, l A W, 4.7KQ, +5%
R92 Resistor, 14 W, 10012, ±5%
R93
Resistor, 14 W, 4.7K12, ±5%
R94
Resistor, 14 W, 22K 12, +5%
R95
Resistor, 14 W, 47K0, ±5%
R96
Resistor, 14 W, 100K12, ±5%
R97
Resistor, 14 W, 22K 12, ±5%
R98
Resistor, 14 W, 47K12, ±5%
141016-007
141002-001
Transistors
34-2N6044
33- 2N3906
34- 2N3904
34-2N3904
Resistors
110000-103
110000-102
110000-221
110000-472
110000-102
110000-101
110000-102
110000-472
110000-471
110000-103
110000-102
110000-221
110000-221
110000-102
110000-103
110000-102
110000-332
110000-102
110000-182
110000-103
110000-562
110000-104
110000-102
110000-103
110000-221
110000-221
110000-103
110000-101
110000-472
110000-101
110000-472
110000-223
110000-473
110000-104
110000-223
110000-473
5-21
