Illustrated Parts Lists
Super Sprint

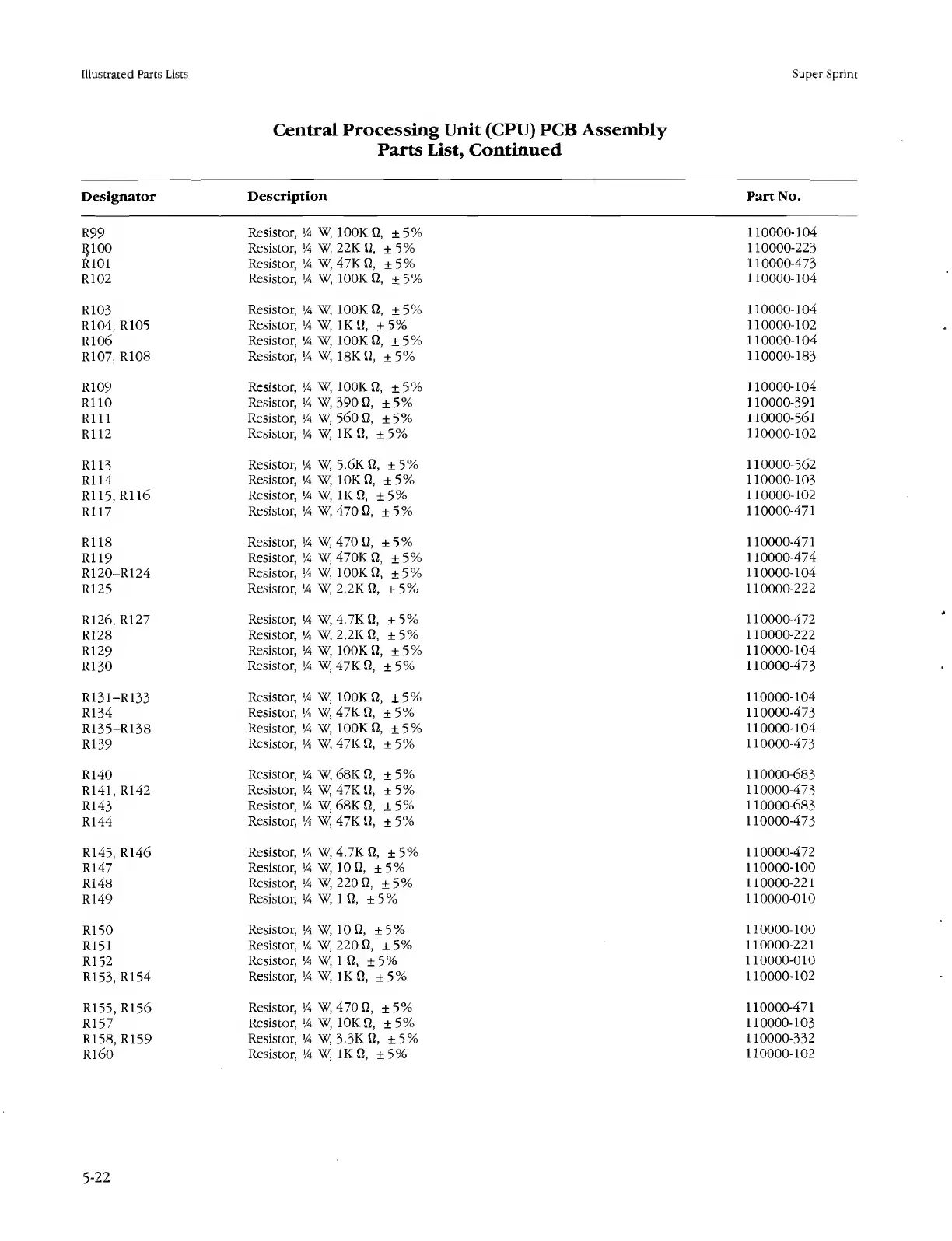

Central Processing Unit (CPU) PCB Assembly
Parts List, Continued
Designator
Description
Part No.
R99
Resistor,
Va W, lOOKfi, ±5%
110000-104
R100
Resistor, Va W, 22K12, ±5%
110000-223
R101
Resistor, Va
W, 47Kfi, ±5%
110000-473
R102 Resistor,
Va
W, 100K0, ±5%
110000-104
R103
Resistor,
Va
W, lOOKfi, ±5%
110000-104
R104, R105
Resistor, Va
W, lKfi, +5%
110000-102
R106
Resistor,
Va W, lOOKfi, ±5%
110000-104
R107, R108
Resistor, Va
W, 18Kfi, ±5%
110000-183
R109
Resistor, Va W, 100KO, ±5%
110000-104
R110
Resistor, Va W, 39012, +5%
110000-391
Rill
Resistor, Va
W, 560 n, ±5%
110000-561
R112 Resistor, Va W, 1K0, +5%
110000-102
R113
Resistor,
Va W, 5.6K 0, ±5%
110000-562
R114
Resistor, Va
W, lOKfi, ±5%
110000-103
R115, R116
Resistor,
Va
W, IK 0, ±5%
110000-102
R117
Resistor, Va w, 470 n, +5%
110000-471
R118
Resistor, Va W, 470 fi, ±5% 110000-471
R119
Resistor, Va W, 470K0, ±5%
110000-474
R120-R124
Resistor,
Va
W, 100KO, ±5%
110000-104
R125
Resistor, Va
W, 2.2KO, ±5%
110000-222
R126, R127
Resistor,
Va
W, 4.7KO, +5% 110000-472
R128
Resistor,
Va W, 2.2KO, +5% 110000-222
R129
Resistor, Va
W, 100K12, ±5%
110000-104
R130
Resistor, Va
w; 47K n, +5%
110000-473
R131-R133
Resistor, Va
W, 100KQ, ±5%
110000-104
R134
Resistor, Va
W, 47KQ, ±5%
110000-473
R135-R138
Resistor, Va W, 100KJ], ±5%
110000-104
R139
Resistor, Va W, 47Kfi, ±5%
110000-473
R140
Resistor,
Va W, 68Kfi, ±5%
110000-683
R141, R142
Resistor,
Va
W, 47K11, ±5%
110000-473
R143
Resistor, Va
W, 68KQ, ±5%
110000-683
R144
Resistor, Va W, 47K12, ± 5%
110000-473
R145, R146
Resistor, Va W, 4.7KO, ±5% 110000-472
R147
Resistor, Va
w, ion, ±5%
110000-100
R148
Resistor, Va W, 220 n, ±5%
110000-221
R149
Resistor, Va
w, i n, ±5%
110000-010
R150
Resistor,
Va w, ion, +5%
110000-100
R151
Resistor,
Va
W, 220 n, ±5%
110000-221
R152
Resistor,
Va
w, i n, ± 5%
110000-010
R153, R154
Resistor, Va
w, lKn, +5%
110000-102
R155, R156
Resistor, Va W, 470 n, ±5%
110000-471
R157
Resistor, Va
W, 10Kn, ±5%
110000-103
R158, R159
Resistor,
Va
W, 3.3Kn, ±5% 110000-332
R160
Resistor, Va W, lKn, +5%
110000-102
5-22
