Super Sprint
Illustrated Parts Lists

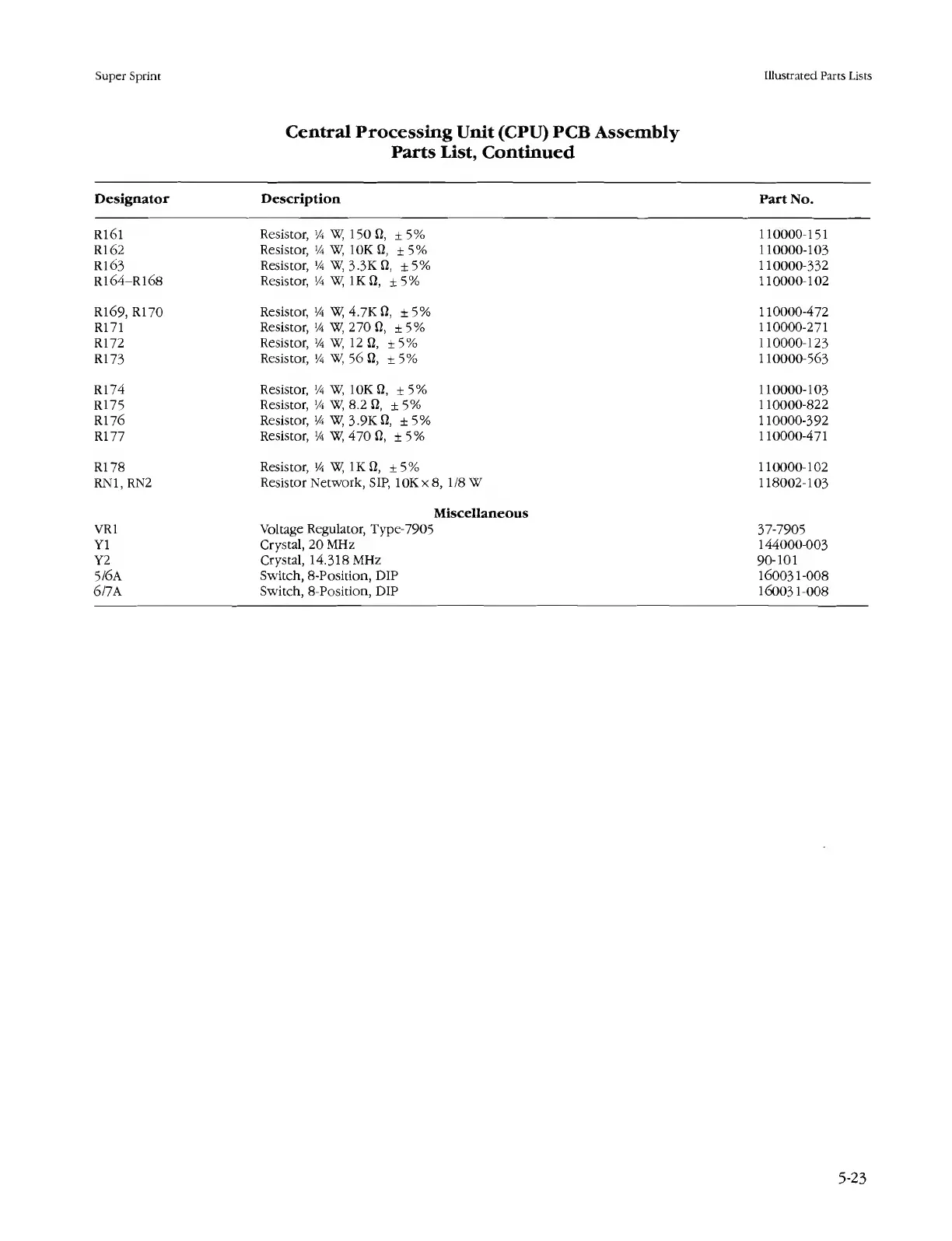

Central Processing Unit (CPU) PCB Assembly
Parts List, Continued
Designator
Description
Part No.
Rl6l
Resistor, 'A W, 150 0, ±5%
110000-151
R162 Resistor, 14 W, 10K 0, ±5%
110000-103
R163
Resistor, '4 W. 3.3K 0, ±5% 110000-332
R164-R168 Resistor, 'A w’ 1K0, ±5% 110000-102
R169, R170
Resistor, A W, 4.7K 0, ±5% 110000-472
R171
Resistor, >4 W, 270 0, ± 5%
110000-271
R172
Resistor, >4 W, 12 0, ±5%
110000-123
R173
Resistor, >4 % 56 0, ± 5%
110000-563
R174
Resistor, A W, 10K 0, ± 5%
110000-103
R175
Resistor, ‘4 W, 8.2 0, ± 5% 110000-822
R176
Resistor, 14 W, 3-9K 0, ± 5%
110000-392
R177 Resistor, >4 W, 470 0, ± 5%
110000-471
R178
Resistor, >4 W, lKfi, ±5%
110000-102
RN1, RN2
Resistor Network, SIP, 10Kx8, 1/8 W
118002-103
Miscellaneous
VR1
Voltage Regulator, Type-7905
37-7905
Y1 Crystal, 20 MHz
144000-003
Y2 Crystal, 14.318 MHz 90-101
5/6 A
Switch, 8-Position, DIP
160031-008
6/7A
Switch, 8-Position, DIP
160031-008
5-23
