Super Sprint
Illustrated Parts Lists

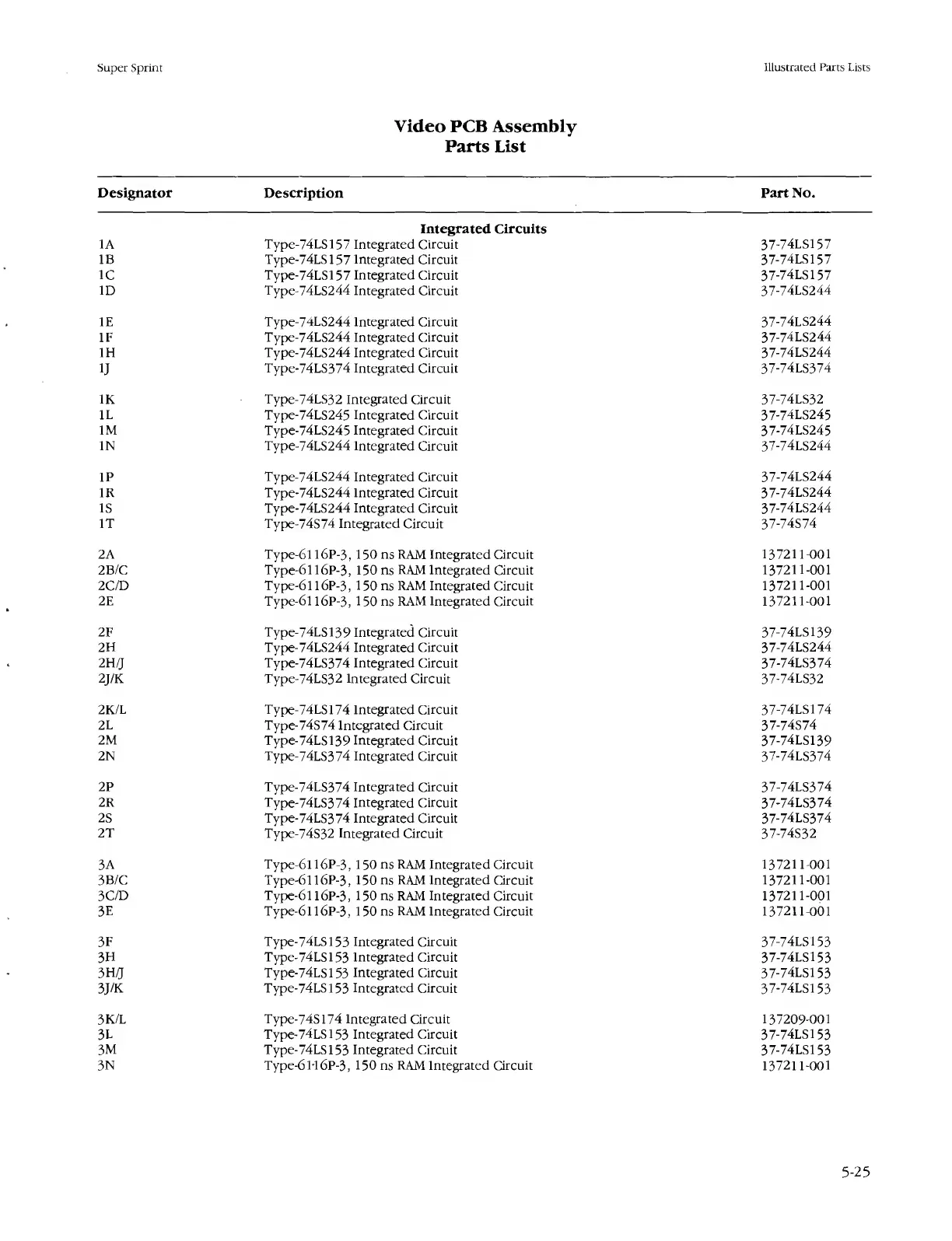

Video PCB Assembly
Parts List
Designator Description Part No.
1A
Integrated Circuits
Type-74LS157 Integrated Circuit 37-74LS157
IB
Type-74LS157 Integrated Circuit
37-74LS157
1C Type-74LS157 Integrated Circuit
37-74LS157
ID Type-74LS244 Integrated Circuit
37-74LS244
IE
Type-74LS244 Integrated Circuit
37-74LS244
IF
Type-74LS244 Integrated Circuit
37-74LS244
1H Type-74LS244 Integrated Circuit
37-74LS244
u
Type-74LS374 Integrated Circuit
37-74LS374
IK Type-74LS32 Integrated Circuit
37-74LS32
1L
Type-74LS245 Integrated Circuit
37-74LS245
1M
Type-74LS245 Integrated Circuit
37-74LS245
IN
Type-74LS244 Integrated Circuit 37-74LS244
IP
Type-74LS244 Integrated Circuit
37-74LS244
1R
Type-74LS244 Integrated Circuit
37-74LS244
IS Type-74LS244 Integrated Circuit
37-74LS244
IT Type-74S74 Integrated Circuit 37-74S74
2A
Type-6116P-3, 150 ns RAM Integrated Circuit
137211-001
2B/C
Type-6116P-3, 150 ns RAM Integrated Circuit
137211-001
2C/D
Type-6116P-3, 150 ns RAM Integrated Circuit
137211-001
2E
Type-6116P-3, 150 ns RAM Integrated Circuit 137211-001
2F
Type-74LS139 Integrated Circuit
37-74LS139
2H
Type-74LS244 Integrated Circuit
37-74LS244
2H/J
Type-74LS374 Integrated Circuit 37-74LS374
2J/K
Type-74LS32 Integrated Circuit
37-74LS32
2K/L
Type-74LS174 Integrated Circuit 37-74LS174
2L
Type-74S74 Integrated Circuit
37-74S74
2M
Type-74LS139 Integrated Circuit
37-74LS139
2N
Type-74LS374 Integrated Circuit 37-74LS374
2P
Type-74LS374 Integrated Circuit
37-74LS374
2R
Type-74LS374 Integrated Circuit
37-74LS374
2S Type-74LS374 Integrated Circuit
37-74LS374
2T
Type-74S32 Integrated Circuit 37-74S32
3A
Type-6l 16P-3, 150 ns RAM Integrated Circuit
137211-001
3B/C Type-6116P-3, 150 ns RAM Integrated Circuit
137211-001
3 C/D
Type-6116P-3, 150 ns RAM Integrated Circuit 137211-001
3E
Type-6116P-3, 150 ns RAM Integrated Circuit 137211-001
3F
Type-74LS153 Integrated Circuit
37-74LS153
3H
Type-74LS153 Integrated Circuit
37-74LS153
3H/J
Type-74LS153 Integrated Circuit 37-74LS153
3J/K
Type-74LS153 Integrated Circuit
37-74LS153
3K/L Type-74S174 Integrated Circuit 137209-001
3L
Type-74LS153 Integrated Circuit 37-74LS153
3M
Type-74LS153 Integrated Circuit
37-74LS153
3N
Type-6 M6P-3, 150 ns RAM Integrated Circuit 137211-001
