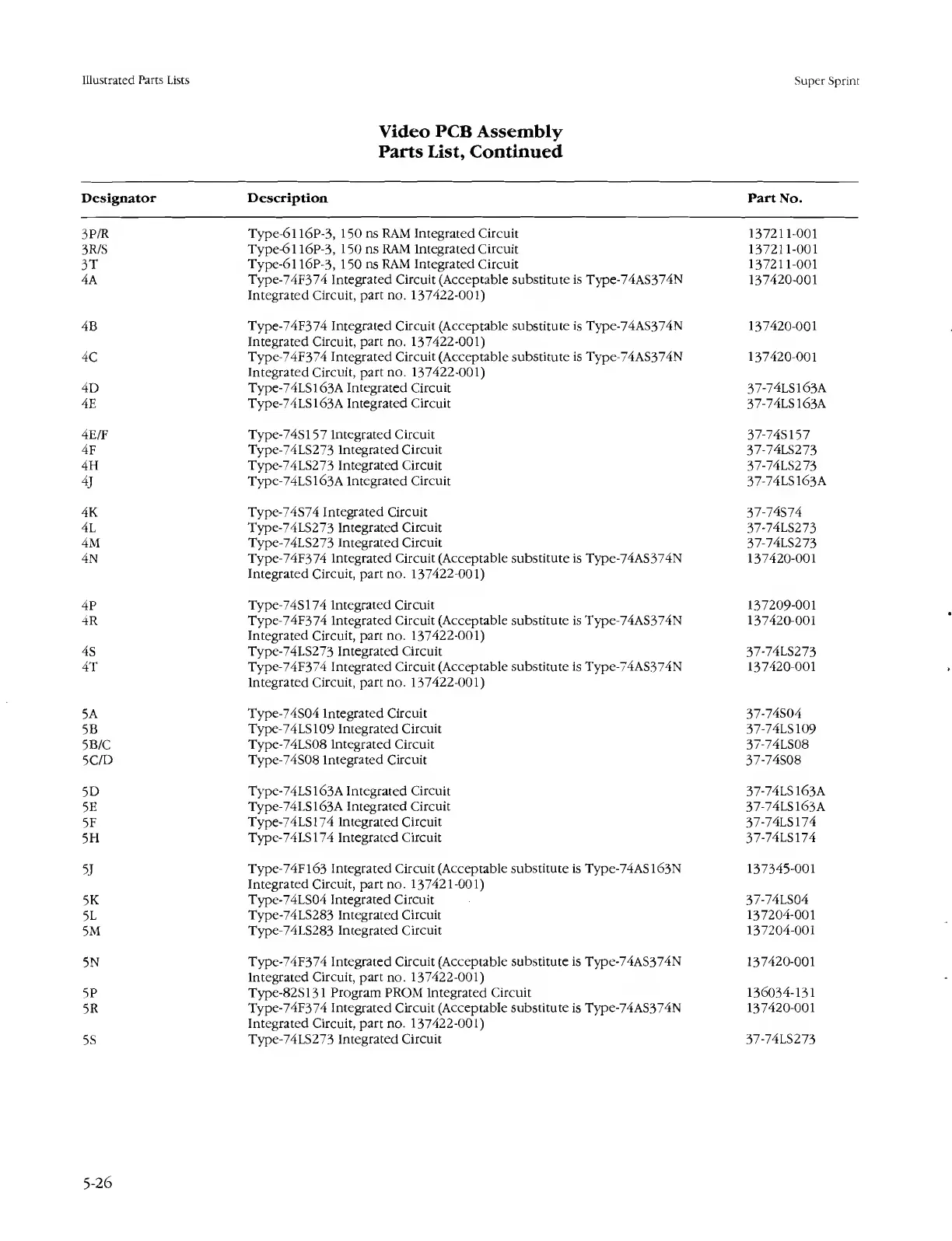

Atari SUPER SPRINT - Page 64

Illustrated Parts Lists
Super Sprint
Video PCB Assembly
Parts List, Continued
Designator Description Part No.
3P/R
Type-6116P-3, 150 ns RAM Integrated Circuit
137211-001
3R/S
Type- 6 1 1 6 P-3, 150 ns RAM Integrated Circuit 137211-001
3T
Type-6116P-3, 150 ns RAM Integrated Circuit 137211-001
4A Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
4B
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
4C
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
4D Type-74LS163A Integrated Circuit 37-74LS163A
4E
Type-74LS163A Integrated Circuit 37-74LS163A
4E/F
Type-74S157 Integrated Circuit
37-74S157
4F
Type-74LS273 Integrated Circuit
37-74LS273
4H
Type-74LS273 Integrated Circuit
37-74LS273
4J
Type-74LSl63A Integrated Circuit
37-74LS163A
4K
Type-74S74 Integrated Circuit
37-74S74
4L
Type-74LS273 Integrated Circuit
37-74LS273
4M Type-74LS273 Integrated Circuit
37-74LS273
4N
Type-74F374 Integrated Circuit (Acceptable substitute is Tvpe-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
4P
Type-74S174 Integrated Circuit
1.37209-001
4r Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
4S Type-74LS273 Integrated Circuit
37-74LS273
4T
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
5A
Type-74S04 Integrated Circuit
37-74S04
5B Type-74LS109 Integrated Circuit
37-74LS109
5B/C
Type-74LS08 Integrated Circuit 37-74LS08
5 C/D
Type-74S08 Integrated Circuit
37-74S08
5D
Type-74LSl63A Integrated Circuit 37-74LS163A
5E
Type-74LSl63A Integrated Circuit
37-74LS163A
5F
Type-74LS174 Integrated Circuit
37-74LS174
5H
Type-74LS174 Integrated Circuit 37-74LS174
5J
Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
5K Type-74LS04 Integrated Circuit
37-74LS04
5L Type-74LS283 Integrated Circuit
137204-001
5M
Type-74LS283 Integrated Circuit
137204-001
5N
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
5P
Type-82S131 Program PROM Integrated Circuit
136034-131
5R
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
5S
Type-74LS273 Integrated Circuit
37-74LS273
