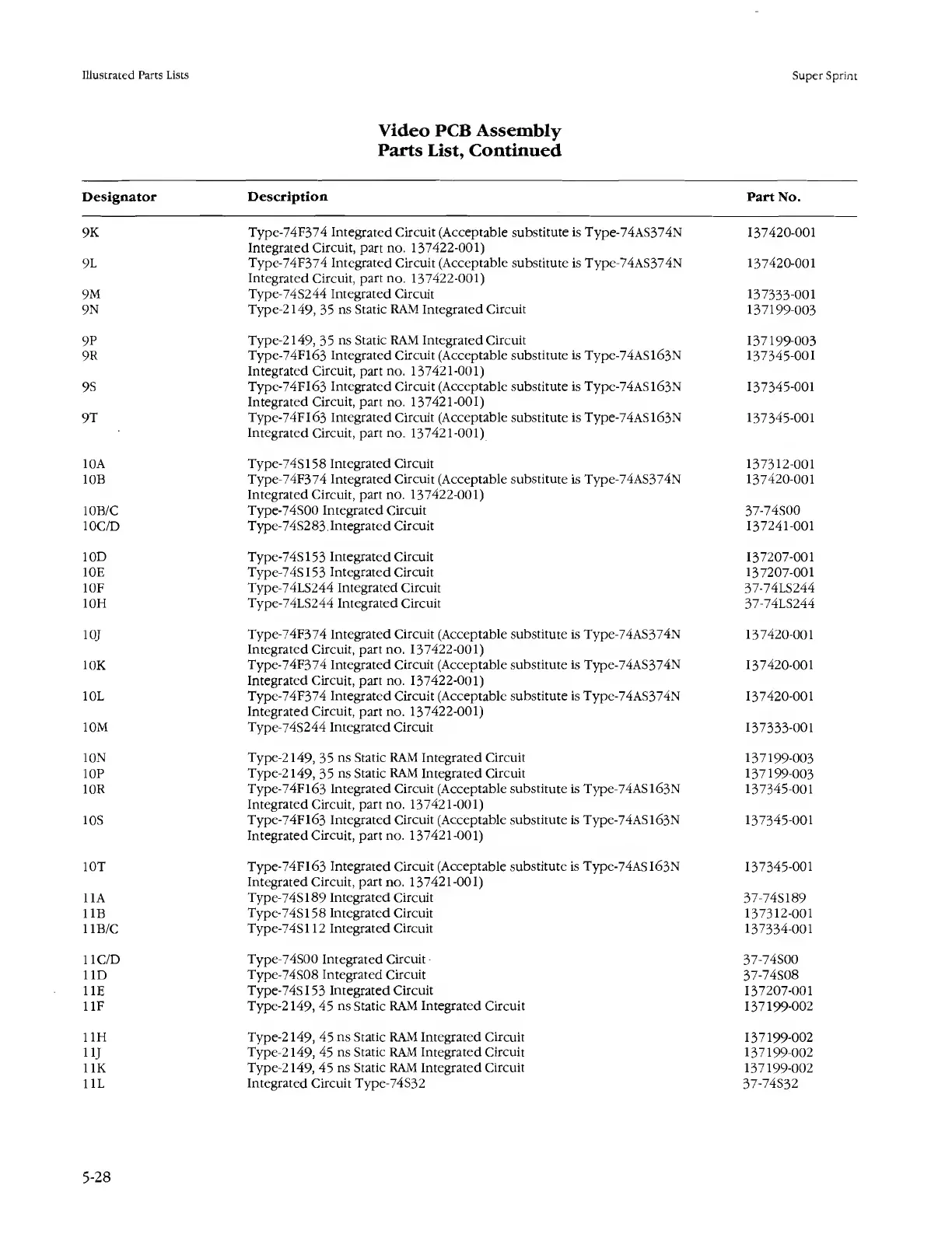

Video PCB Assembly
Parts List, Continued
Designator
Description
Part No.
9K Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
9L Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
9M Type-74S244 Integrated Circuit
137333-001
9N
Type-2149, 35 ns Static RAM Integrated Circuit
137199-003
9P
Type-2149, 35 ns Static RAM Integrated Circuit
137199-003
9R
Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
9S Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
9T Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
10A Type-74S 158 Integrated Circuit
137312-001
10B Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
10B/C
Type-74S00 Integrated Circuit 37-74S00
10C/D Type-74S283.Integrated Circuit
137241-001
10D
Type-74S153 Integrated Circuit
137207-001
10E
Type-74SI53 Integrated Circuit
137207-001
10F
Type-74LS244 Integrated Circuit
37-74LS244
10H Type-74LS244 Integrated Circuit
37-74LS244
10J
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
10K
Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
10L Type-74F374 Integrated Circuit (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
10M Type-74S244 Integrated Circuit
137333-001
ION
Type-2149, 35 ns Static RAM Integrated Circuit
137199-003
10P Type-2149, 35 ns Static RAM Integrated Circuit
137199-003
10R
Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
10S
Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
10T Type-74Fl63 Integrated Circuit (Acceptable substitute is Type-74ASl63N
Integrated Circuit, part no. 137421-001)
137345-001
11A Type-74S189 Integrated Circuit
37-74S189
1 IB
Type-74S158 Integrated Circuit
137312-001
11B/C
Type-74S112 Integrated Circuit
137334-001
11 C/D
Type-74S00 Integrated Circuit -
37-74S00
1 ID
Type-74S08 Integrated Circuit
37-74S08
he
Type-74S153 Integrated Circuit
137207-001
1 IF
Type-2149, 45 ns Static RAM Integrated Circuit
137199-002
11H
Type-2149, 45 ns Static RAM Integrated Circuit 137199-002
HJ
Type-2149, 45 ns Static RAM Integrated Circuit
137199-002
1 IK Type-2149, 45 ns Static RAM Integrated Circuit 137199-002
11L Integrated Circuit Type-74S32 37-74S32
