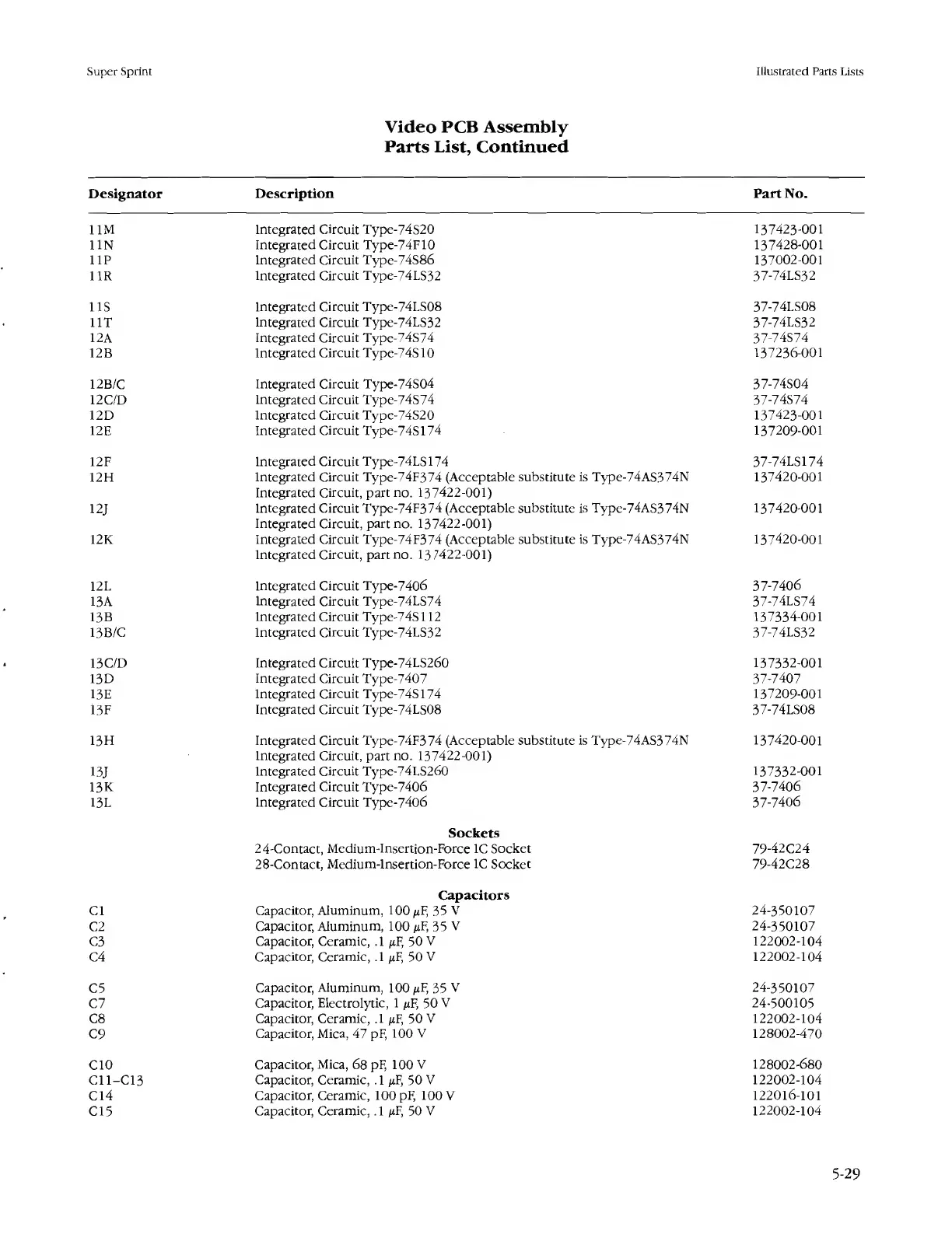

Atari SUPER SPRINT - Page 67

Super Sprint
Illustrated Parts Lists
Video PCB Assembly
Parts List, Continued
Designator
Description Part No.
11M
Integrated Circuit Type-74S20
137423-001
1 IN Integrated Circuit Type-74F10 137428-001
IIP
Integrated Circuit Type-74S86 137002-001
hr Integrated Circuit Type-74LS32
37-74LS32
1 IS
Integrated Circuit Type-74LS08
37-74LS08
1 IT
Integrated Circuit Type-74LS32
37-74LS32
12A
Integrated Circuit Type-74S74 37-74S74
12B
Integrated Circuit Type-74S10
137236-001
12B/C
Integrated Circuit Type-74S04 37-74S04
12 C/D
Integrated Circuit Type-74S74 37-74S74
12D
Integrated Circuit Type-74S20
137423-001
12E
Integrated Circuit Type-74S 174 137209-001
12F
Integrated Circuit Type-74LS174
37-74LS174
12H
Integrated Circuit Type-74F374 (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
12J
Integrated Circuit Type-74F374 (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
12K Integrated Circuit Type-74F374 (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
12L
Integrated Circuit Type-7406
37-7406
13A
Integrated Circuit Type-74LS74 37-74LS74
13B
Integrated Circuit Type-74S112
137334-001
13B/C
Integrated Circuit Type-74LS32
37-74LS32
13 C/D Integrated Circuit Type-74LS260 137332-001
13D Integrated Circuit Type-7407
37-7407
13E
Integrated Circuit Type-74S174
137209-001
13F
Integrated Circuit Type-74LS08
37-74LS08
13H Integrated Circuit Type-74F374 (Acceptable substitute is Type-74AS374N
Integrated Circuit, part no. 137422-001)
137420-001
13J
Integrated Circuit Type-74LS260 137332-001
13K Integrated Circuit Type-7406
37-7406
13L Integrated Circuit Type-7406
37-7406
Sockets
24-Contact, Medium-Insertion-Force IC Socket
79-42C24
28-Contact, Medium-Insertion-Force IC Socket 79-42C28
Capacitors
Cl
Capacitor, Aluminum, 100 /tF, 35 V
24-350107
C2
Capacitor, Aluminum, 100 /tF, 35 V 24-350107
C3
Capacitor, Ceramic, . 1 /tF, 50 V 122002-104
C4
Capacitor, Ceramic, . 1 /tF, 50 V
122002-104
C5
Capacitor, Aluminum, 100 /tF, 35 V
24-350107
C7
Capacitor, Electrolytic, 1 /tF, 50 V
24-500105
C8 Capacitor, Ceramic, . 1 /tF, 50 V 122002-104
C9
Capacitor, Mica, 47 pF, 100 V
128002-470
CIO Capacitor, Mica, 68 pF, 100 V
128002-680
C11-C13
Capacitor, Ceramic, . 1 /tF, 50 V 122002-104
04
Capacitor, Ceramic, lOOpF, 100 V
122016-101
05
Capacitor, Ceramic, .1 /tF, 50 V
122002-104
5-29
