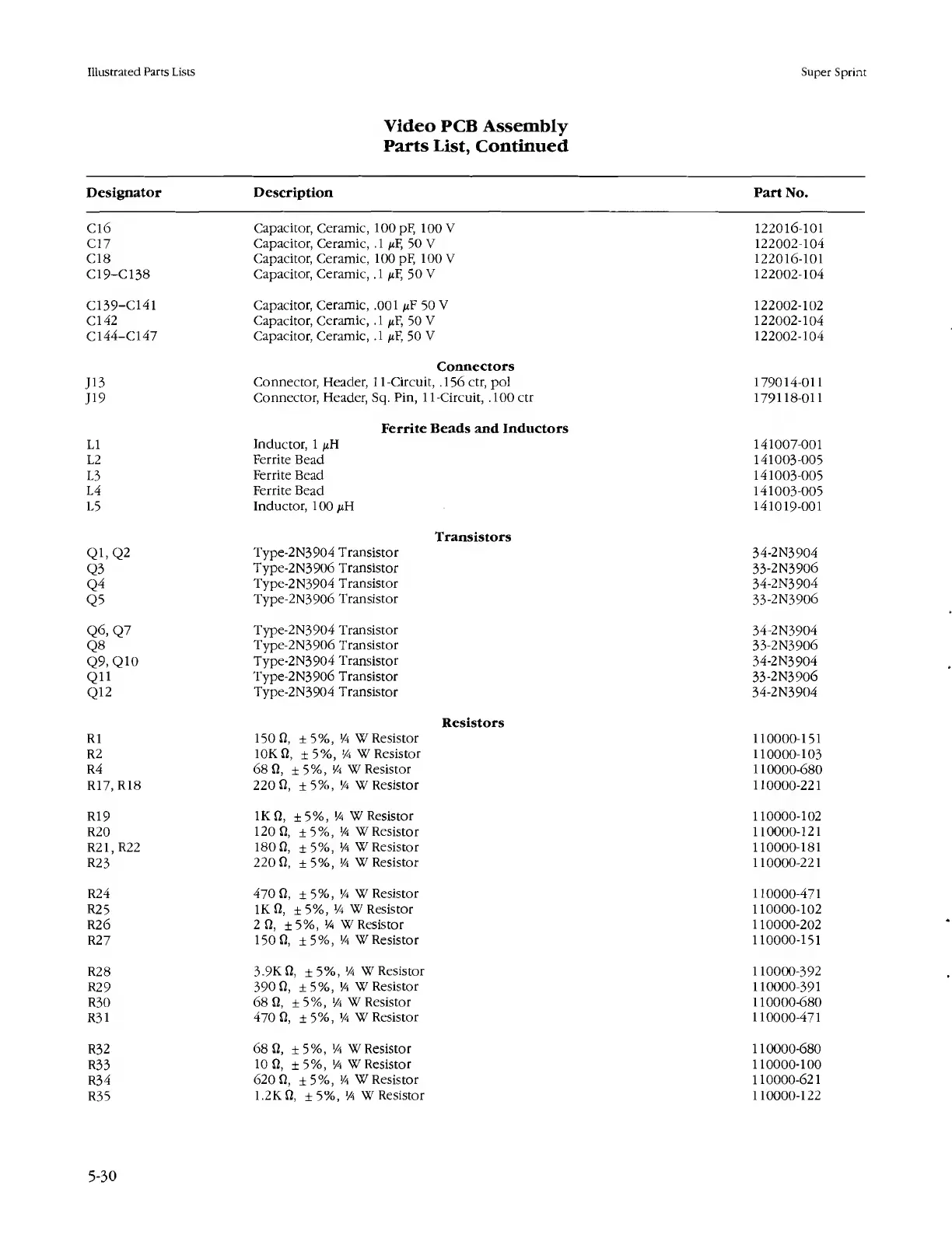

Atari SUPER SPRINT - Page 68

Illustrated Parts Lists
Super Sprint
Video PCB Assembly
Parts List, Continued
Designator Description
Part No.
Cl6
Capacitor, Ceramic, 100 pF, 100 V
122016-101
C17
Capacitor, Ceramic, .1 /*F, 50 V
122002-104
C18 Capacitor, Ceramic, 100 pF, 100 V
122016-101
C19-038
Capacitor, Ceramic, . 1 /tF, 50 V
122002-104
039-041
Capacitor, Ceramic, .001 /tF 50 V
122002-102
042 Capacitor, Ceramic, . 1 /tF, 50 V
122002-104
044-047 Capacitor, Ceramic, .1 /tF, 50 V 122002-104
Connectors
J13
Connector, Header, 11-Circuit, .156 ctr, pol
179014-011
J19
Connector, Header, Sq. Pin, 11-Circuit, .100 ctr
179118-011
Ferrite Beads and Inductors
LI
Inductor, 1 /tH
141007-001
L2 Ferrite Bead
141003-005
L3
Ferrite Bead
141003-005
L4
Ferrite Bead
141003-005
L5
Inductor, 100/tH
141019-001
Transistors
Q1.Q2
Type-2N3904 Transistor
34-2N3904
Q3
Type-2 N3906 Transistor 33-2N3906
Q4
Type-2N3904 Transistor 34-2N3904
Q5
Type-2N3906 Transistor 33-2N3906
Q6, Q7
Type-2N3904 Transistor
34-2N3904
Q8
Type-2N3906 Transistor
33-2N3906
Q9, Q10
Type-2 N3904 Transistor
34-2N3904
Qll
Type-2N3906 Transistor
33-2N3906
Q12
Type-2N3904 Transistor
34-2N3904
Resistors
R1
150 a, +5%, !4 W Resistor
110000-151
R2 10K (1, ± 5%, 54 W Resistor
110000-103
R4 68 ii, ±5%, ‘A W Resistor
110000-680
R17, R18
220 0, ±5%, 'A W Resistor
110000-221
R19
1K(1, +5%, 'A W Resistor 110000-102
R20
120 (1, ±5%, 'A W Resistor
110000-121
R21, R22 180(1, ±5%, 'A W Resistor 110000-181
R23
220(1, +5%, A W Resistor 110000-221
R24 470 (1, ±5%,'AW Resistor
110000-471
R25
IK (1, ±5%, 14 W Resistor
110000-102
R26 2(1, ±5%, 'A W Resistor
110000-202
R27
150(1, +5%, 'A W Resistor
110000-151
R28
3-9K (1, ±5%, 14 W Resistor
110000-392
R29
390(1, +5%, 14 W Resistor
110000-391
R30
68(1, +5%, 14 W Resistor 110000-680
R31
470(1, ±5%, 14 W Resistor
110000-471
R32 68(1, ±5%, ’A W Resistor
110000-680
R33
10(1, ±5%, 14 W Resistor
110000-100
R34
620(1, ±5%, 14 W Resistor
110000-621
R35
1,2K (1, ± 5%, 14 W Resistor
110000-122
