Super Sprint
Illustrated Parts Lists

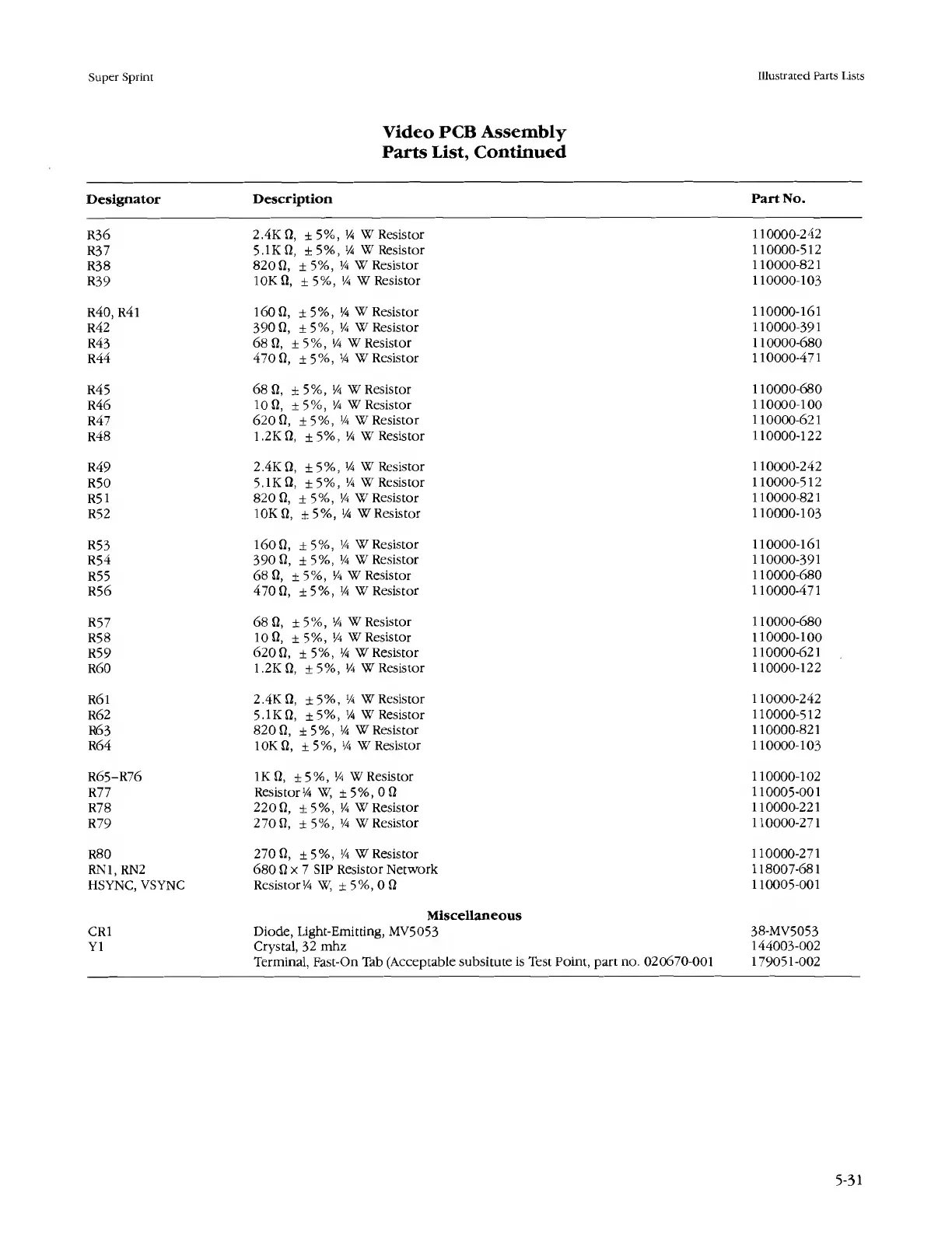

Video PCB Assembly
Parts List, Continued
Designator
Description
Part No.
R36 2.4K ft, ±5%, Vi W Resistor
110000-242
R37
5.IK ft, ± 5%. Vt W Resistor
110000-512
R38
820 ft. ± 5%, Vi W Resistor
110000-821
R39
10KQ, +5%, Vi W Resistor
110000-103
R40, R41
16012, + 5%, 'A W Resistor
110000-161
R42 390 Q, ± 5%, Vi W Resistor
110000-391
R43
68 12. ± 5 %, 'A W Resistor 110000-680
R44
47012, ±5%, Vi W Resistor
110000-471
R45
6812, ±5%, Vi W Resistor
110000-680
R46
1012, +5%, V* W Resistor 110000-100
R47
620 12, ± 5%, V4 W Resistor
110000-621
R48 1.2K12, ± 5%, ‘/4 W Resistor
110000-122
R49
2.4K 12, ±5%, Vi W Resistor
110000-242
R50
5.IK 12, +5%, '/4 W Resistor
110000-512
R51
820 12, + 5%, Vi W Resistor
110000-821
R52 10K12, ±5%, Vi W Resistor 110000-103
R53
160 0, ± 5%, V4 W Resistor
110000-161
R54
390 12, +5%, '/4 W Resistor
110000-391
R55
68 12, +5%, ‘/4 W Resistor
110000-680
R56 47012, +5%, '/4 W Resistor
110000-471
R57
6812, ± 5%, 14 W Resistor
110000-680
R58 1012, +5%, ‘/4 W Resistor
110000-100
R59
62012, ±5%, 14 W Resistor
110000-621
R60
1.2K0, +5%, !4 W Resistor
110000-122
R6l
2.4K12, ±5%, 14 W Resistor
110000-242
R62 5.1K12, ±5%, Vi W Resistor
110000-512
R63
820 0, +5%, 14 W Resistor
110000-821
R64
10KO, +5%, Vi W Resistor
110000-103
R65-R76 IK 0, + 5%, Vi W Resistor
110000-102
R77 ResistorV4 W, ±5%, 0 0
110005-001
R78
220 0, +5%, !4 W Resistor
110000-221
R79
270 0, ±5%, Vi W Resistor
110000-271
R80 270 0, +5%, 14 W Resistor
110000-271
RN1.RN2 680 0x7 SIP Resistor Network
118007-681
HSYNC, VSYNC
Resistor 14 W, ± 5%, 0 0
110005-001
Miscellaneous
CR1
Diode, Light-Emitting, MV5053
38-MV5053
Y1 Crystal, 32 mhz
144003-002
Terminal, Fast-On Tab (Acceptable subsitute is Test Point, part no. 020670-001 179051-002
5-31
