23 Rev. 00
! ! CAUTION ! !
ATLA COOP shall not be liable for incidental or
consequential damages resulting from the failure to use
the machine in accordance with these environmental
conditions or in conditions not foreseen in these
instructions. Contact ATLA COOP for assistance in case
of use under different climatic conditions.
4.5 Installation
After having unpacked the machine install it as follows:
— Make the machine perfectly level in the installation site
— Connect the machine to the the air supply connecting the air pipe (Ø inside = 7,5 mm) to the
relevant connection (1, fig. 4.2) on the pressure regulator (2)
— Regulate the inlet pressure with the regulator (3).
4.6 Required installation characteristics

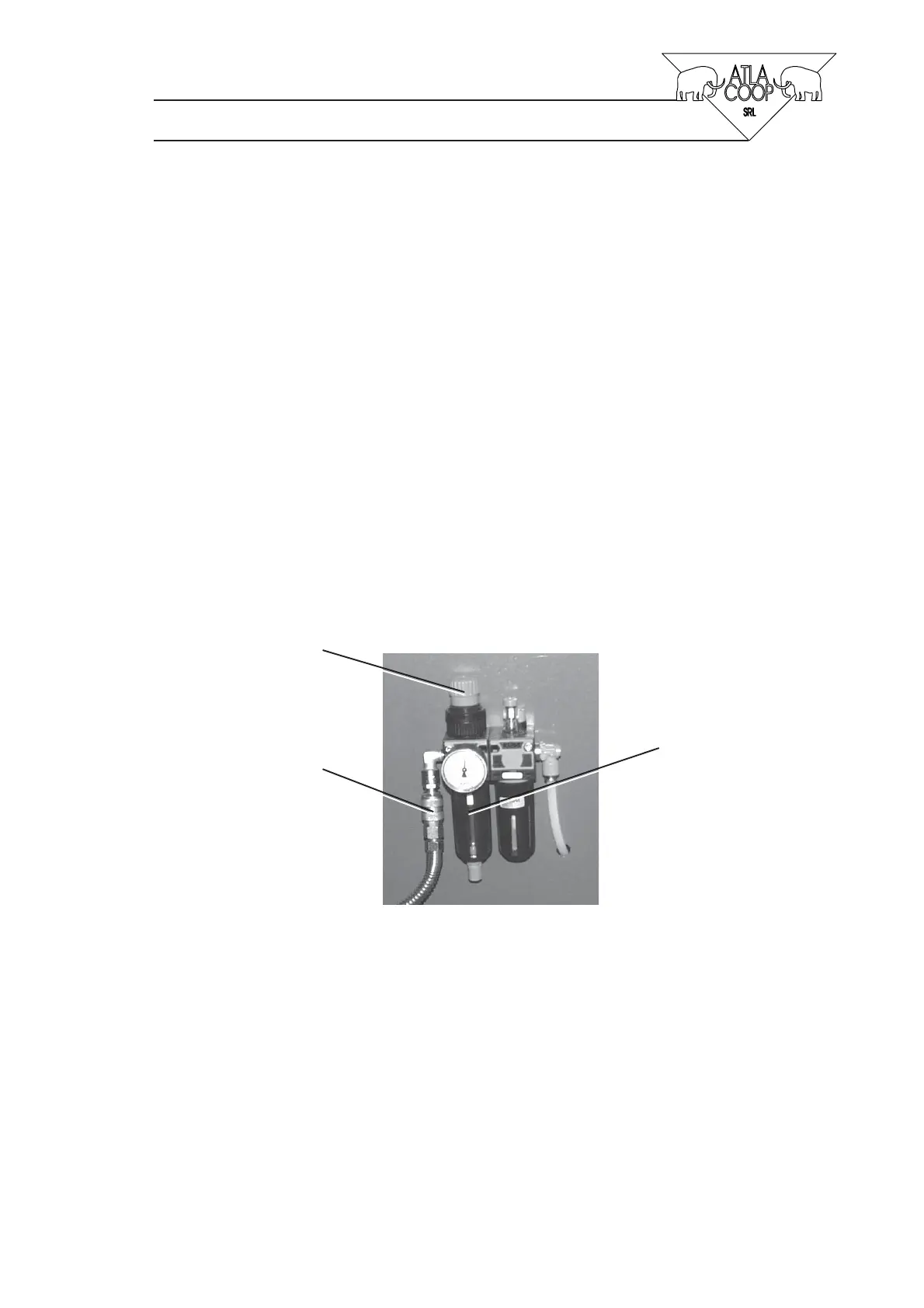

Fig. 4.2
2
3
1
The installation of the machine requires only the air supply. The required characteristics of the
power supplied are as follows:
— Air supply with pressure 6÷7 bar ± 10% with quick-coupling connections,
max. absorption: 9 l/corner.
