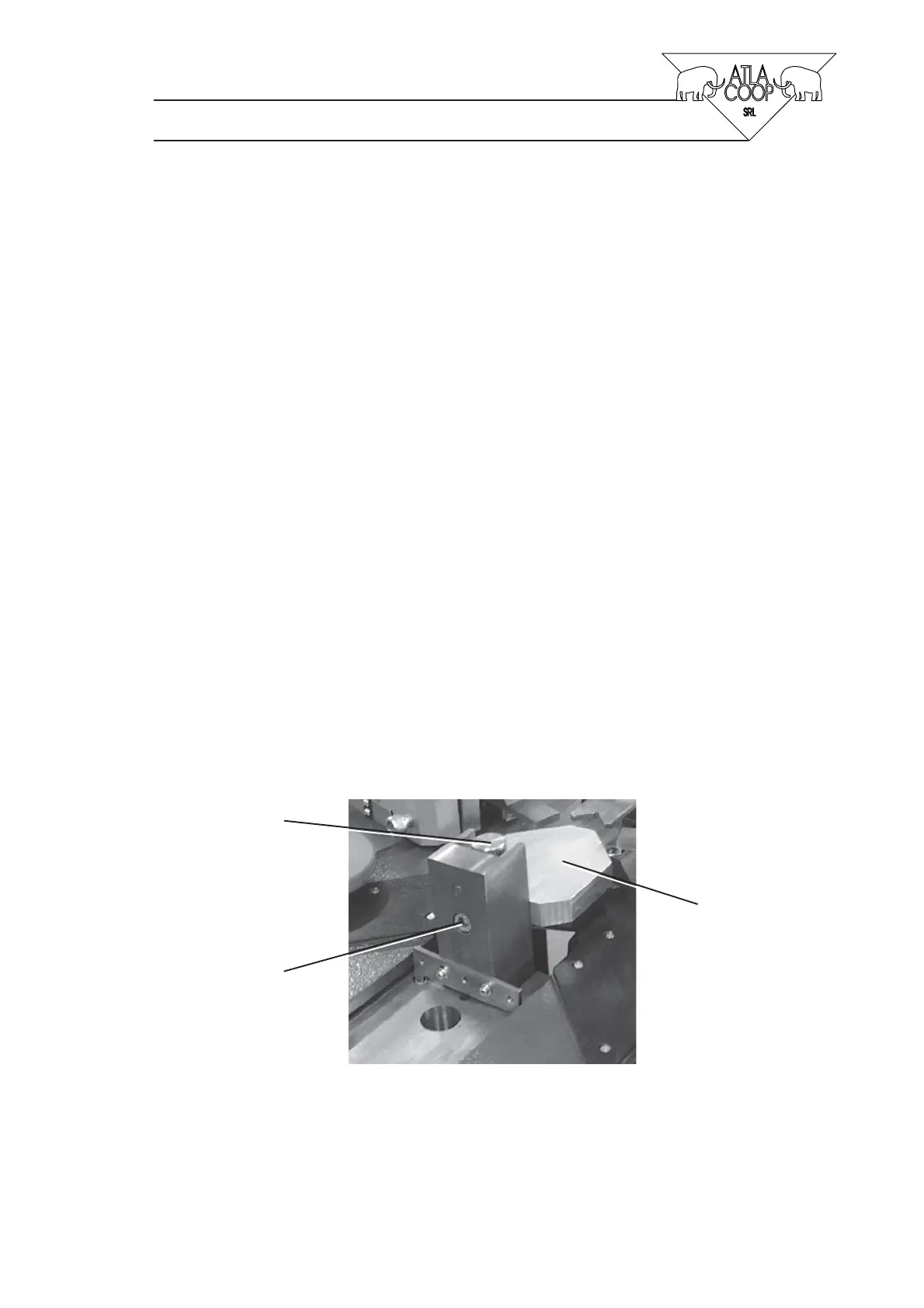

Fig. 5.5
3
1
2
5.5.3 HOW TO MOUNT AND ADJUST THE BRACING CLAMP
— By closed safety guard activate the bracing clamp through the left pedal (1, fig. 5.1) locking it.
— Open the safety guard to move backward the bracing clamp.
! ! ! WARNING ! ! !
Do not interfere in the area of bracing clamp's movement,
by opening the safety guard the bracing clamp goes back
without re-entering in the machine bed.
— Loose the screw (1, fig. 5.5) which blocks the bracing clamp(2).
— Insert the bracing clamp (2) into the holding catch (3).
— Position a sample profile on the worktable in front of the bracing clamp and adjust the height
according to the profile.
— Fasten the bracing clamp by tightening the screw (1).
— Remove the profile and close the safety guard.
— Release the left pedal to move the bracing clamp downwards into the machine bed.
