ATLA COOP GAMMA User Manual

38 Rev. 00
7.2.3 CONTROL OF THE OIL LEVEL IN THE AIR REGULATOR AND
FILLING UP
— Through the openings (1, fig. 7.2) of the oil tank (2) check the oil level.
— If the oil level is visible (<5 cm) it is necessary to fill the tank as described below:
— Disconnect the air pipe from the connection (quick coupling).
— Open the valve (3) in order to release possible residual air.
— With the special pin wrench grip the openings and loose the tank (2) after that take off the tank
— Fill the tank with oil (use oil for pneumatic appliances), viscosity grade VG33 (ISO 3448), we
suggest SHELL-DONAX TA or similar.
— Remount everything and fasten the valve (3).

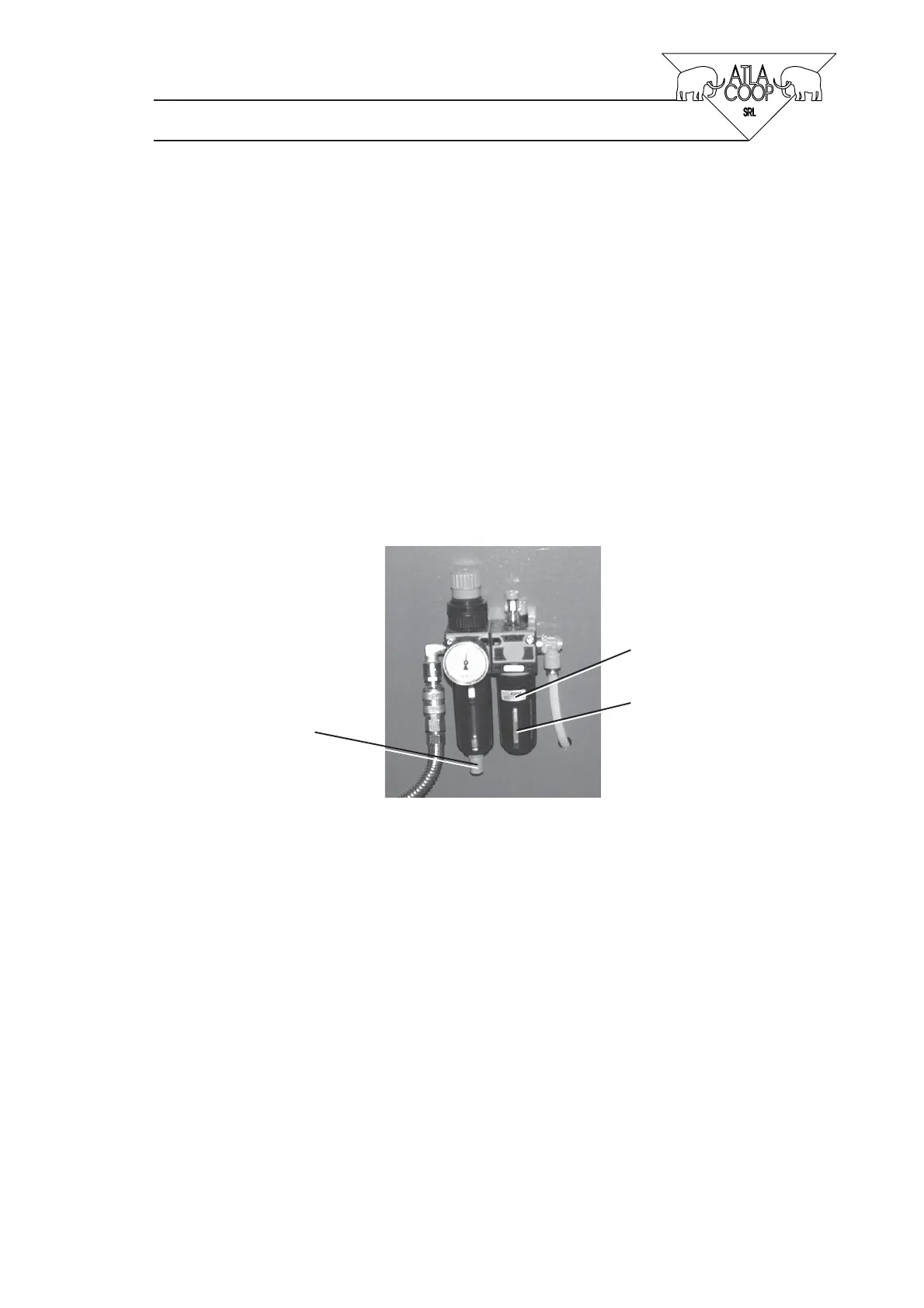

Fig. 7.2
3
2
1
