5.2 Other commands on the crimping machine

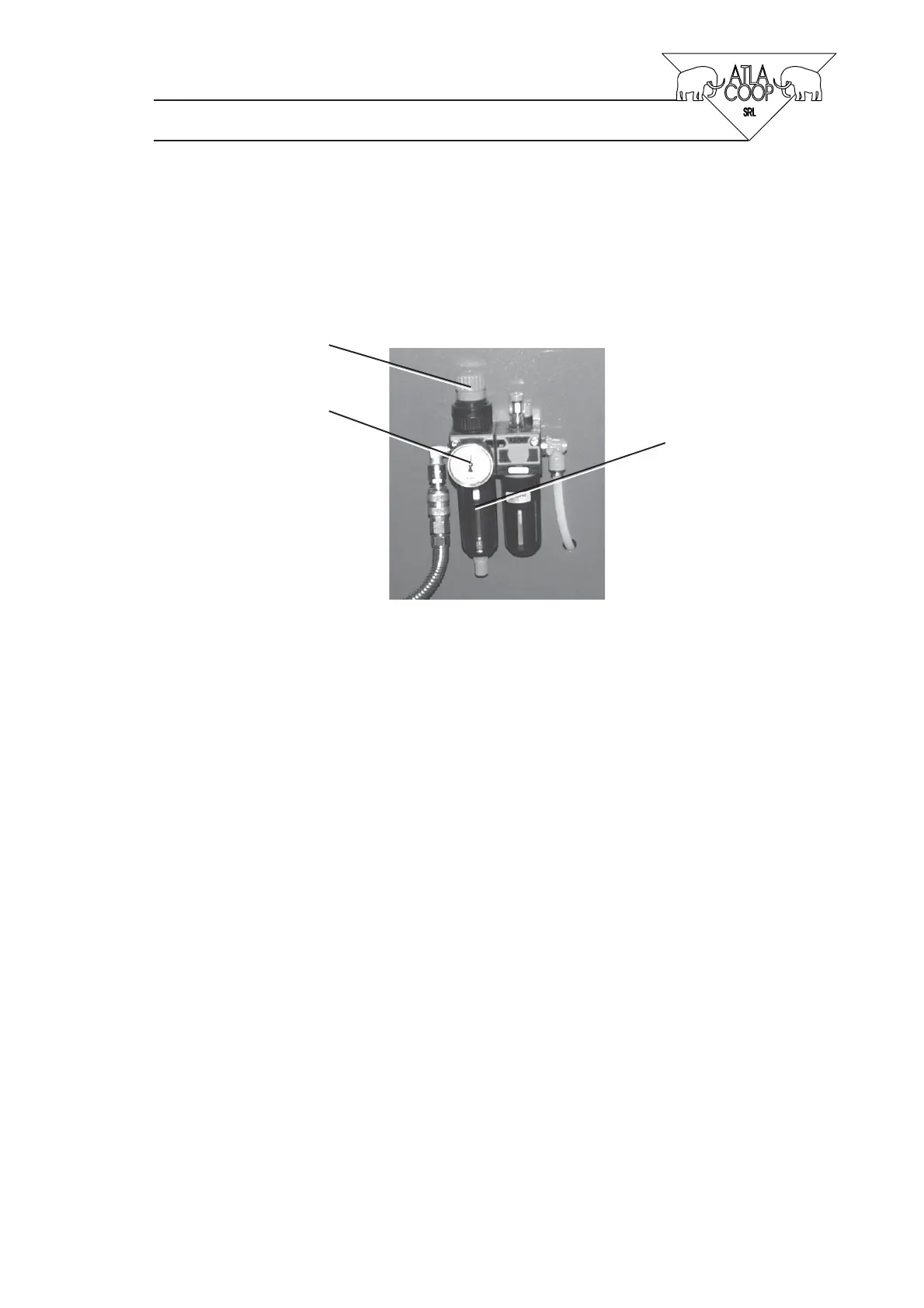

Besides the foot pedals the machine is equipped with a pressure regulator (1, fig. 5.2) for the
regulation of the inlet pressure. The operator can regulate the pressure through the adjusting knob
(2) and control his value with the gauge. (3).
Fig. 5.2
5.3 How to start on and stop the machine
5.3.1 TURNING ON
— Connect the machine to the air supply.
— Assure that the inlet pressure is 6 bar.
— Position the profile as described in paragraph 5.5.
5.3.2 TURNING OFF
Because of the simplicity of the machine and the functioning's type the turning off at the end of work
shift is reached by disconnecting the machine from the air supply through the relevant quick coupling
when the machine has finished the crimping cycle and the bracing clamp is in home position.
