5.5.2 HOW TO ADJUST THE ECCENTRIC GUIDES
— Open the safety guard.
— Loose the screws (1, fig. 5.4) and swing outwards the eccentric guides (2).
— Insert a sample profile into the machine and press it against the reference forks.
— Regulate the profile corner on both sides paralell to the worktable .
— Swing the eccentric guides until they lean against the profile.
— Fix the eccentric guides by tightening the screws (1).

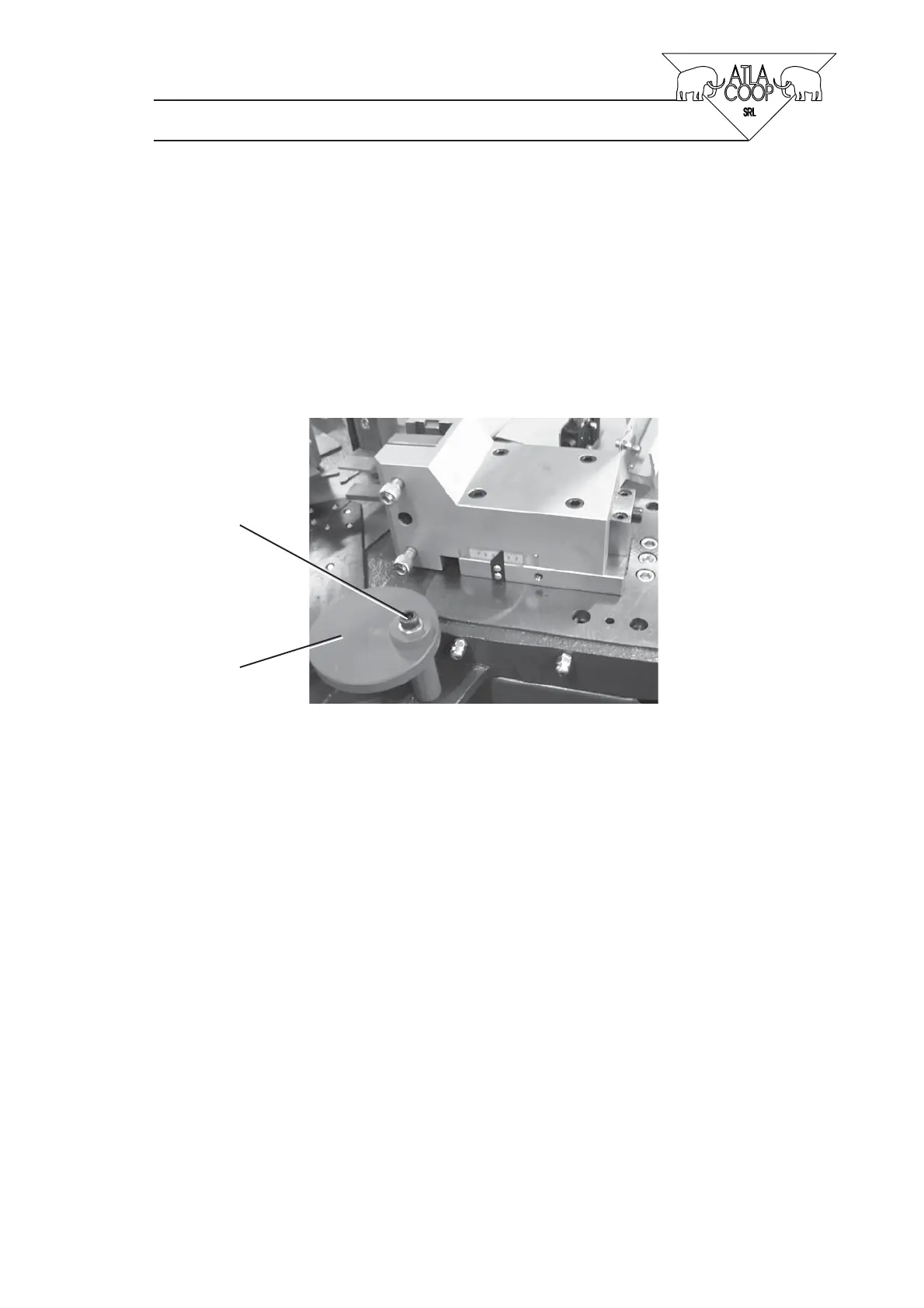

Fig. 5.4
1
2
