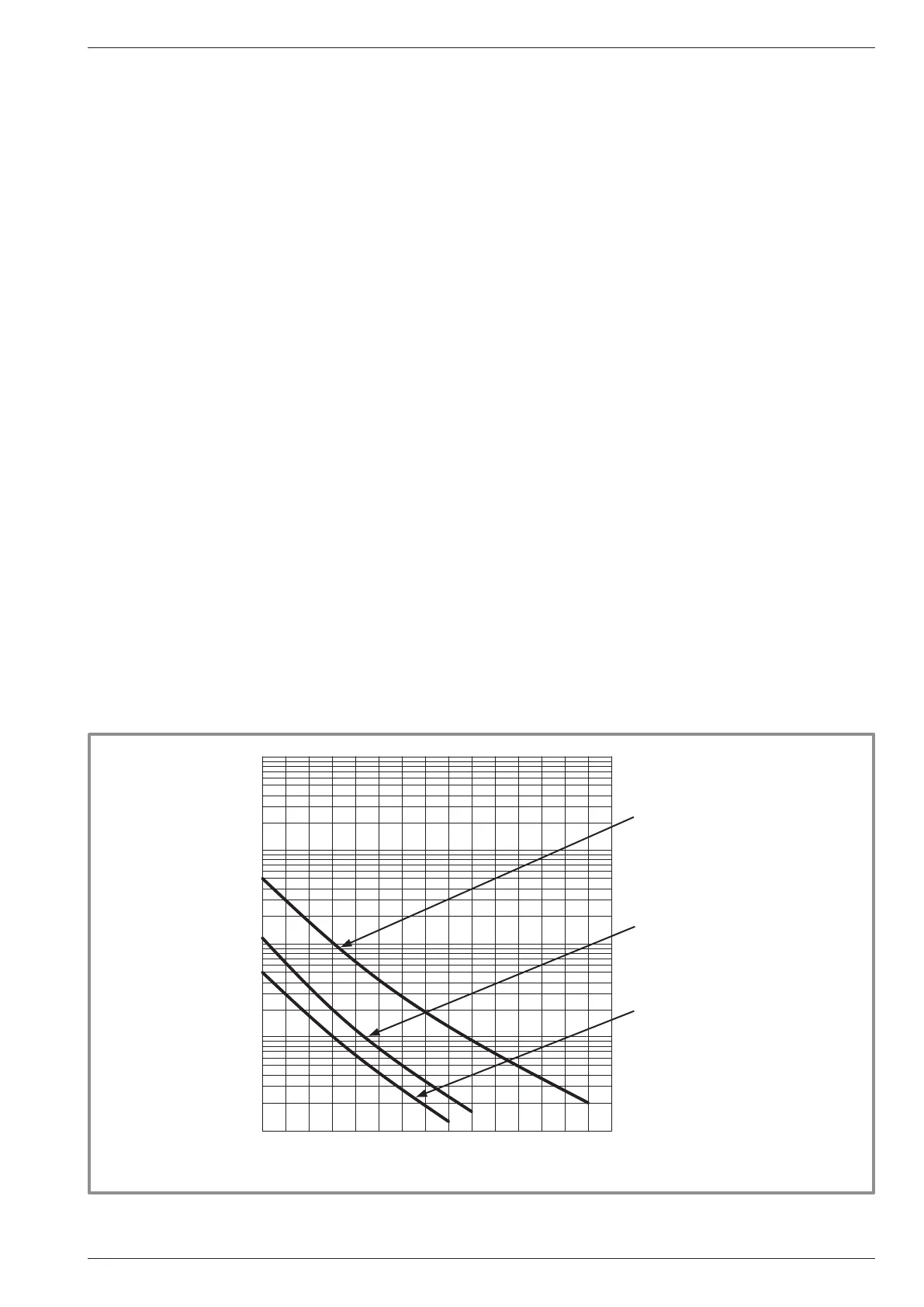

gure 7 - Ohmic sensor values (Outdoor unit)
-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130
10000
1000
100
10
1
- Compressor.
- Discharge.
- Condensation.
- Expansion valve.
- Evaporator inlet.
- Outdoor
Temperature °C
Ohmic value (kΩ)
