1.5 Description

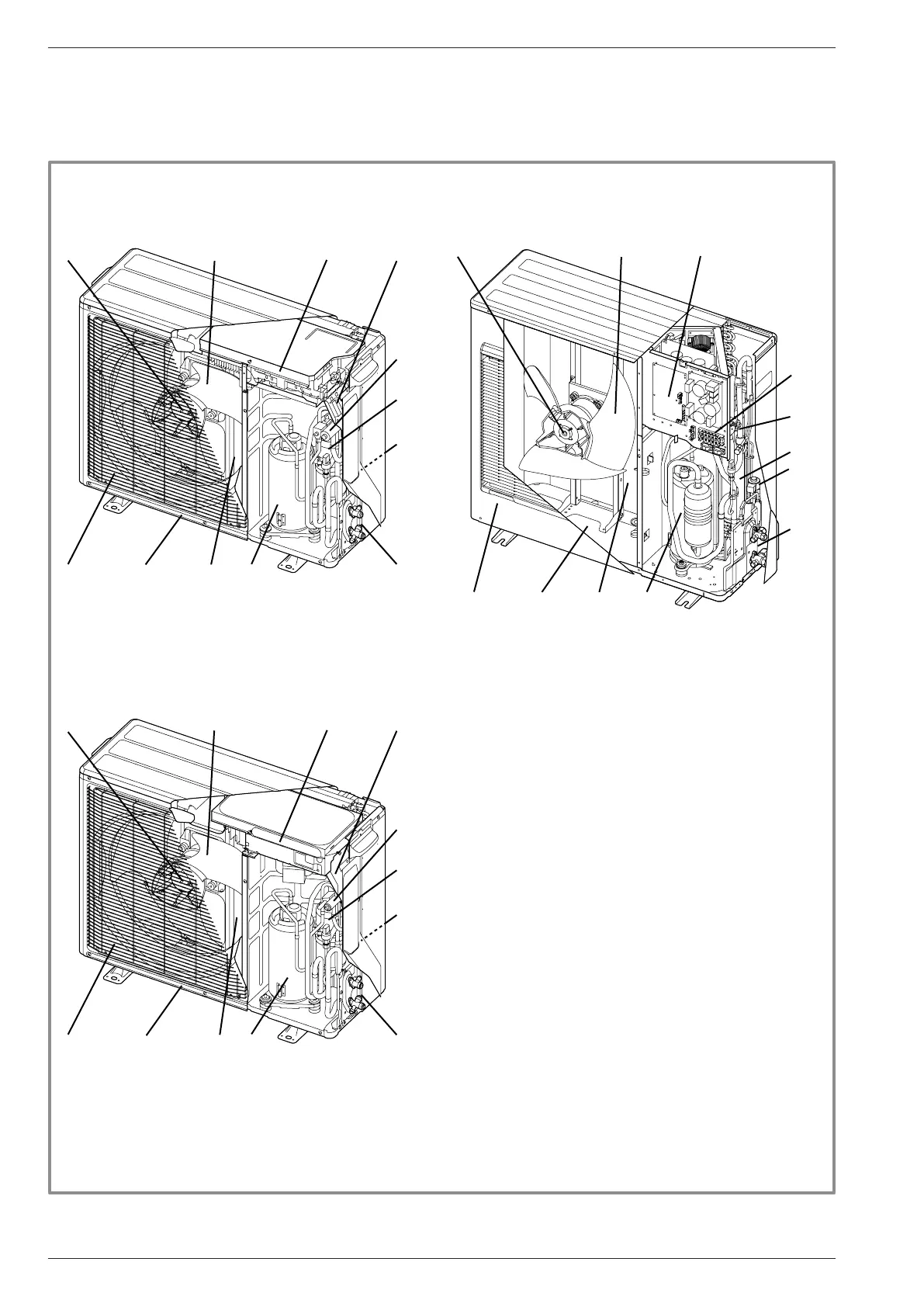

gure 8 - Outdoor unit components
1
2
3
4
6
5
8
10
9
1211
7
1
2
3
4
6
5
10
9
1211
7
8
1
2
3
4
6
5
8
10
9
1211
7
Key:
1 - High performance and low noise impeller.
2 - Electrical motor with variable "inverter" operation.
3 - "Inverter" control unit.
4 - Connection terminal blocks
(power supply and interconnection).
5 - Refrigerant storage bottle.
6 - 4-way valve.
7 - Anti-corrosion treated bodywork.
8 - Main circuit electronic expansion valve.
9 - Noise and thermally insulated "inverter" compressor.
10 - Refrigeration connection valves (ared connectors) with
protective caps.
11 - Holding tank with condensate drain hole.
12 - High-performance exchange surface evaporator;
anti-corrosion treated hydrophilic aluminium ns and
grooved copper tubes.
Installation and Operating Manual "1821- EN"
Alféa Extensa Duo A.I. Heat Pump
- 12 -
" Alféa Extensa Duo A.I. 5 and
6
" Alféa Extensa Duo A.I. 8
" Alféa Extensa Duo A.I. 10
