5.2 Electrical connections
on the outdoor unit side
Access to connection terminals:
• Alféa Extensa Duo A.I. models 5, 6 and 8
- Remove the cowl.
• Alféa Extensa Duo A.I. model 10
- Remove the front panel and cowl.
- Make the connections according to the diagram (gure 34).
- Use cable clamps to prevent any power cables from
being disconnected accidentally.
- Fill in the space where the cables enter the outdoor
unit with the insulating plate.
Remove the cap
(1 screw)
Brackets (4 places)
Remove the
front panel
(2 screws)
Bracket
(3 places)
Déposer le capot
(2 vis)
Crochets
(4 endroits)
Câbles
Serre-Câble
Hooks
(x3)
Hooks (x4)
Remove the cowl
(1 screw)
Remove the front panel
(2 screws)

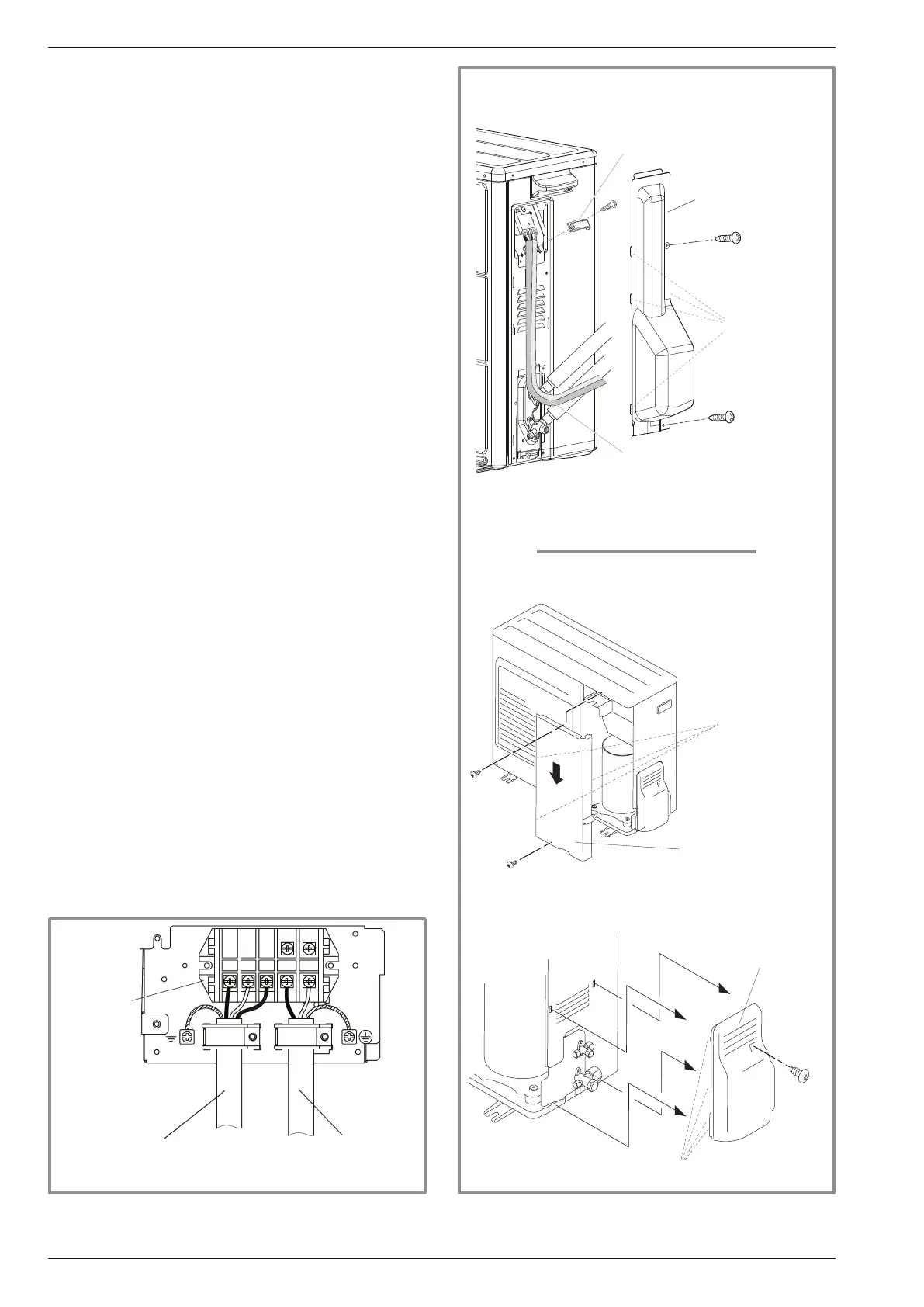

gure 34 - Connections to outdoor unit's terminal block gure 35 - Access to outdoor unit's terminal block
Hooks
(4 places)
Cable clamp
Cable
Remove the cowl
(2 screws)
General power cable
Interconnection
between outdoor unit
and hydraulic unit
Terminal
Installation and Operating Manual "1821- EN"
Alféa Extensa Duo A.I. Heat Pump
- 38 -
" Alféa Extensa Duo A.I. 5, 6 and 8
" Alféa Extensa Duo A.I. 10
