2.2 Installation of the outdoor unit
2.2.1 Installation precautions
" The outdoor unit must only be installed
outside. If a shelter is required, it must have
broad openings on all 4 sides and installation
clearances must be observed (gure 13).
• Choose the location of the appliance after discussion
with the client.
• We recommend choosing a site that is sunny but
sheltered from strong cold prevailing winds.
• The unit must be easily accessible for future installation
and maintenance work (gure 13).
• Ensure that connections to the hydraulic unit can be
made easily.
• The outdoor unit is able to withstand bad weather but
avoid installing it in a position where it is likely to be
exposed to signicant dirt or owing water (e.g. under
a broken gutter).
• Water may ow out of the outdoor unit when it is
operating. Do not install the unit on a paved terrace;
choose a well-drained location (e.g. gravel or sand).
If installation is carried out in an area where the
temperature stays below 0°C for long periods, check
that the presence of ice does not present any danger.
A drainage pipe can also be connected to the outdoor
unit (gure 14).
• Nothing should obstruct the air circulation through the
evaporator and out from the fan (gure 13).
• Keep the outdoor unit away from heat sources and
ammable products.

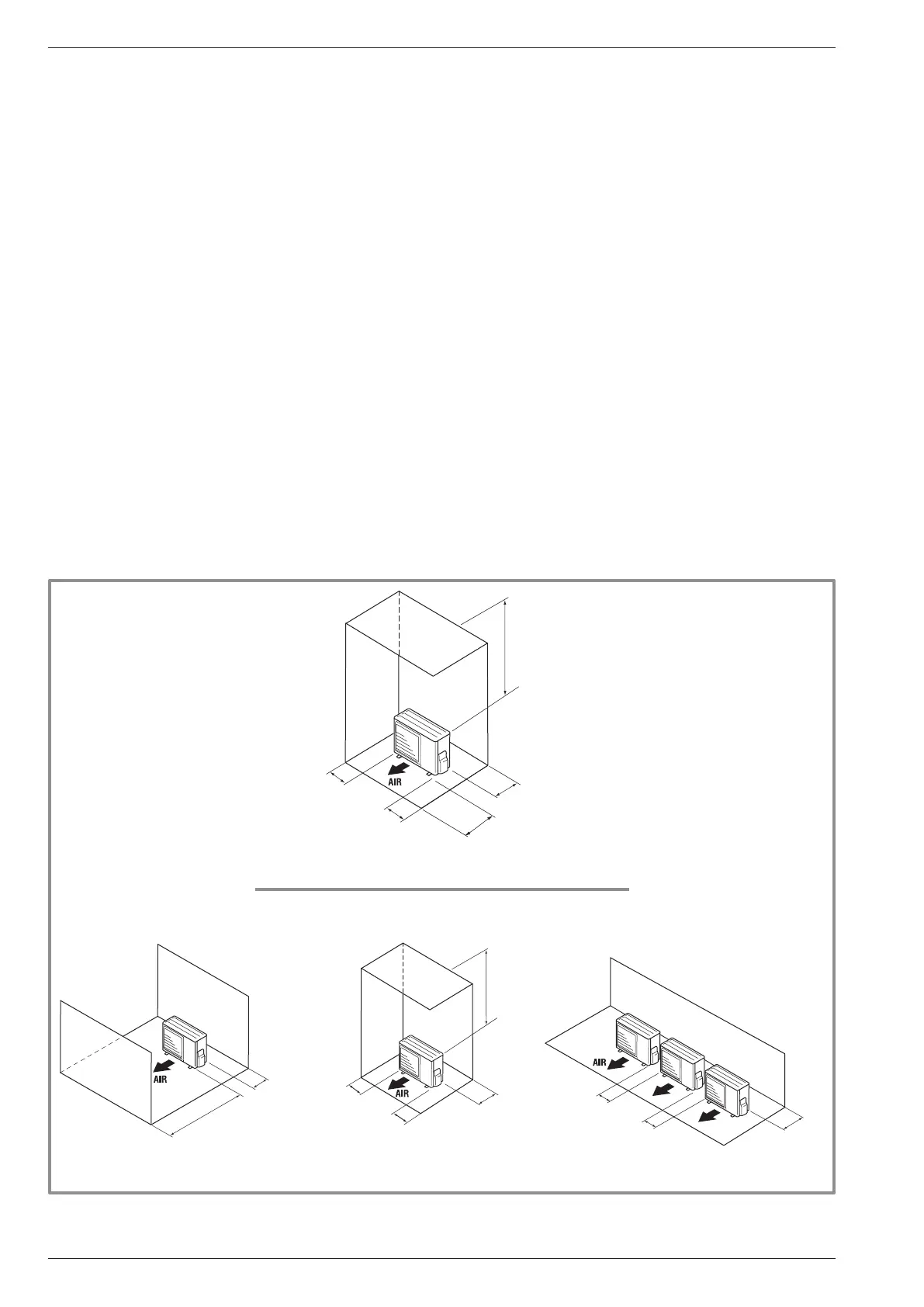

gure 13 - Minimum installation clearances around the outdoor unit
600 mm
or more
100 mm
or more
250 mm or more
(Service space)
100 mm
or more
300 mm
or more
600 mm or more
250 mm
or more
250 mm
or more
300 mm
or more
600 mm or more
100 mm
or more
100 mm
or more
300 mm or more
(Service space)
300 mm
or more
" Alféa Extensa Duo A.I. 5, 6 and 8
" Alféa Extensa Duo A.I. 10
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
