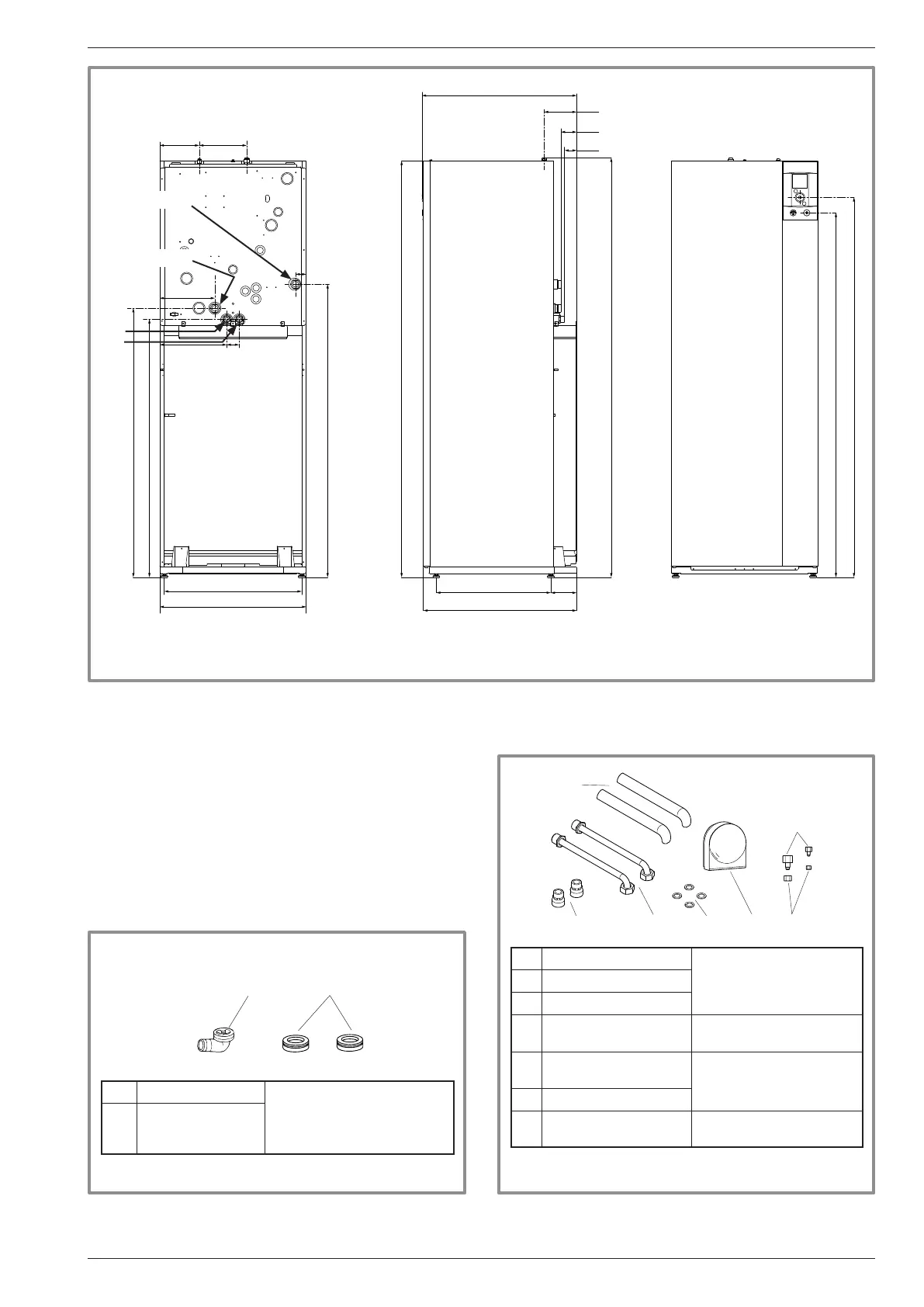

gure 2 - Dimensions in mm
Space requirements of the hydraulic unit, see gure 15, page 20.
Back view
Heating ow.
DHW
DCW
Heating return.
Side view Front view
" Hydraulic unit
gure 3 - Accessories provided with the outdoor unit gure 4 - Accessories provided with the hydraulic unit
1*
2*
3**
1* Elbow
for condensate evacuation.
2*
Plugs (x2)
(depending on
model)
* only for Alféa Extensa Duo A.I. 10.
1 Dielectric connections
for connections to the
DHW circuit
2 DCW pipes
3 Gaskets
4 Outside sensor
to monitor the outside
temperature
5
Adapter 1/2" - 5/8"
and/or 1/4" - 3/8"
for ared connections
to the hydraulic unit
(depending on model).
6 Nut 1/2" and/or 1/4"
10 Insulation tube
to insulate connections
and tubes
64
10
9
5
3
2
8
1
7
