2 General description
2.1 Introduction
Introduction
GA 5 VSD up to GA 11 VSD are single-stage, oil-injected screw compressors driven by an
electric motor. The compressors are air-cooled.
GA Workplace
GA Workplace are enclosed in a sound-insulated bodywork. The compressors are controlled by
the Atlas Copco Elektronikon® II regulator. The electronic control module is fitted to the door on
the front side. An electric cabinet comprising the motor starter is located behind this panel.
Tank-mounted version
The compressors are mounted on an air receiver.

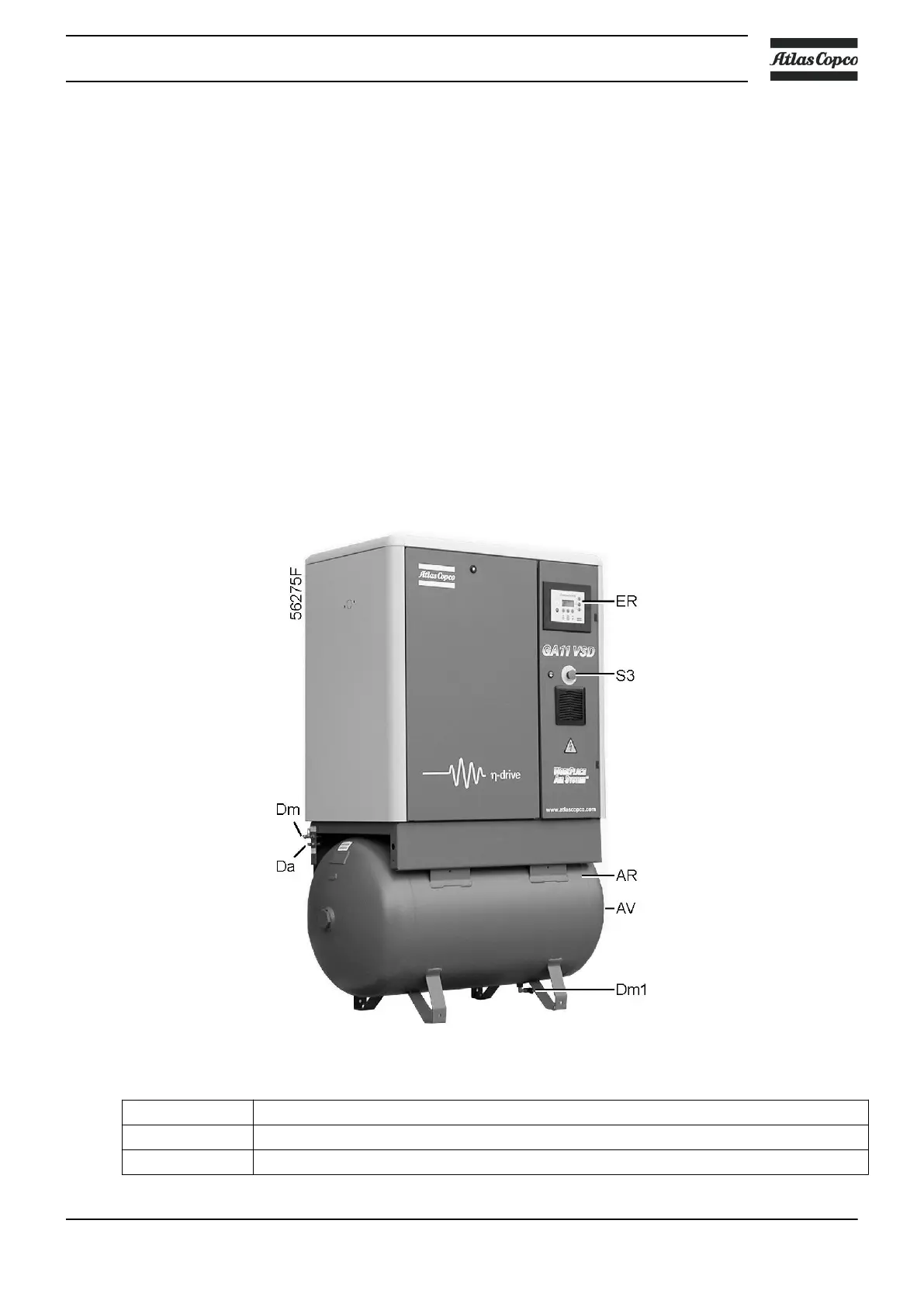

Front view, GA 5 VSD up to GA 11 VSD Tank-mounted (typical example)
Ref. Name
AR Air receiver
AV Air outlet valve
Instruction book
API161475 11
