• Press the key ‘Menu’ (F1).
• Press the arrow down key (1) until ‘Modify Params’ is followed by a horizontal arrow.
• Activate the menu by pressing the tabulator key (2).
• The first item ‘Compr. Motor’ will be followed by a horizontal arrow.
• Press the tabulator key (2): the first item ‘Setpoint 1’ and its setting will appear.
• Press the arrow down key (1) until the parameter to be modified is followed by a horizontal
arrow.
Modifying the net pressure set-points
If desired, the operator can program two set-points (‘Setpoint 1’ and ‘Setpoint 2’).
• Consult the steps above to select ‘Setpoint 1’.
•
‘Setpoint 1’
bar 7.0
.
‘Menu’ ‘Mod.’
F1 F2 F3
• The screen shows that the current setting is 7.0 bar(e). To modify this setting, press the key
‘Mod.’ (F2); the setting will flash.
• The key ‘Lim.’ (F2) can be used to find out the limitations for the parameter.
• Use the scroll keys (1) to change the setting.
• Press the key ‘Prog’ (F1) to program the new value or the key ‘Canc’ (F3) to cancel the
modification operation.
• The procedure to modify ‘Setpoint 2’ is similar.
The regulator will not accept new values beyond the limits. Press the key ‘Lim.’ to check the
limitations for the parameter. Consult section Programmable settings for the most important
settings.

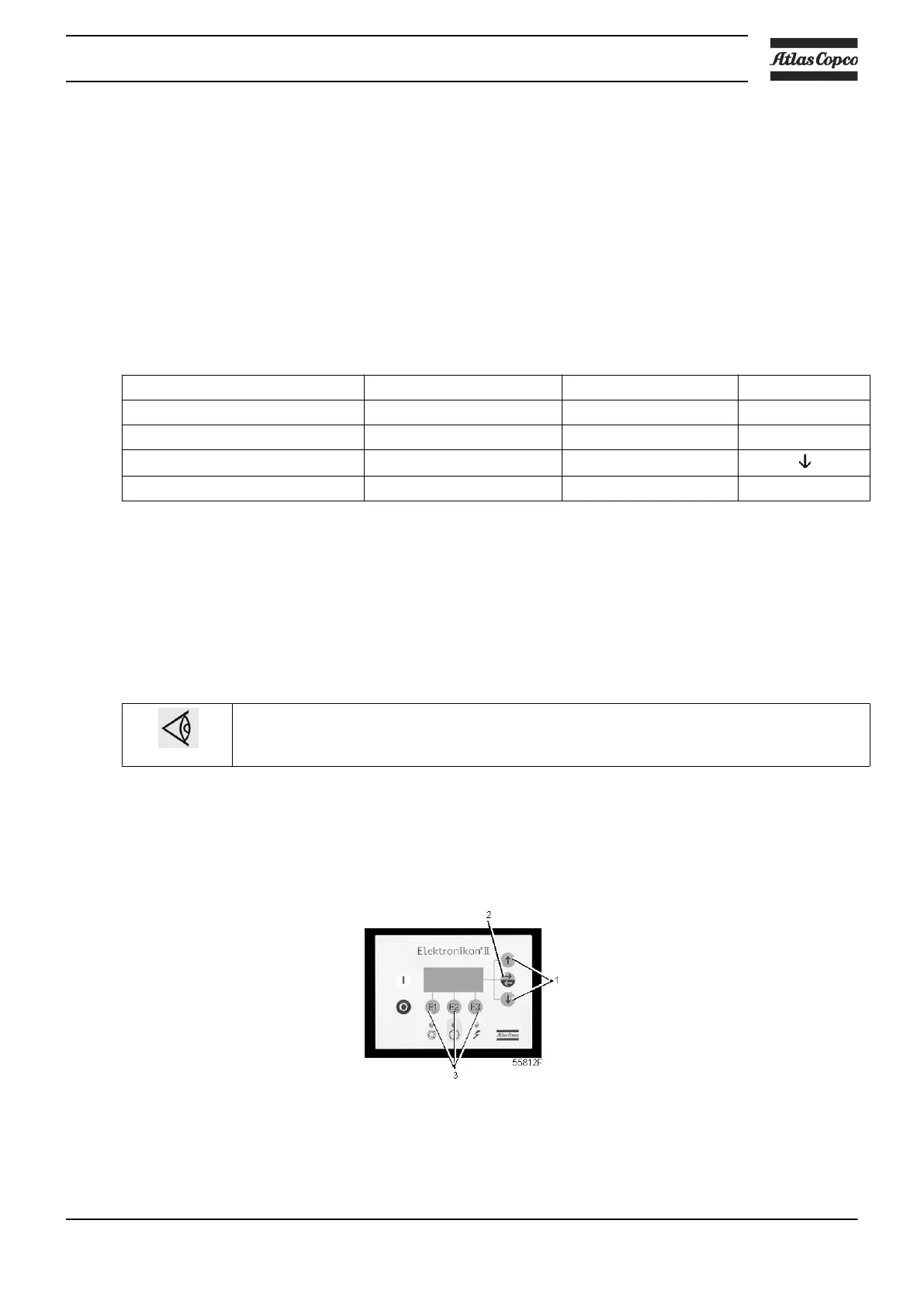

3.14 Modifying parameters
Control panel
Function
To modify a number of parameters. Consult the menu flow in section Control programs.
Instruction book
API161475 29
