Reference Designation
8 Dryer air inlet (Workplace Full-Feature only)
9 Compressed air outlet
10 Compressor and motor cooling air inlet
11 Cubicle air inlet
12 Weight
4.2 Installation proposal
Outdoor/altitude operation
Compressors controlled with frequency converters (VSD) are intended to be installed
indoors only, with adequate ventilation and filtration to limit the dust load from the
environment. If such a compressor is to be installed in an application where conductive
dust is present, the appropriate measures should be taken in either the installation or
adaptation of the machine. Please contact Atlas Copco. The rain protection option is not
foreseen for frequency converter driven compressors.
If the compressor is installed where the ambient temperature can be below 0 ˚C (32 ˚F),
precautions must be taken. In this case, and also if operating above 1000 m (3300 ft), consult
Atlas Copco.

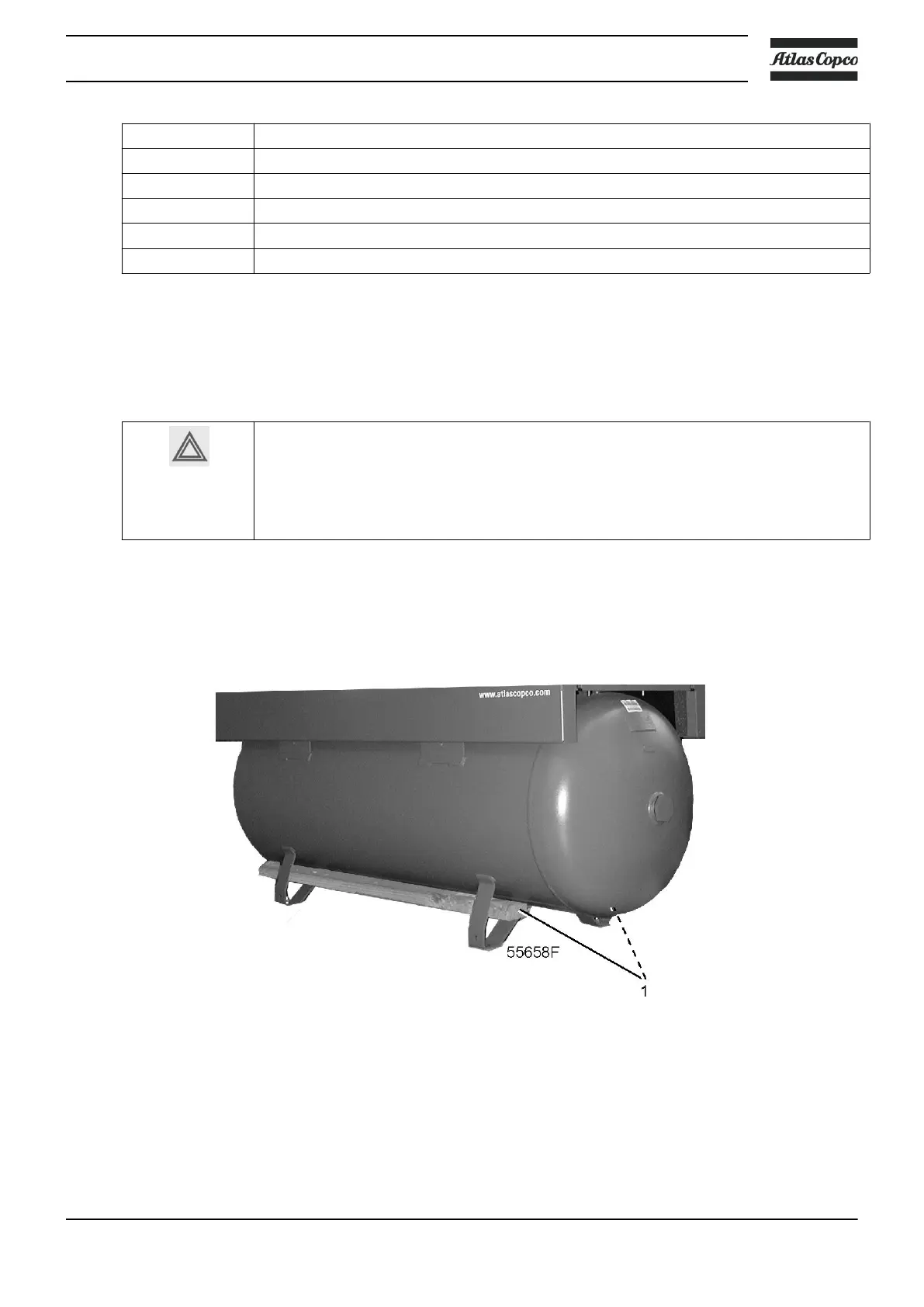

Moving the compressor
Transport by pallet truck
Instruction book
API161475 45
