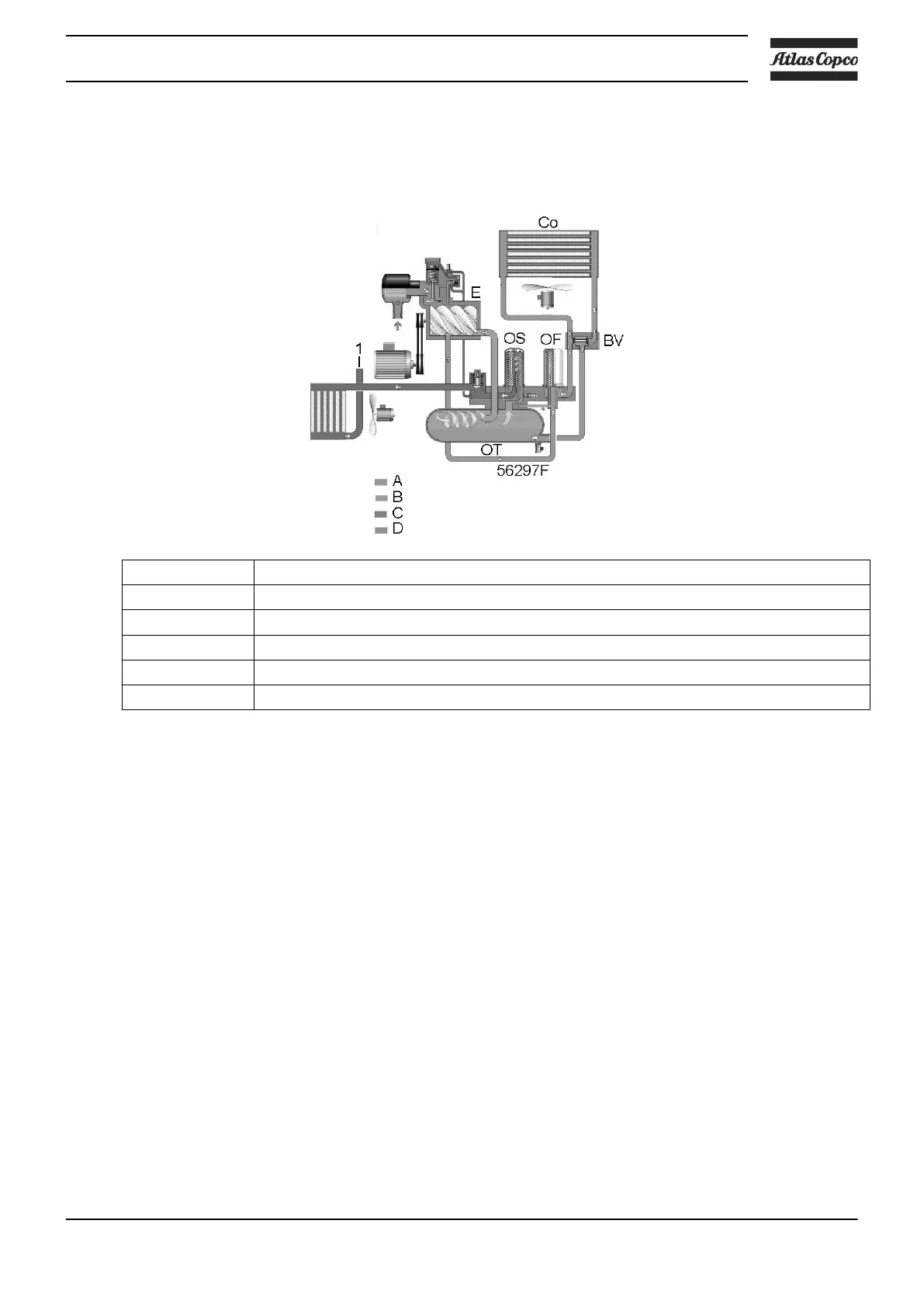

2.3 Oil circuit
Flow diagram
References Description
1 For Workplace units, compressed air flow to the air outlet valve
A Air inlet
B Compressed air/oil
C Compressed air
D Oil
Description
The oil system is provided with a thermostatic bypass valve (BV). When the oil is cold, the oil
cooler is bypassed.
Air pressure forces the oil from oil separator vessel (OT) through the oil cooler and the oil filter
(OF) to compressor element (E). In the oil separator vessel, most of the oil is removed
centrifugally; the rest is removed by oil separator (OS).
Instruction book
API161475 13
