2.4 Cooling system

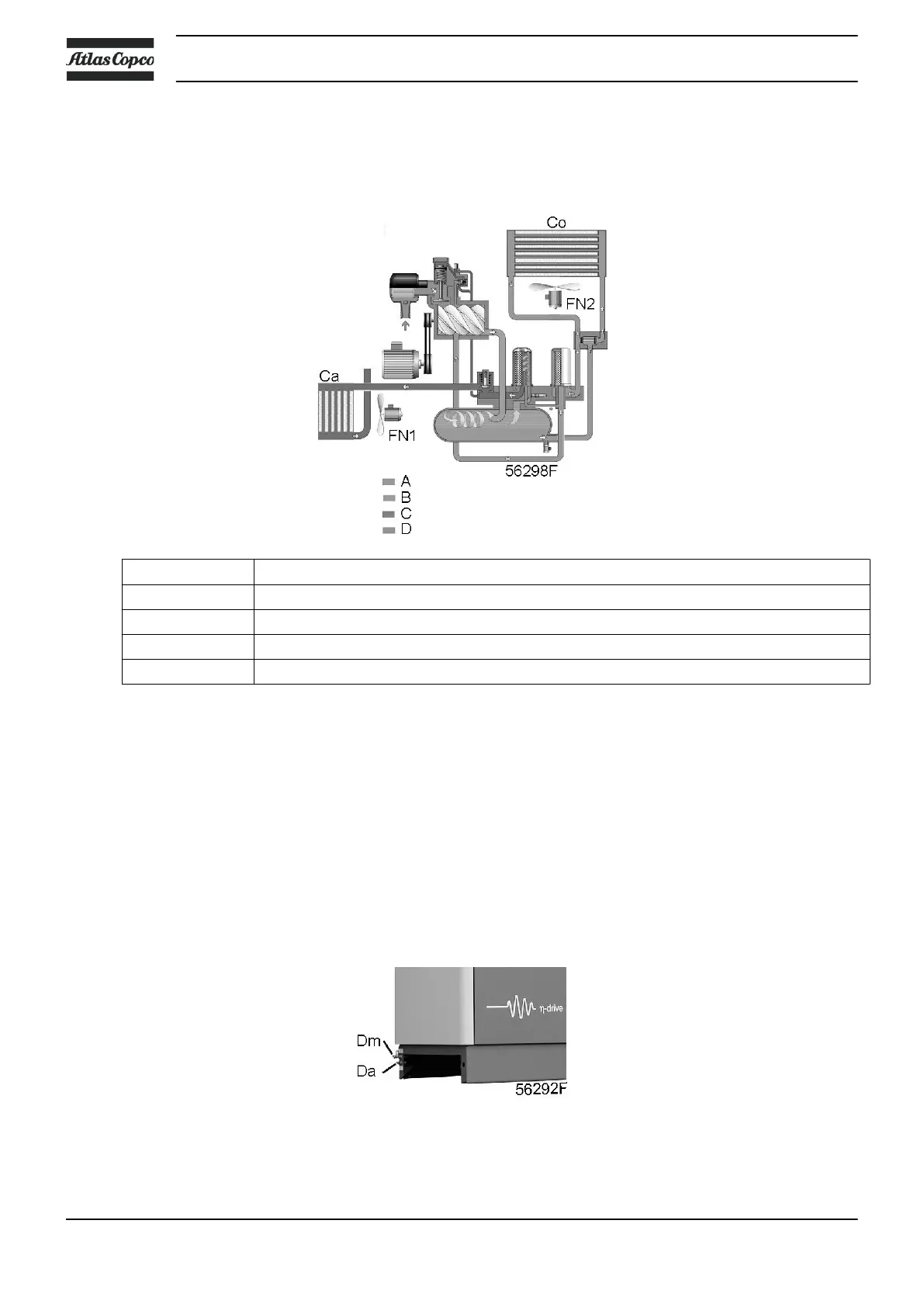

Flow diagram
References Description
A Air inlet
B Compressed air/oil
C Compressed air
D Oil
Description
The cooling system comprises air cooler (Ca) and oil cooler (Co). The cooling air is generated by
fans (FN1 and FN2). The fan of the air system (FN1) runs continuously during operation of the
unit. The fan of the oil system is controlled by the Elektronikon regulator. The regulator stops the
fan (FN2) to warm up the oil to an optimum in relation to the measured ambient temperature.
