Procedure
Starting from the Main screen (see section Main screen menu):
• Press the key ‘Menu’ (F1).
• Press the arrow down key (1) until ‘Counters’ is followed by a horizontal arrow.
• Press the tabulator key (2) to activate the menu.
• By pressing the arrow key (1), the above-mentioned data can be found.
Calling up the accumulated volume
‘Accumulated vol’
‘1000 m
3
’
230
.
‘Menu’ ‘Mod.’
F1 F2 F3
• Consult the Procedure above to select ‘Accumulated vol’.
• In the example above, the display indicates that the compressor has delivered 230 x 1000
m
3
If it should be required to modify the value of the indicated timer, consult Atlas Copco.
3.11 Test menu

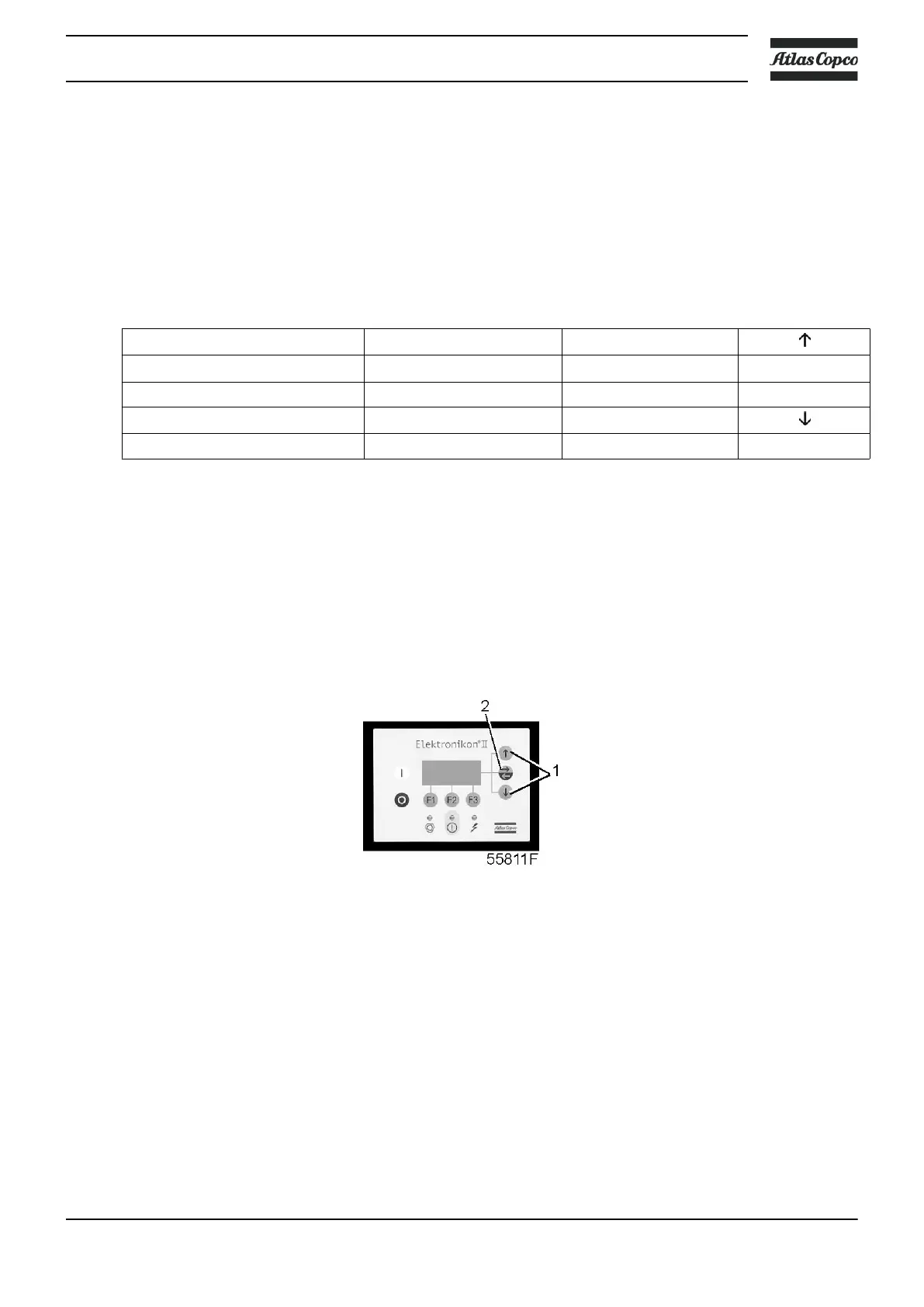

Control panel
Function
To carry out a display test, i.e. to check whether the display and LEDs are still intact.
To run the regreasing program
Procedure
Starting from the Main screen (see Main screen menu):
• Press the key ‘Menu’ (F1).
• Press arrow down key (1) until ‘Test’ is followed by a horizontal arrow.
• Activate the menu by pressing the key (2).
• The option ‘Display test’ will be followed by a horizontal arrow.
Instruction book
API161475 27
