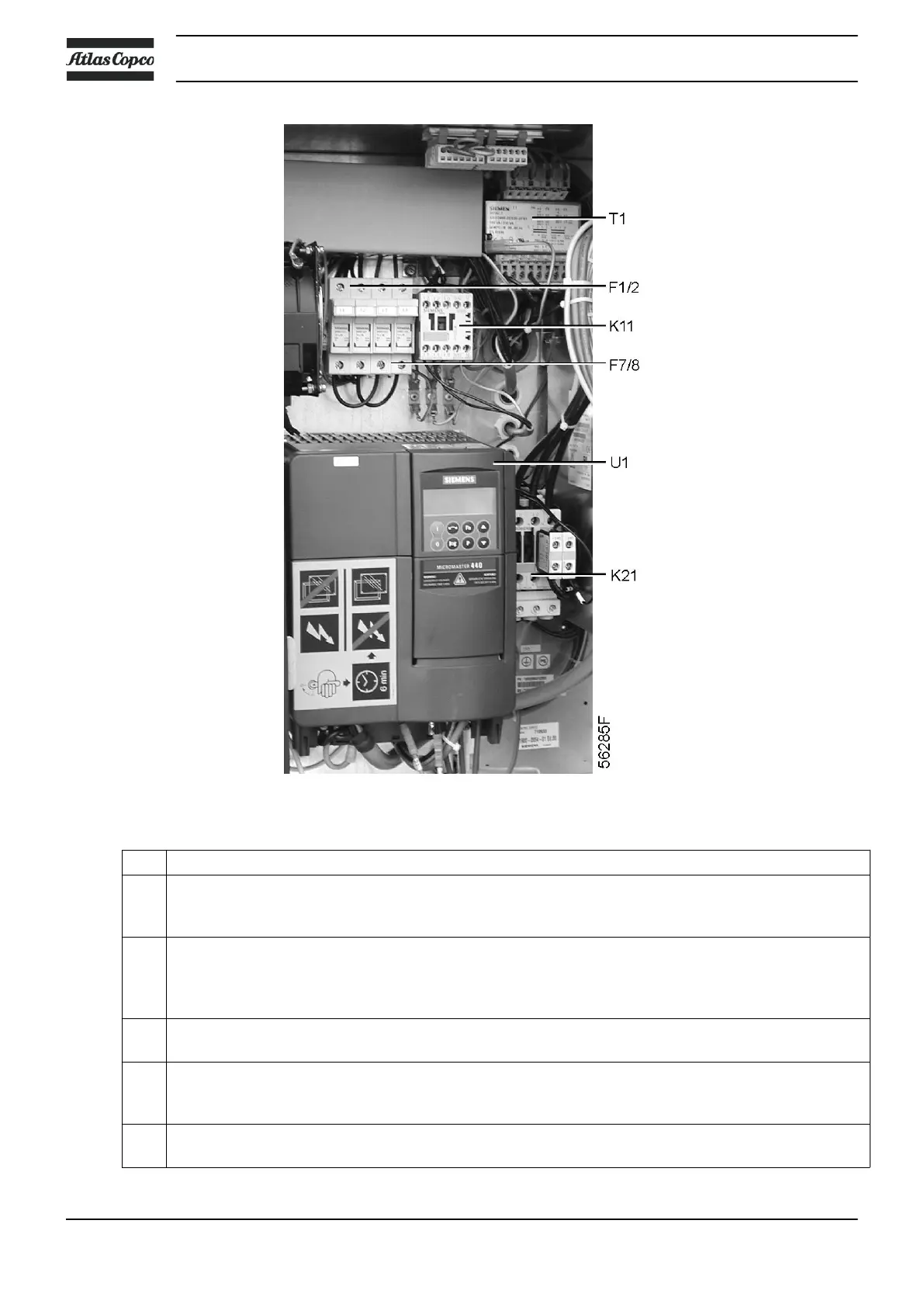

Electric cabinet, typical example
- Consult the sections Electric cable size, Installation proposal and Dimension drawings.
- The following transport fixtures, painted red, must be removed:
• Bolts (1)
• Bushes (2)
- Check that the electrical connections correspond to the local codes and that all wires are clamped
tight to their terminals.
The installation must be earthed and protected against short circuits by fuses of the inert type in all
phases. An isolating switch must be installed near the compressor.
- Check the voltage selecting wires at the primary side of transformers:
• T1
- Fit the air outlet valve (AV); see section Introduction for the position of the valve.
Close the valve.
Connect the air net to the valve.
- Fit the manual condensate drain valve (Dm).
Close the valve.
Instruction book
54 API161475
