Procedure

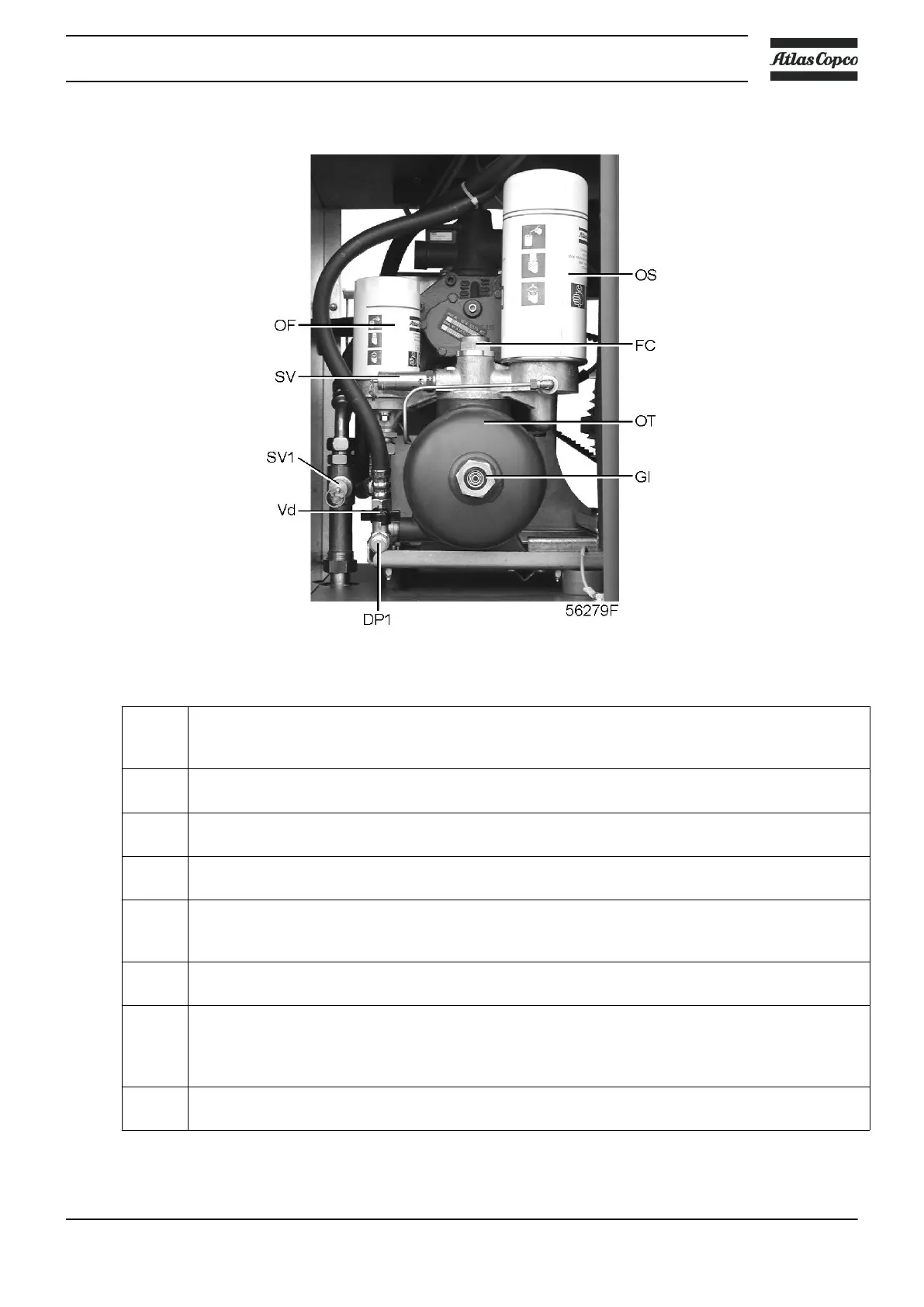

Oil system components
- Run the compressor until warm. Stop the compressor after 3 minutes of running at minimum
speed. Close the air outlet valve and switch off the voltage. Wait a few minutes and depressurise
by unscrewing oil filler plug (FC) just one turn to permit any pressure in the system to escape.
- Remove oil drain plug (DP1). Drain the oil by opening valve (Vd). Close the valve and fit the plug
after draining.
- Collect the oil in a collector and deliver it to the local collection service. Refit and tighten the drain
plug after draining.
- Remove the oil filter (OF). Clean the seat on the manifold. Oil the gasket of the new filter and
screw it into place. Tighten firmly by hand.
- Remove filler plug (FC).
Fill the oil tank (OT) with oil until the level reaches the middle of sight-glass (Gl).
Take care that no dirt drops into the system. Refit and tighten filler plug (FC).
- Run the compressor at minimum speed for a few minutes. Stop the compressor and wait a few
minutes to allow the oil to settle.
- Depressurise the system by unscrewing filler plug (FC) just one turn to permit any pressure in the
system to escape. Remove the plug.
Fill the oil tank with oil until the sight-glass (Gl) is 3/4 full.
Tighten the filler plug.
- Reset the service timer after carrying out all service actions in the relevant ‘Service Plan’, reset
the service warning; see section Service menu
