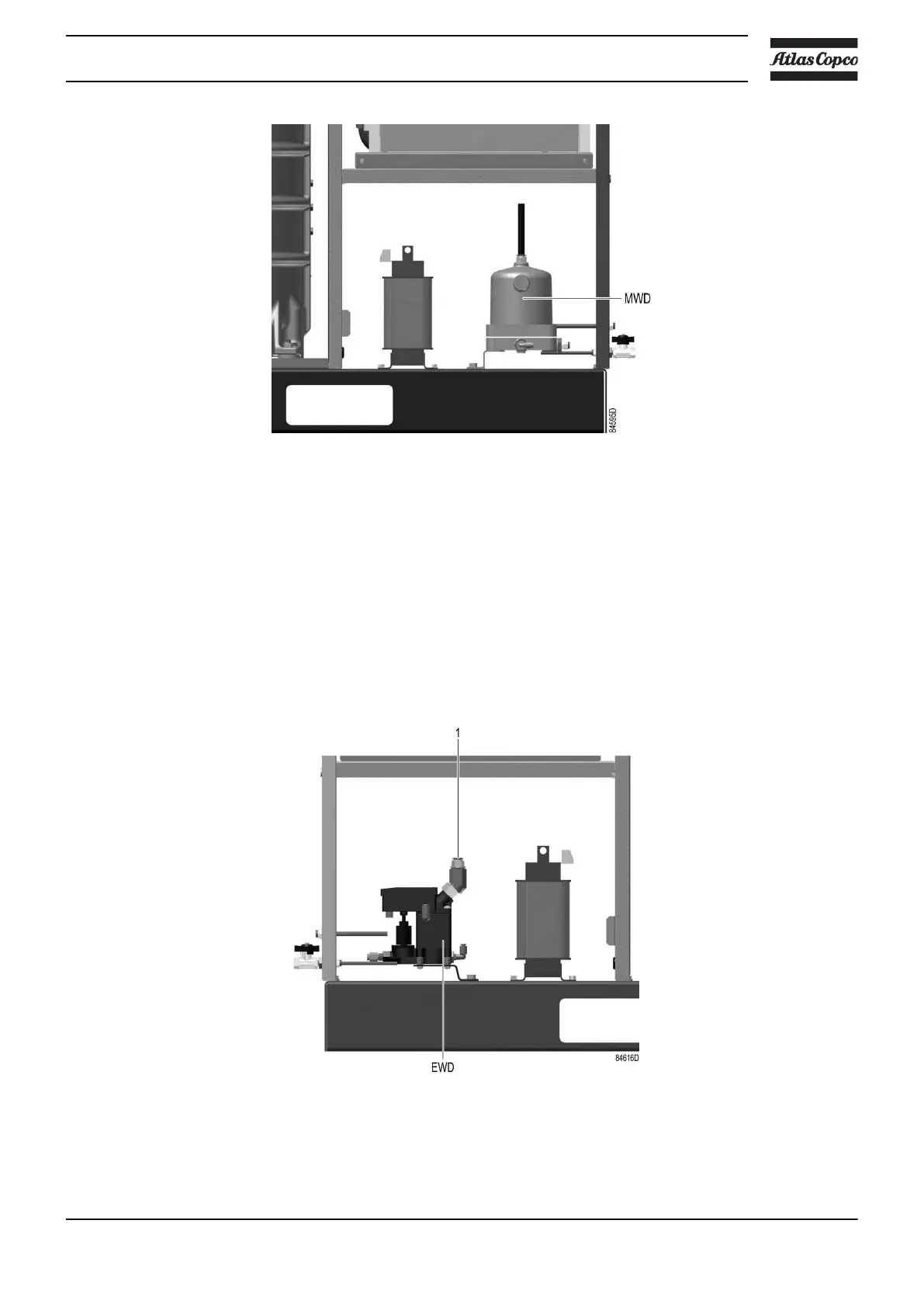

Mechanical condensate drain
A float opens or closes the outlet dependant on the level of the condensate in the bowl.
Electronic drains
The GA 30
+
Pack has an electronic water drain (EWD). On Full-Feature GA 30
+
compressors, an
additional electronic water drain is provided.
The condensate accumulates in the collector of the drain. When the condensate reaches a certain level, it is
discharged through the automatic drain outlet (Da).
Testing the electronic water drain can be done by briefly pressing the test button (1) on top of the drain.
Electronic condensate drains
Instruction book
2920 7180 30 21
