Reference Designation Function
3 LED, Automatic operation Indicates that the regulator is automatically controlling
the compressor: the compressor is loaded, unloaded,
stopped and restarted depending on the air
consumption and the limitations programmed in the
regulator.
4 Warning symbol
5 LED, Warning Is lit if a warning condition exists.
6 Voltage symbol
7 LED, Voltage on Indicates that the voltage is switched on.
8 Service symbol
9 LED, Service Is lit when service is needed.
10 Start button This button starts the compressor. Automatic operation
LED (3) lights up. The Elektronikon is operative.
11 Stop button This button is used to stop the compressor. Automatic
operation LED (3) goes out.
12 Scroll buttons Use these buttons to scroll through the menu.
13 Enter button Use this button to confirm the last action.
14 Escape button Use this button to go to previous screen or to end the
current action.

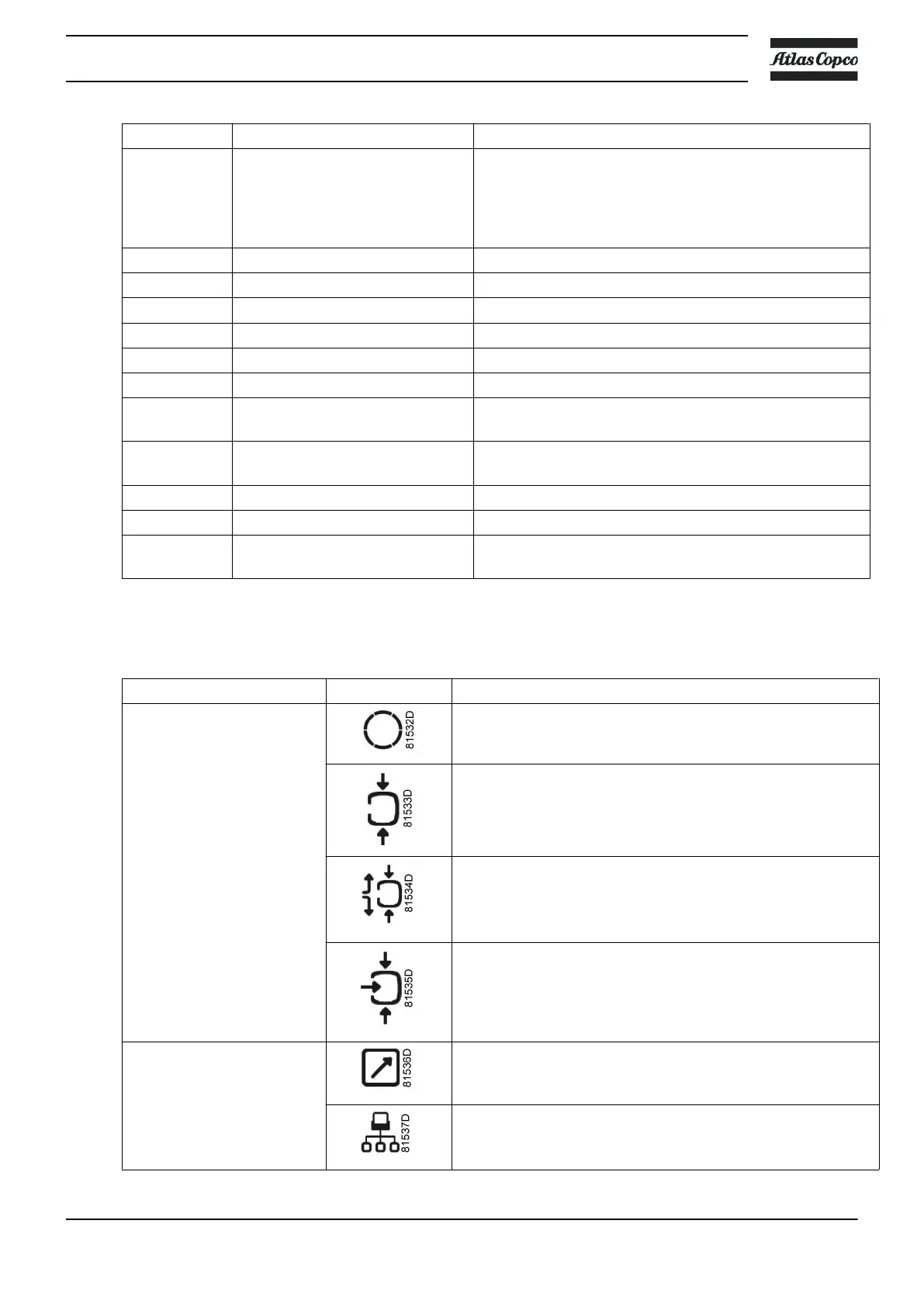

3.3 Icons used on the display
Function Icon Description
Compressor status When the compressor is stopped, the icon stands still.
When the compressor is running, the icon is rotating.
Motor stopped
Running unloaded
Running loaded
Machine control mode Remote start / stop
LAN control
Instruction book
2920 7180 30 29
