IF THIS INDICATOR LIGHT COMES ON AND AN AUDIBLE SIGNAL SOUNDS WHEN
THE WORK PLATFORM IS ELEVATED, IMMEDIATELY RETURN THE PLATFORM TO
ITS LOWERED POSITION, THEN LEVEL THE MACHINE BEFORE RAISING THE
PLATFORM AGAIN.

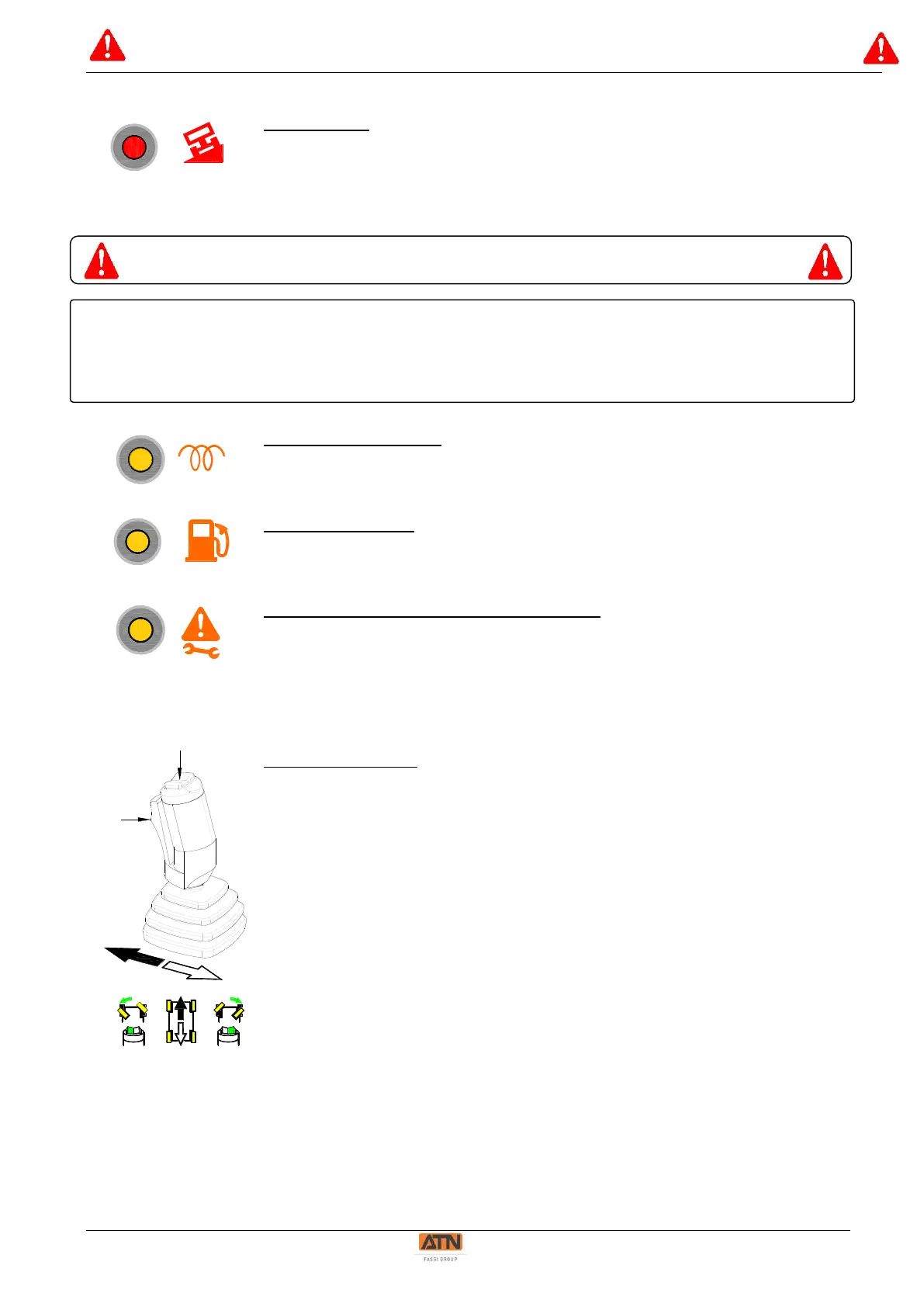

Tilt indicator:
This indicator light flashes when the outriggers are in motion.
This indicator light comes on steady when the machine is on a slope
exceeding the authorised value or the chassis tilted beyond the authorised
value. See Section 5 - Safety systems.
Pre-heating indicator:
This indicator comes on during the engine pre-heating phase and goes out
once the engine has started.
Low fuel indicator:
This indicator comes on when the fuel level in the tank has reached a
critical level: fill the fuel tank.
"System Status" / Maintenance indicator:
This indicator flashes slowly when a prescheduled maintenance/servicing
operation is required.
This indicator light comes on steady when a control system or an engine
malfunction is detected.
See Section 4.2.3 - Engine safety systems.
Joystick controller:
The joystick controls all machine movements. The speed of the
movements is proportionally controlled by the distance of travel of the
joystick.
The joystick features an enable trigger (1) that must be depressed and
held to activate a movement.
A rocker switch (2) on top of the joystick controls the steering of the
wheels.
Black and white directional arrows near the joystick and on the pictograms
of the various commands allow the operator to identify the direction of the
movement in relation to the direction of the joystick movement. For drive
movements, the black and white arrows are also located on the toe boards
of the work platform: actuate the joystick in the direction indicated by the
arrow corresponding to the desired direction.
