OPERATOR AND SAFETY MANUAL

1NO0031EN-08

CX 12 - CX 15

11- Hydraulic oil temperature.

12- Transmission system pressure.

13- Access to the Maintenance / Diagnostic menu (See § 8.2.5)

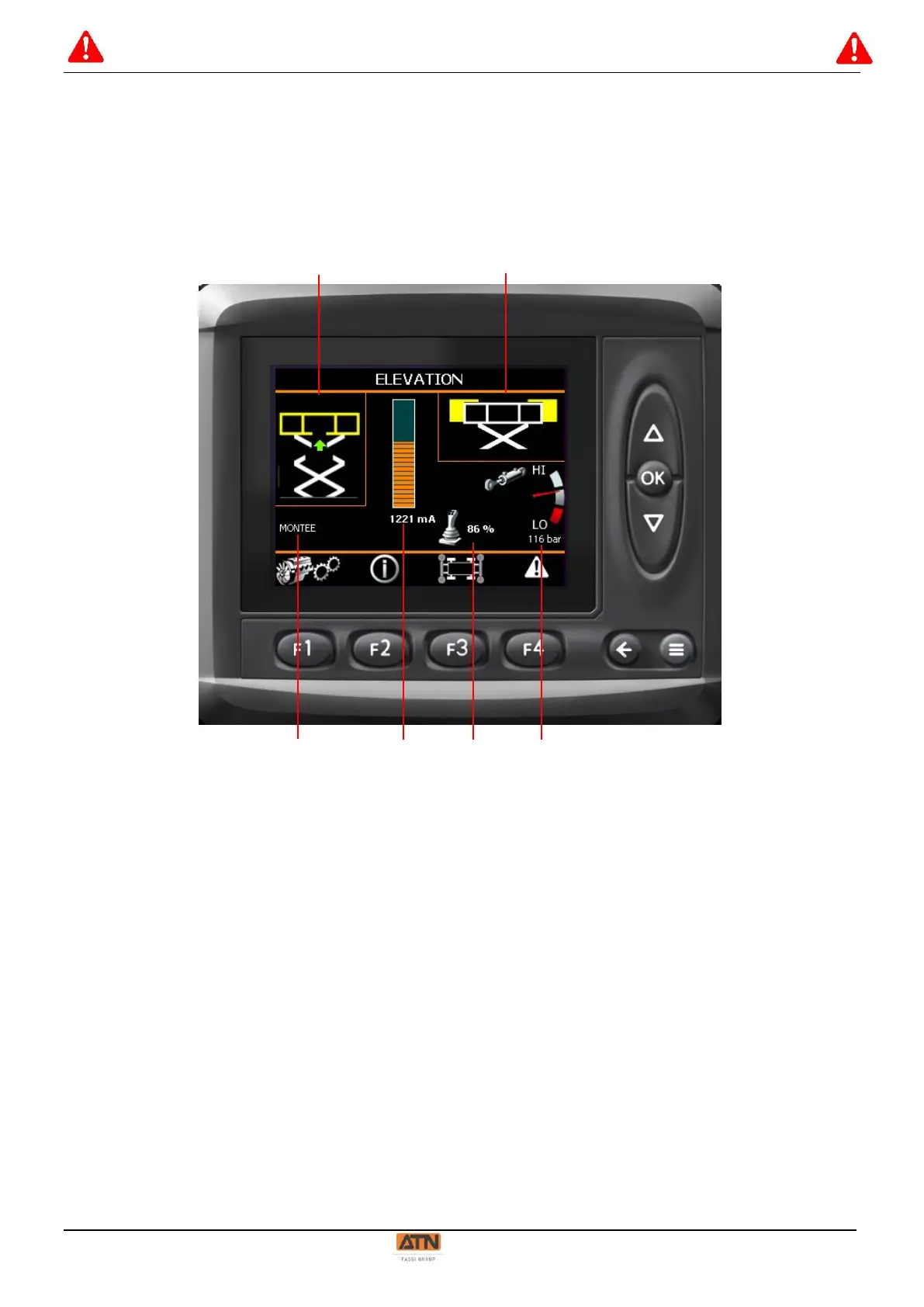

8.2.2 ELEVATION (F2)

1- Position/Movements of the elevating structure.

2- Movements of deck extensions (Option).

3- Indication - Movement in progress.

4- Pilot value of the proportional flow control valve.

5- Pilot instruction of the proportional flow control valve.

6- Hydraulic system pressure.

(1)

(2)

(6)

(5)

(4)

(3)
