ATN CX 12 User Manual

OPERATOR AND SAFETY MANUAL
1NO0031EN-08
CX 12 - CX 15
49

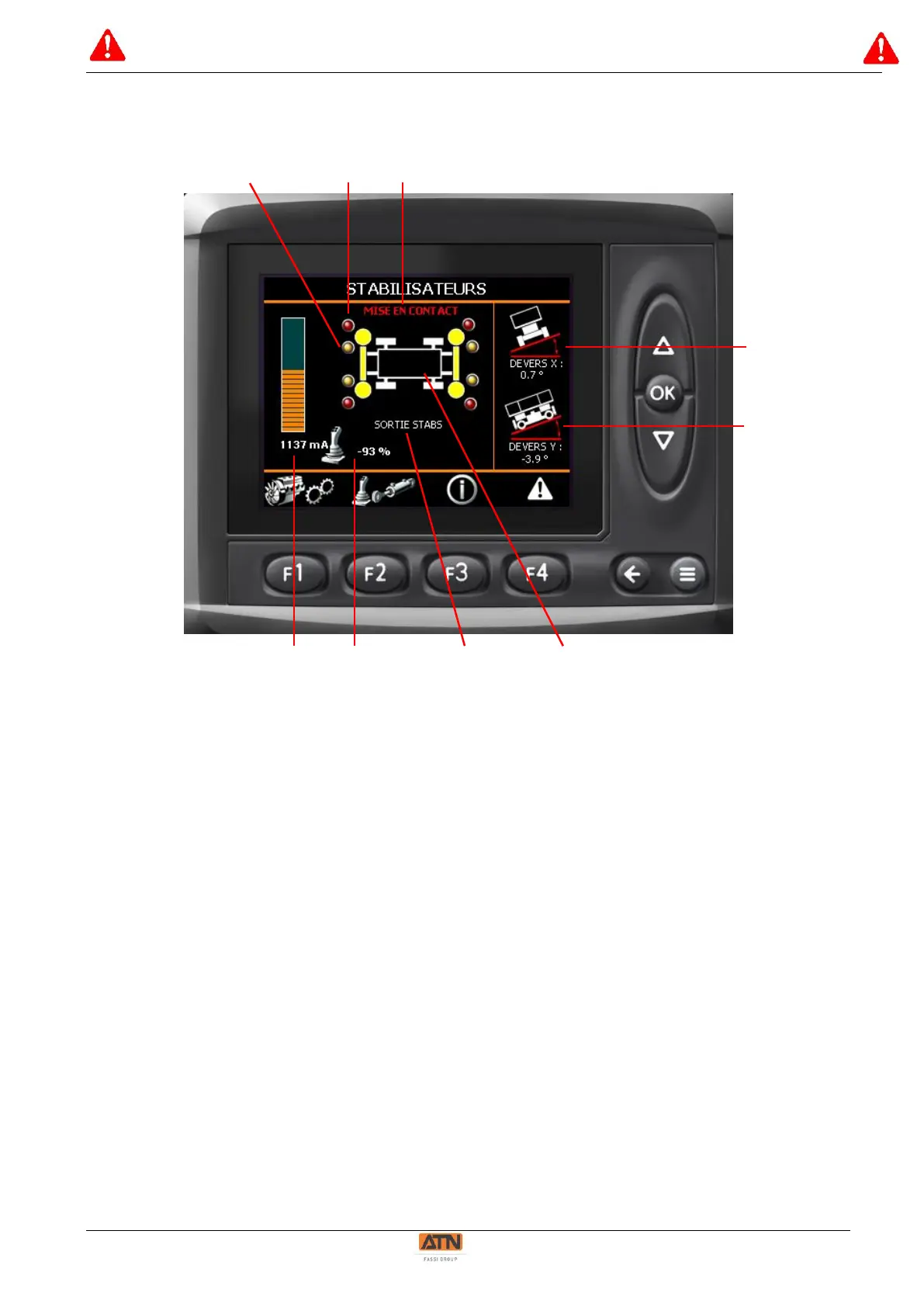

8.2.3 OUTRIGGERS (F3)
1- Pilot value of the proportional flow control valve.
2- Pilot instruction of the proportional flow control valve.
3- Indication - Movement in progress.
4- Mode selected: Auto / Manual
5- Indication - Contact with ground in progress.
6- Position of the outriggers.
- Red indicator: ground contact not established
- Green indicator: ground contact established
- Indicator off: outrigger fully retracted
7- Outrigger controlled.
8- Tilt value.
9- Grade value.
(1)
(2)
(3)
(4)
(8)
(9)
(7)
(6)
(5)
AUTO
MANU
